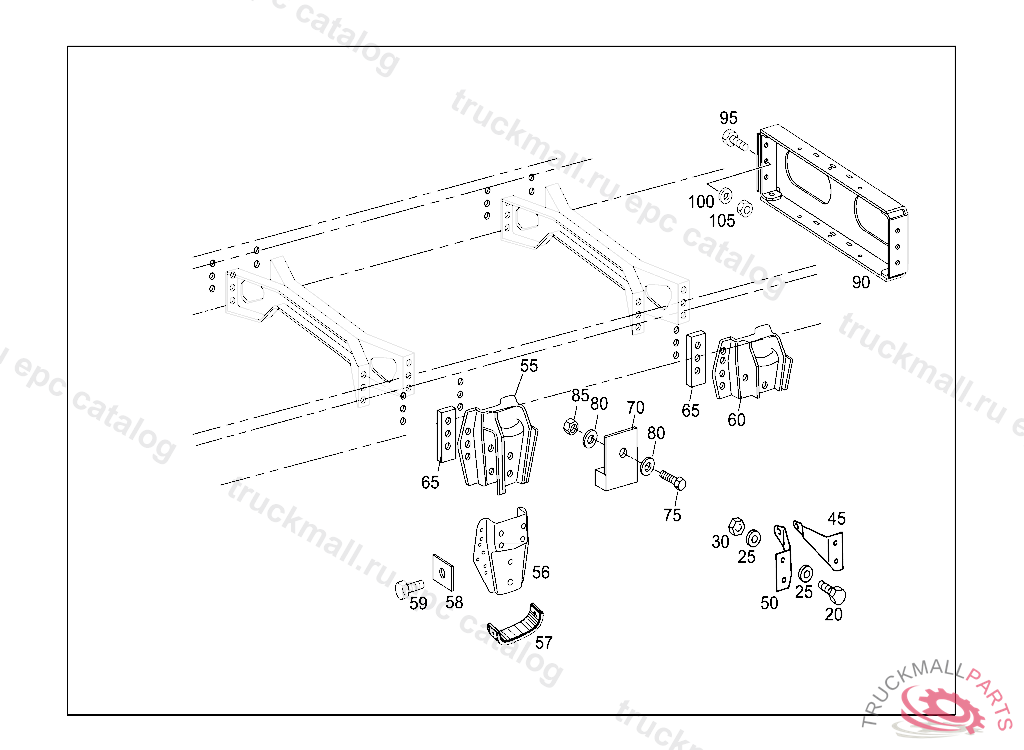

Поз.
Артикул
Описание
20
PART NAME MISSING BATTERY CASE TO FRAME PARAFUSO
20
SCREW BUFFER TO FRAME 5/8-11
20
SCREW3/4-10
25
WASHER5/8-1.312-.149 Z
25
WASHER FRONT SPRINGS TO FRONT AXLE 3/4
25
PART NAME MISSING CONSOLE TO FRAME 1/2
30
NUT5/8-11,M 026123
30
NUT3/4
30
PART NAME MISSING CONSOLE TO FRAME 1/2 -13
45
50
55
SPRING BRACKET REAR SPRING FRONT BRACKET
56
BRACKET REAR SPRING FRONT BRACKET
57
STIFFENING REAR SPRING FRONT BRACKET
58
FASTENING PLATE REAR SPRING FRONT BRACKET
59
PART NAME MISSING REAR SPRING FRONT BRACKET
60
SPRING BRACKET REAR-SPRING REAR BRACKET
65
PLATE SPRING BRACKET TO SIDE MEMBER
70
RUBBER BUFFER
70
RUBBER BUFFER
75
SCREW BUFFER TO FRAME 5/8-11
80
WASHER5/8-1.312-.149 Z
85
NUT5/8-11,M 026123
