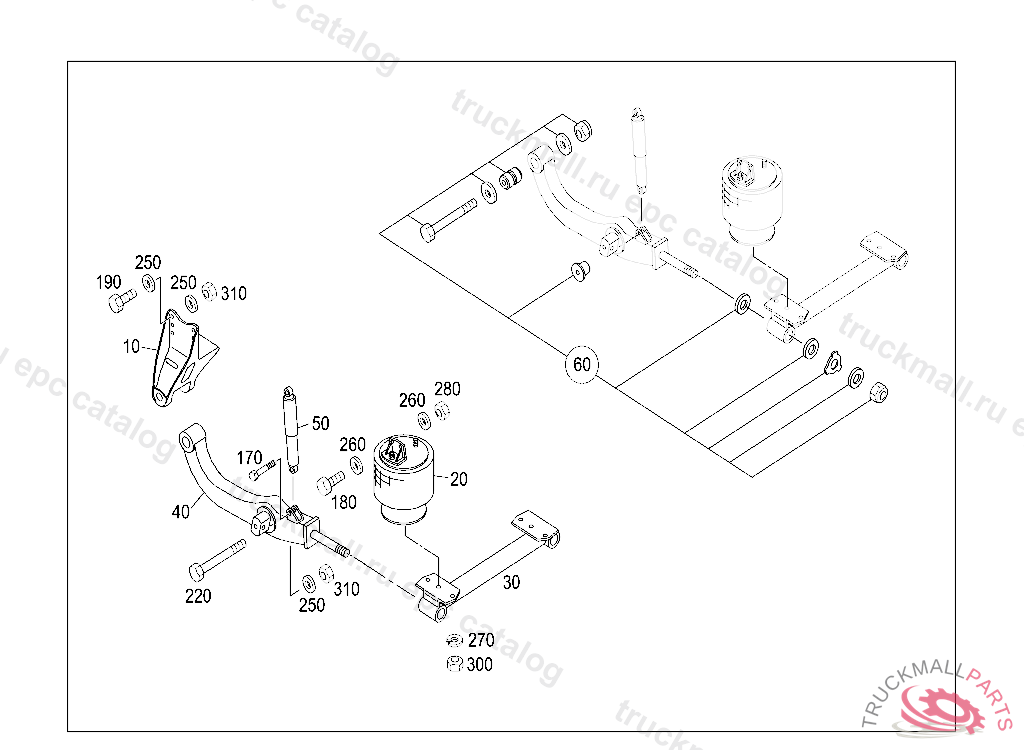

MBO 1419 - 685.294 - 32 SPRINGS AND SUSPENSION
Поз.
Артикул
Описание
10
10
20
30
SUPPORT AIR SPRING BELLOWS NEW 90546255
40
SUPPORT RIGHT NEW 90516740
40
SUPPORT LEFT NEW 90516741
50
SHOCK ABSORBER , M 006873
60
BRACKET REPAIR KIT
170
SCREW SHOCK ABSORBER TO BRACKET 3/4-10, M 006873
180
STUD FRONT SPRING REAR BRACKET TO SIDE MEMBER 5/8-11
190
STUD3/4-10X2,75
220
SCREW3/4-10X3,5
220
SCREW3/4-10
250
WASHER FRONT SPRINGS TO FRONT AXLE 3/4
260
WASHER5/8-1.312-.149 Z
270
LOCK WASHER1/2
280
NUT5/8-11,M 026123
300
NUT1/2-13
310
NUT3/4
999
PLATE
