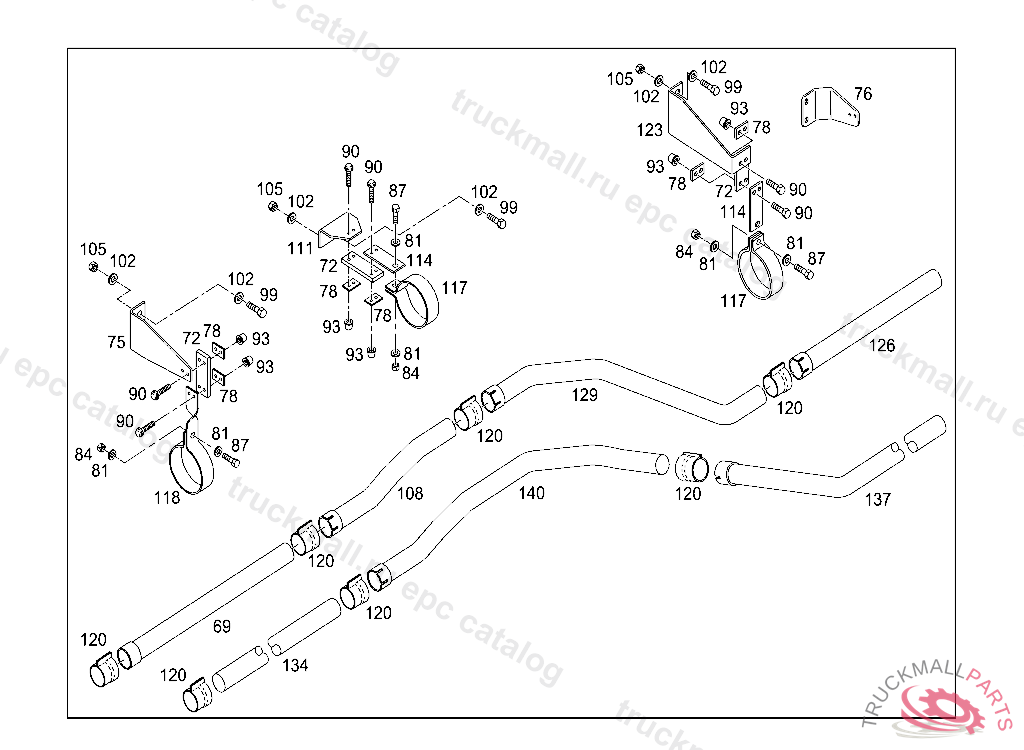

MBO 1419 - 685.294 - 49 EXHAUST SYSTEM
Поз.
Артикул
Описание
69
72
RUBBER PAD
75
BRACKET
75
76
BRACKET EXHAUST PIPE BRACKET TO SIDE MEMBER,M 006540
78
PLATE
81
WASHER SHIFTING ROD 3/8
84
84
NUT. PART NAME MISSING NUT
87
SCREW3/8-16,M 006540
90
SCREW SELF-LOCKING 1/4X56-1,25
93
NUT SELF-LOCKING 1/4
99
PART NAME MISSING BATTERY CASE TO FRAME PARAFUSO
102
PART NAME MISSING CONSOLE TO FRAME 1/2
102
WASHER
105
PART NAME MISSING CONSOLE TO FRAME 1/2 -13
108
111
111
114
PLATE EXHAUST PIPE BRACKET TO SIDE MEMBER,M 006540
114
117
PIPE CLAMP
118
PIPE CLAMP
120
120
PIPE CLAMP4"
123
126
129
134
137
140
140
