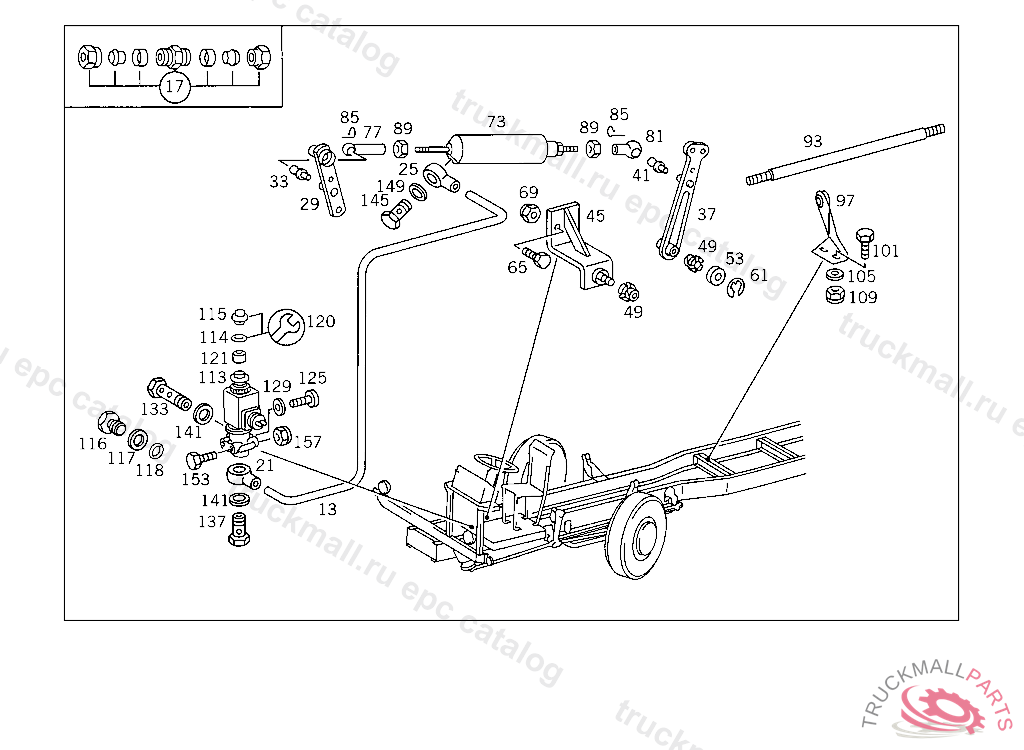

Поз.
Артикул
Описание
13
PLASTIC PIPE AERATION, ORDER BY THE METER
13
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
17
FITTING , Replaced By: A0029905971
17
FITTING (PARTS KIT),LINE RUPTURE
25
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
29
LEVER CONTROL
29
LEVER , Replaced By: A3963000725, +001N071803013207
33
BALL PIVOT BOTTOM B13X5 MM
37
LEVER (INTERMEDIATE LEVER)
41
BALL PIVOT BOTTOM B13X5 MM
45
BRACKET INTERMEDIATE LEVER
49
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
53
COVERING INTERMEDIATE BEARING
61
LOCK PLATE INTERMEDIATE BEARING
65
SCREW , Replaced By: N304017008034
65
SCREW BRACKET TO CROSS CONNECTION STRUT
69
NUT , Replaced By: N913004008001
73
WHEEL BRAKE CYLINDER
77
BALL SOCKET ROD TO BALL PIVOT
81
BALL SOCKET ROD TO BALL PIVOT
85
SECURING CLIP. CIRCLIP
89
NUT , Replaced By: N304032008006
93
ROD INTERMEDIATE LEVER
93
ROD INTERMEDIATE LEVER
97
BRACKET ON ROD: NO.1
101
SCREW , Replaced By: N304017008021
105
WASHER EXHAUST MUFFLER TO STRAP
105
WASHER , Replaced By: N000125008443
109
NUT , Replaced By: N913004008001
113
VALVE (3/2-WAY SOLENOID VALVE) KNORR
113
VALVE (SOLENOID VALVE),078418
113
VALVE (SOLENOID VALVE)
113
VALVE , Replaced By: A0049975736
114
SEAL RINGWABCO
115
PROTECTIVE CAPWABCO
116
SCREW PLUGROCKINGER,TYP 59 U150
116
SCREW PLUGROCKINGER TYP 59 G140,59 G150, Replaced By: N007604012105
117
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
118
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "40"
120
REPAIR KITTO 003 997 14 36,WABCO 472 123 19 80
121
SEAL RING VALVE TO VALVE
125
SCREW TO PLUG THE FREE CONNECTIONS
129
SEAL RINGBOSCH
133
HOLLOW SCREW LINE CONNECTION
137
HOLLOW SCREW HEATING CONNECTION
141
SEAL RING LINE CONNECTION
145
HOLLOW SCREW HEATING CONNECTION
149
SEAL RING LINE CONNECTION
153
SCREW PLUG SOCKET TO BRACKET BEHIND CAB
153
SCREW FRONT AXLE REGULATING SOLENOID VALVE
153
SCREW , Replaced By: N304014008007
157
NUT , Replaced By: N913004008001
999
SWITCH (FOOT-OPERATED SWITCH),5 220372
999
BRACKET SWITCH TO FLOOR PLATE,5 220373
999
SWITCH (FOOT-OPERATED SWITCH),5 220373
999
GASKET KITKNORR
999
PIPE SOCKET COMPRESSED AIR PIPING TO 3/2-WAY VALVE
999
BRACKET ON ROD: NO.1
999
LEVER (INTERMEDIATE LEVER)
999
SCREW SWITCH TO FLOOR PLATE M6X16,5 220373
999
BALL STUD. BALL PIVOT TOP B10X4,5 MM
999
BALL PIVOT
999
PULL ROD FROM INTERMEDIATE LEVER TO ENGINE,4 431948
999
PULL ROD FROM TURNBUCKLE TO INTERMEDIATE LEVER
999
NUT COMPRESSED AIR LINE TO LEFT SIDE MEMBER
999
NUT , Replaced By: N910113006001
