Поз.
Артикул
Описание
10

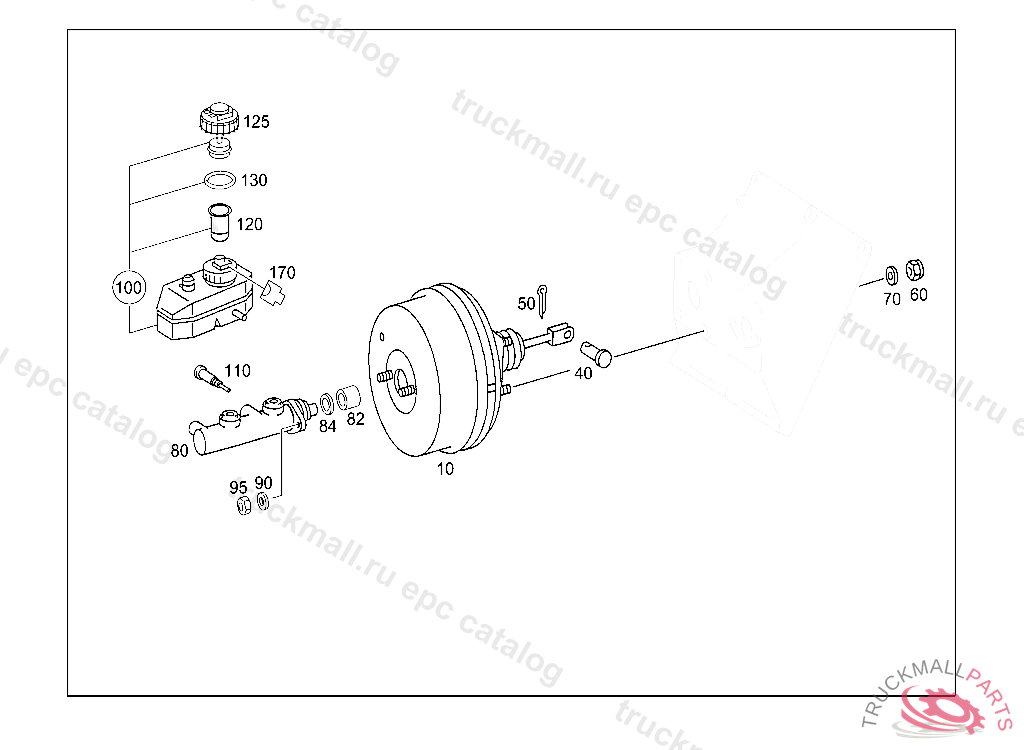

BRAKE BOOSTER ASSEMBLYTO A 001 430 15 08
40
PIN LEVER TO ROD
40
PEDAL HINGE PIN BRAKE BOOSTER ASSEMBLY TO PEDAL, X 19620920111222
50
COTTER PIN LEVER TO ROD
60
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
70
WASHER PUMP TO CONSOLE
80
BRAKE MASTER CYLINDER
80
BRAKE MASTER CYLINDER
82
BUSHINGTO A 004 430 98 01
82
BUSHING
84
SEAL RING MASTER CYLINDER TO BRAKE BOOSTER
84
SEAL RING
90
WASHER PUMP TO CONSOLE
95
NUT MASTER BRAKE CYLINDER AT BRAKE BOOSTER
95
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
100
DASHPOT
100
DASHPOTTO A 001 430 15 08
110
TRUNNION SCREW RESERVOIR TO MASTER CYLINDER
125
COVER
170
PIN BUSHING HOUSING PIN BUSHING 5.3 MM
