Поз.
Артикул
Описание

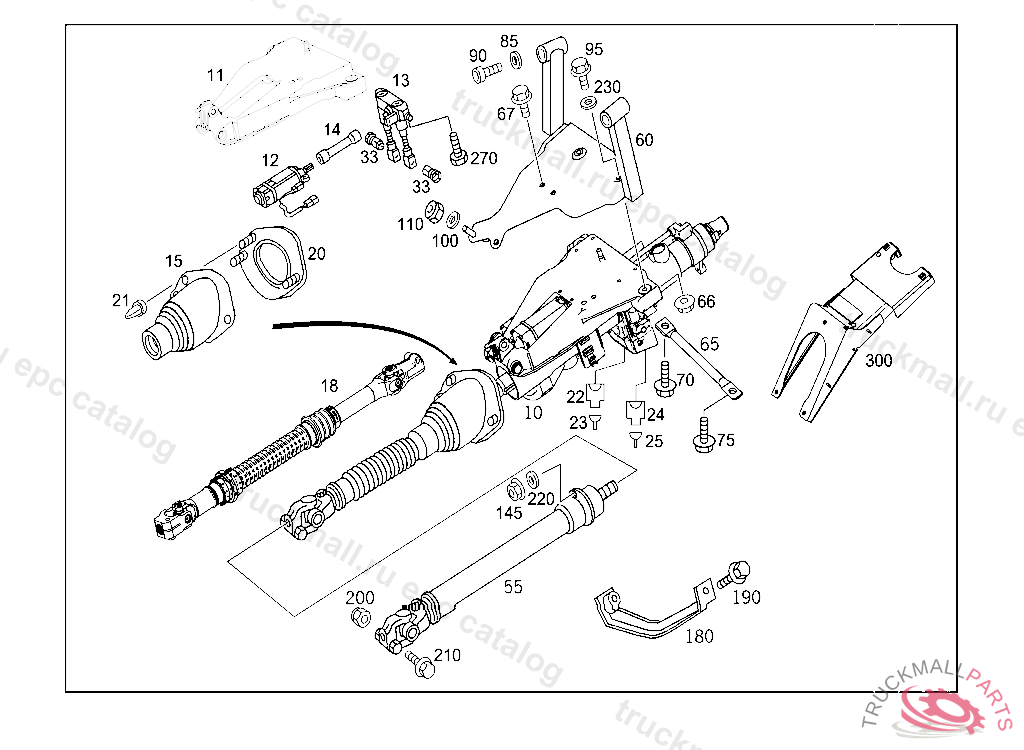

10
STEERING COLUMN
10
STEER. COLUMN JACKET TUBE ELECTRICALLY ADJUSTABLE, X 16753820060929
11
CONSOLE , A 17199120010514802 E 02000020070101802
12
ELECTRIC MOTOR , A 843747 X 019420 EXEPT ON VEHICULES WITHOUT CODE 059 EXCEPT FOR X 010297
13
TRANSMISSION HEIGHT ADJUSTMENT
14
COUPLING COLLAR BETWEEN ELETRIC MOTOR AND TRANSMISSION
15
BOOT ,139324
18
STEERING SHAFT , 20101222 X 20407820121031
20
RING LOWER STEERING SHAFT TO UPPER STEERING SHAFT
21
TREENAIL
22
PLUG HOUSING. PIN BUSHING HOUSING STEERING COLUMN ELECTRICALLY ADJUSTABLE 4-POLIG, A 843748 X 019421
23
CONTACT SPRINGTO A 038 545 76 28
24
PIN BUSHING HOUSING STEERING COLUMN ELECTRICALLY ADJUSTABLE 4-POLIG, A 843748 X 019421
25
CONTACT SPRINGTO A 038 545 76 28
33
BUSHING STEERING COLUMN JACKET TUBE TO CONSOLE, A 843747 X 019420 EXEPT ON VEHICULES WITHOUT CODE 059 EXCEPT FOR X 010297
55
STEERING SHAFT
60
BRACKET STEERING SHAFT
65
SPACER TUBE STEER. COLUMN JACKET TUBE
66
NUT HORN TO BRACKET M8
66
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
67
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
70
HEXALOBULAR BOLT BRACKET MOUNTING M8X16,V 207570
75
HEXALOBULAR BOLT BRACKET MOUNTING M8X16,V 207570
85
WASHER BRACKET TO LEFT SIDE MEMBER
85
WASHER BRACKET TO CAB REAR PANEL
90
SCREWM 8X60
95
SCREW 3/2-WAY VALVE TO BRACKET
95
BOLT. SCREW BRACKET TO PUSH ROD CHAMBER COVER
100
WASHER BRACKET TO CAB REAR PANEL
100
WASHER BRACKET TO LEFT SIDE MEMBER
110
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
145
NUT SPRING-LOADED PUSH ROD
180
CLAMP STEERING COLUMN JACKET TUBE BRACKET
190
HEXALOBULAR BOLT. SCREW MANUAL PUMP BRACKET TO FENDER BRACKET
200
NUT STEERING COUPLING TO STEERING GEAR,A 166260
210
SCREW STEERING COUPLING TO STEERING GEAR,A 166260
220
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
220
WASHER COMPRESSED AIR LINE TO BRACKET
230
WASHER PUMP TO CONSOLE
270
HEXALOBULAR BOLT. SCREW CLAMP ON BRACKET M 6X35
300
BRACKET AT FIRE WALL
