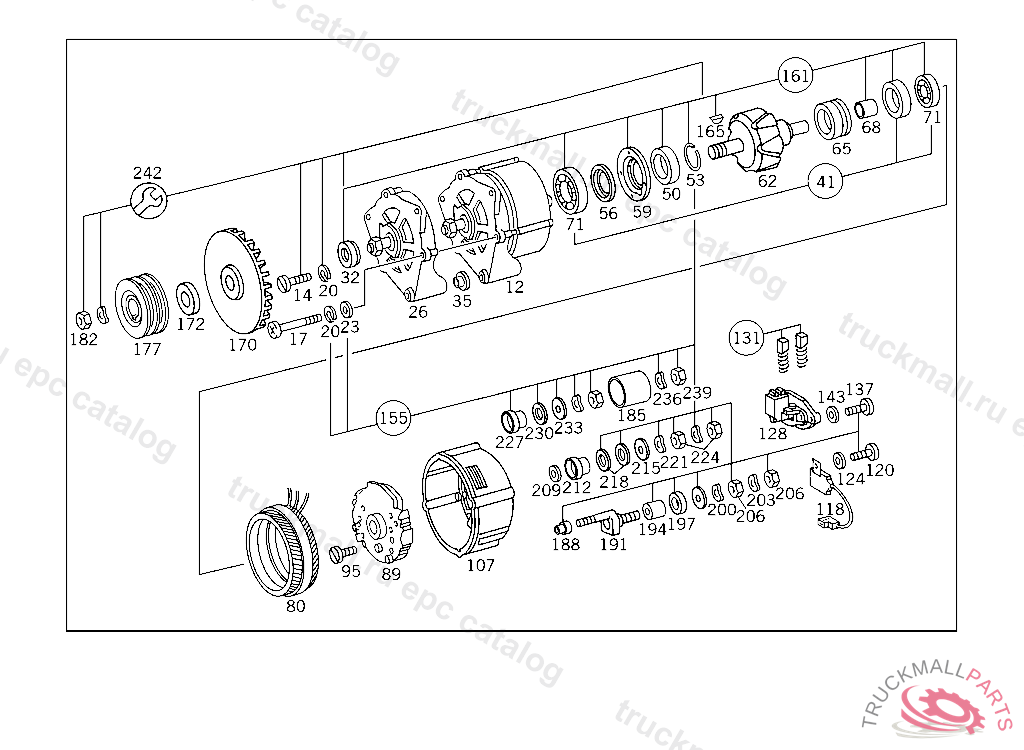

Поз.
Артикул
Описание
12
ALTERNATOR LESS PULLEY 28V/140A "BOSCH"
12
ALTERNATOR , Replaced By: A0131549502, +001A0011552215
17
SCREW
26
COVERTO 476 150 81 50
35
BUSHINGTO 476 150 81 50
41
BALL BEARING FRONT AND REAR
62
ROTORTO 476 150 81 50
80
EXCITER COIL
89
RECTIFIER
95
SCREW
118
CONDENSER
120
SCREW CONTROL UNIT TO BRACKET
124
SPRING WASHER CABLE TO ALTERNATOR
128
REGULATOR AND CUT-OUT
131
CARBON BRUSH SET
155
INSULATOR TERMINALS: B+, B-, D+, W
161
REPAIR KIT ROTOR
170
FAN
177
PULLEYTO 345 154 76 01, 476 154 76 01
177
PULLEYTO 476 150 79 50
185
COVER
191
STUD
203
SPRING WASHER CABLE TO ALTERNATOR
209
WASHER
212
INSULATING BUSHING
242
CLAMPING BOLT
