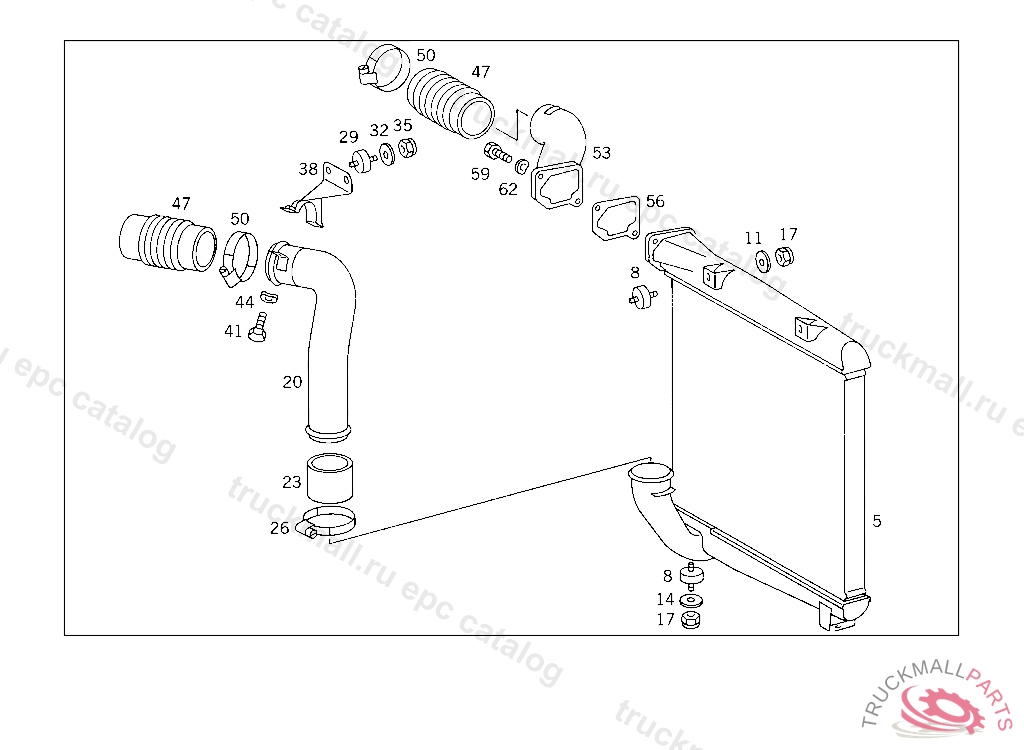

Поз.
Артикул
Описание
5
RADIATOR (CHARGING AIR INTERCOOLER)
5
RADIATOR , Replaced By: A0005000403
8
BUFFER RADIATOR TO SUPPORT
11
WASHER BEARING BRACKET TO SIDE MEMBER
14
WASHER LEVER TO BRACKET 30X10.5X4 MM
17
NUT , Replaced By: N910113010000
20
PIPE ELBOW CHARGING AIR INTERCOOLER INLET
23
HOSE AIR INTAKE PIPE TO ENGINE
23
HOSE , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A0020946982
26
CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE 100-120X13 MM
26
CLAMP AIR INTAKE PIPE TO ENGINE "100"
29
RUBBER MOUNTING AIR CLEANER TO SUBSTRUCTURE
32
WASHER BRACKET TO SUBSTRUCTURE
35
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
35
NUT , Replaced By: N913004008001
38
BRACKET PIPE ELBOW
41
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
41
SCREW , Replaced By: N304017008016
44
SPRING WASHER , Replaced By: N000137008212
47
CHARGE AIR HOSE. HOSE (ACCORDION TUBE) FROM AIR INTAKE PIPE TO INTAKE FITTING
47
HOSE , Replaced By: A0020945482
50
CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE 100-120X13 MM
50
CLAMP AIR INTAKE PIPE TO ENGINE "100"
53
PIPE ELBOW CHARGING AIR INTERCOOLER OUTLET
56
GASKET PIPE ELBOW TO CHARGING AIR INTERCOOLER
56
GASKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. KAO 362/95, Replaced By: A3565010180
59
SCREW REAR EXHAUST PIPE TO MUFFLER
62
SPRING WASHER STEERING COLUMN BRACKET TO CAB
