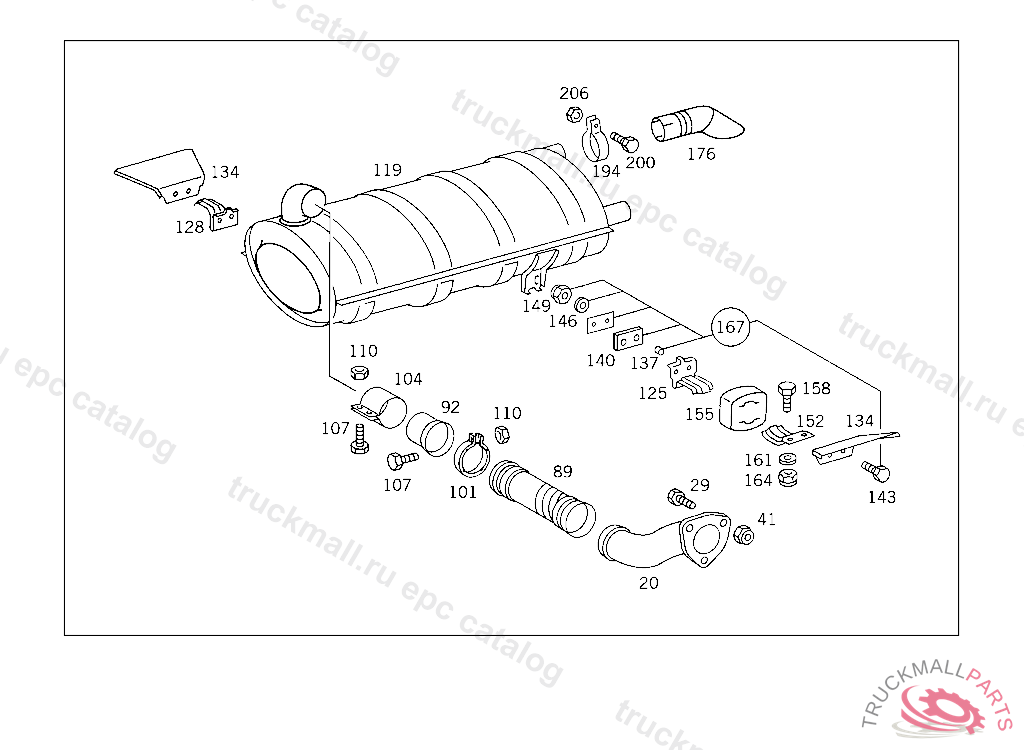

Поз.
Артикул
Описание
20
EXHAUST PIPE FROM THROTTLE HOUSING TO FLEXIBLE METAL TUBE
29
SCREW CONNECTING PIPE TO EXHAUST MANIFOLD M 12X45
41
NUT EXHAUST PIPE TO EXHAUST MANIFOLD
89
FLEXIBLE METAL TUBE FRONT LEFT
92
COLLAR (SLIDING COLLAR)
101
CLAMP FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
104
CLAMP EXHAUST PIPE TO BRACKET
107
SCREW WATER PUMP
107
SCREW BRACKET TO SIDE MEMBER
110
NUT CONNECTING PIPE TO EXHAUST BRAKE
110
NUT REAR EXHAUST PIPE TO BRACKET
119
EXHAUST MUFFLER
125
CONSOLE EXHAUST MUFFLER
128
CONSOLE CONSOLE TO EXHAUST MUFFLER,032182
134
PROTECTIVE PLATE EXHAUST MUFFLER,032182
137
SPACER TUBE REAR EXHAUST PIPE TO BRACKET AT SHOCK ABSORBER CROSS MEMBER
140
INSULATION CONSOLE TO EXHAUST MUFFLER
140
INSULATION CONSOLE TO EXHAUST MUFFLER
143
SCREW , Replaced By: N304017008027
143
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
146
WASHER , Replaced By: N000125008443
149
NUT REAR EXHAUST PIPE TO BRACKET
152
CONSOLE EXHAUST MUFFLER TO SUBSTRUCTURE
155
DAMPING PAD EXHAUST MUFFLER SUSPENSION
158
SCREW END PIECE TO EXHAUST PIPE M 10X25
161
WASHER RADIATOR TO RUBBER MOUNTING
161
WASHER , Replaced By: N000125010532
164
NUT CONNECTING PIPE TO EXHAUST BRAKE
167
SUSPENSION EXHAUST MUFFLER SUSPENSION
176
EXHAUST PIPE , Replaced By: A3564900121
194
CLAMP , Replaced By: N071555094502
194
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
200
SCREW , Replaced By: N304017010002
200
SCREW BRACKET TO SIDE MEMBER
206
NUT CONNECTING PIPE TO EXHAUST BRAKE
