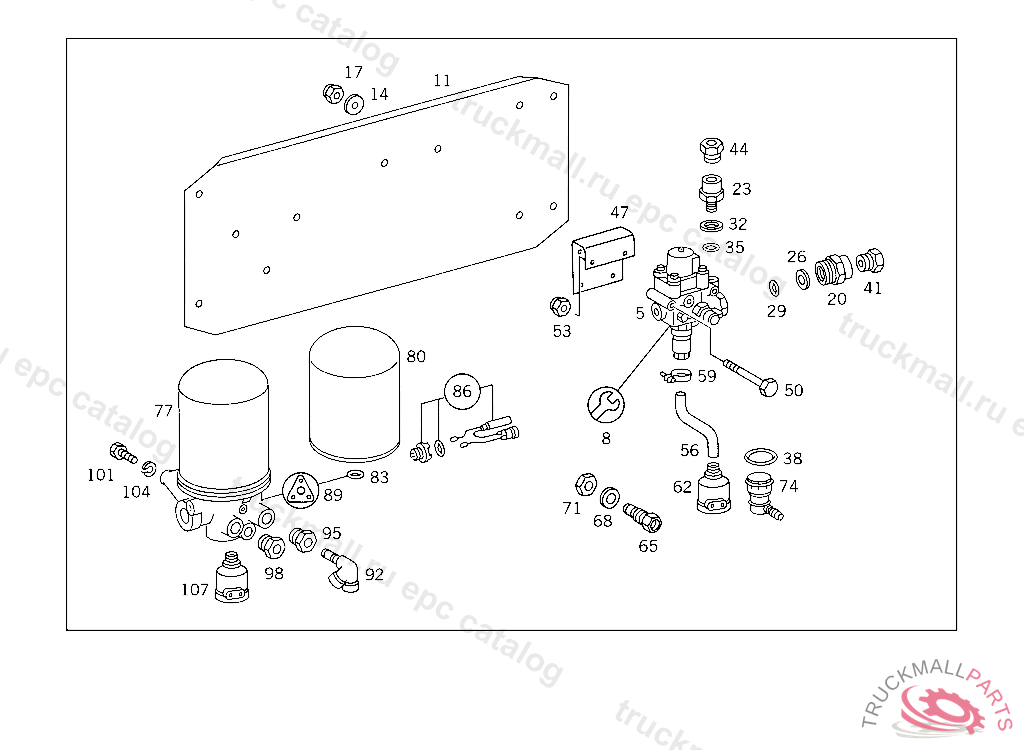

Поз.
Артикул
Описание
5
VALVE PRESSURE REGULATOR WABCO
8
REPAIR KITTO 003 431 48 06
11
BRACKET PRESSURE REGULATOR
14
WASHER , Replaced By: N009021008213
14
WASHER BRACKET TO LEFT SIDE MEMBER
14
WASHER BRACKET TO CAB REAR PANEL
17
NUT , Replaced By: N913004008001
20
FITTING LINE CONNECTION
23
FITTING LINE CONNECTION
26
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
29
O-RING CHECK VALVE TO AIR RESERVOIR
32
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
35
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
41
SCREW. UNION SCREW LINE CONNECTION
44
SCREW. UNION SCREW LINE CONNECTION
44
SCREW. UNION SCREW , Replaced By: A0009973734
47
BRACKET PRESSURE REGULATOR
50
SCREW REAR AXLE REGULATING SOLENOID VALVE
53
NUT , Replaced By: N913004008001
56
HOSE50 MM
59
CLAMP PRESSURE REGULATOR BREATHING
62
MUFFLER BRAKE POWER REGULATOR,CONNECTION: "30"
62
MUFFLER TRAILER CONTROL VALVE
77
AIR DEHYDRATOR , Replaced By: A0014312115, +001A0004292139
80
AIR CLEANER COMPLETE TO BOSCH,KNORR
80
AIR CLEANER COMPLETE KNECHT:TO BOSCH,KNORR
83
SEAL RINGWABCO
86
HEATERWABCO
89
GASKET KITWABCO
92
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20"
95
SCREW. UNION SCREW LINE CONNECTION
98
SCREW. UNION SCREW LINE CONNECTION
98
SCREW. UNION SCREW , Replaced By: A0009973734
101
SCREW , Replaced By: N308676012012
101
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
104
LOCK WASHER FITTING TO BRACKET
107
MUFFLER
107
MUFFLER , Replaced By: A0004302470
107
MUFFLER VALVE BLEEDING
