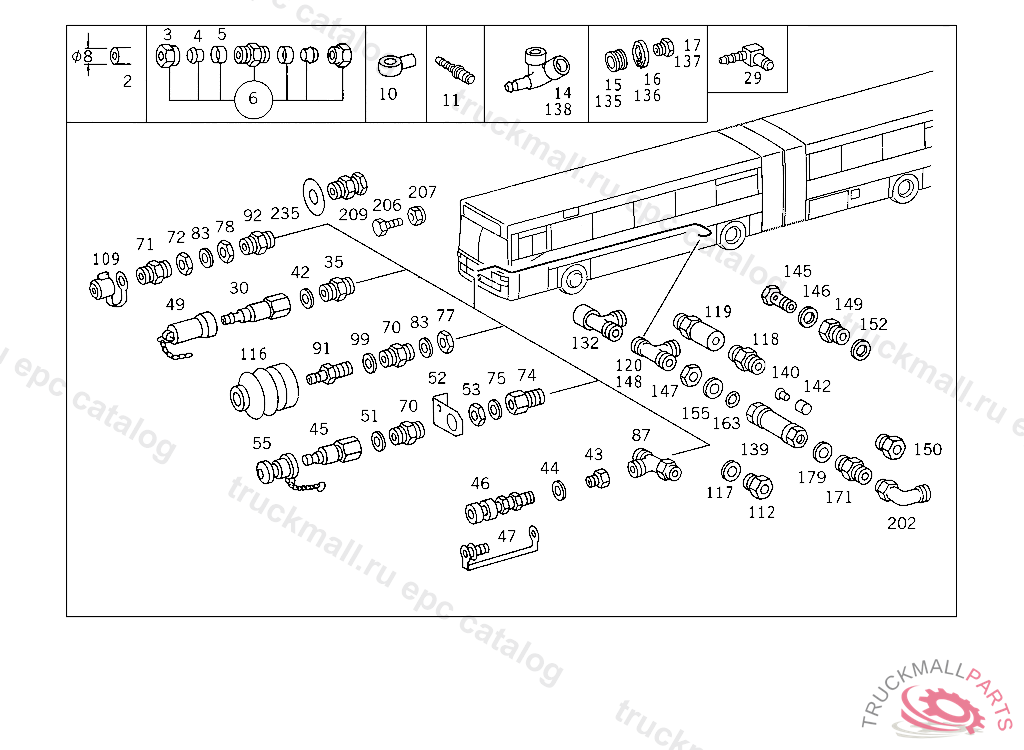

Поз.
Артикул
Описание
2
PLASTIC PIPE AERATION, ORDER BY THE METER
2
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
3
UNION NUT LINE CONNECTION
4
GLAND LINE CONNECTION
5
SLEEVE LINE CONNECTION
6
FITTING , Replaced By: A0029905971
6
FITTING (PARTS KIT),LINE RUPTURE
10
BANJO UNION HOSE WIDTH, / I.D., 6/16 MM
11
CONNECTOR , Replaced By: A0029905478
11
CONNECTOR HOSE WIDTH, 6 MM, TO M22
14
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20"
15
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
16
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
17
SCREW. UNION SCREW LINE CONNECTION
29
ELBOW FITTING HOSE WIDTH, 9 MM,TO M22
30
CONNECTOR BULKHEAD FITTING
30
CONNECTOR
35
FITTING QUICK-RELEASE VALVE TO BRACKET
35
FITTING
42
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
42
SEAL RINGTO 006 997 00 72
42
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
42
SEAL RING BULKHEAD FITTING
42
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
42
SEAL RING
43
FITTING AIR RESERVOIR
44
SEAL RING
45
TEST CONNECTION BULKHEAD FITTING
45
TEST CONNECTION REFILLING CONNECTION,FRONT
45
TEST CONNECTION
45
TEST CONNECTION CHECK VALVE
45
TEST CONNECTION REFILLING CONNECTION,FRONT
45
TEST CONNECTION REFILLING CONNECTION,FRONT
46
COUPLING REFILLING CONNECTION,CENTER
47
PROTECTIVE CAP REFILLING CONNECTION
49
PROTECTIVE CAP TEST CONNECTION
49
PROTECTIVE CAP
49
LOCK NIPPLE MAINTENANCE FLAP
51
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
51
SEAL RING CONTROL VALVE,CONNECTION: "A,P"
51
SEAL RING LINE CONNECTION
51
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
51
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
52
BRACKET TEST CONNECTION
53
NUT BRACKET TO SIDE MEMBER
55
PROTECTIVE CAP MAINTENANCE FLAP
70
FITTING REFILLING CONNECTION
70
FITTING FITTING TO SUBSTRUCTURE
70
FITTING REFILLING CONNECTION,FRONT
70
FITTING AT BRACKET
70
FITTING (PARTS KIT),LINE RUPTURE
71
BULKHEAD FITTING BRAKE LINE COUPLING TO BRACKET
71
FITTING AT BRACKET
71
FITTING
71
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTION: "2"
72
NUT FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
74
FITTING LEVEL ADJUSTMENT VALVE BREATHING
74
ADAPTER FITTING TEST CONNECTION
74
ADAPTER FITTING DRAIN VALVE
74
FITTING DOOR I ENTRANCE
75
SEAL RING SRREW PLUG
77
NUT FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
78
NUT FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
78
NUT BULKHEAD FITTING TO BRACKET
78
NUT BRACKET TO SIDE MEMBER
83
WASHER COILED TUBE TO BRAKE LINE COUPLING SUPPORT
83
WASHER , Replaced By: N000125015019
83
WASHER COVER PLATE TO FRAME
83
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
87
T-FITTING 3/2-WAY VALVE,CONNECTION: "33", UP TO IDENT NO. 5 385481 FROM IDENT NO. SEE STANDARD VERSION
91
CONNECTOR
91
CONNECTOR DOOR I ENTRANCE
91
CONNECTOR IN PRE-HEATER FLAP
92
CONNECTOR , Replaced By: A0039970672, +001A0019901967, +001N915017012100
92
FITTING RELAY VALVE,CONNECTION: "10",950459
99
SEAL RINGTO 000 553 03 05,000 553 18 05,
99
SEAL RING. SEALING RING CLUTCH BOOSTER,CONNECTION: "10"
99
SEAL RING CLUTCH BOOSTER
109
PLUG , Replaced By: A0009979486
109
PLUG
112
FITTING AIR RESERVOIR,CONNECTION: "15",5 433281
116
PROTECTIVE CAP REFILLING CONNECTION
117
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
118
FITTING AIR RESERVOIR,CONNECTION: "13"
119
FITTING LINE CONNECTION
120
T-FITTING AIR DEHYDRATOR,CONNECTION: "21"
120
T-FITTING BETWEEN THE LINES
120
TANK RECESS. T-FITTING LINE CONNECTION
120
T-FITTING
135
SEAL RING , Replaced By: A0009940747
135
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
135
LOCK RING LINE CONNECTION
136
LOCK LINE CONNECTION
136
LOCK , Replaced By: A0009945448
136
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
137
SCREW. UNION SCREW , Replaced By: A0009973734
137
SCREW. UNION SCREW LINE CONNECTION
137
SCREW. UNION SCREW LINE CONNECTION
138
ADAPTER FITTING FLUID RESERVOIR TO BRACKET
139
NON-RETURN VALVE. VALVE WITH CHECK VALVE WABCO,5 433388
140
VALVE SEAT RINGWABCO,5 433388
142
BUSHINGWABCO,5 433388
145
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
146
SEAL RINGTO 006 997 00 72
147
NUT CHECK VALVE TO AIR RESERVOIR
148
T-FITTING BETWEEN THE LINES
149
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
150
SCREW. UNION SCREW LINE CONNECTION
152
SEAL RING LINE CONNECTION
155
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
163
O-RING CHECK VALVE TO AIR RESERVOIR
171
FITTING TWO-WAY VALVE,CONNECTION: "12",4 691316
179
SEAL RING LINE CONNECTION
202
ELBOW FITTING 3/2-WAY VALVE,CONNECTION: "20",5 765577
206
SCREW PUMP TO BRACKET
206
SCREW , Replaced By: N304017006016
207
NUT , Replaced By: N913004006001
207
NUT PUMP TO BRACKET
209
FITTING FITTING TO BRACKET
235
UNIT IDENTIFICATION PLATE
235
GUIDE SIGN
235
GUIDE SIGN
999
REPAIR KIT CHECK TO 003 429 07 44
999
BRAKE HOSE FRONT AXLE
999
CONNECTOR REFILLING CONNECTION,FRONT
999
TEST CONNECTION COMPRESSED AIR SYSTEM
999
TEST CONNECTION REFILLING CONNECTION,FRONT
999
T-FITTING , Replaced By: N074317000100
999
SEAL RING , Replaced By: A0009940747
999
LOCK , Replaced By: A0009945448
999
FITTING AT VALVE
999
SCREW. UNION SCREW , Replaced By: A0009973734
999
FITTING DELIVERY LINE TO FRAME
999
BRACKET BRACKET TO BRACKET, NOT USED
999
BRACKET BRAKE HOSE
999
WASHER , Replaced By: N000125015019
999
WASHER COVERING TO BEARING BRACKET
999
LOCK RINGWABCO,5 433388
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
