Поз.
Артикул
Описание

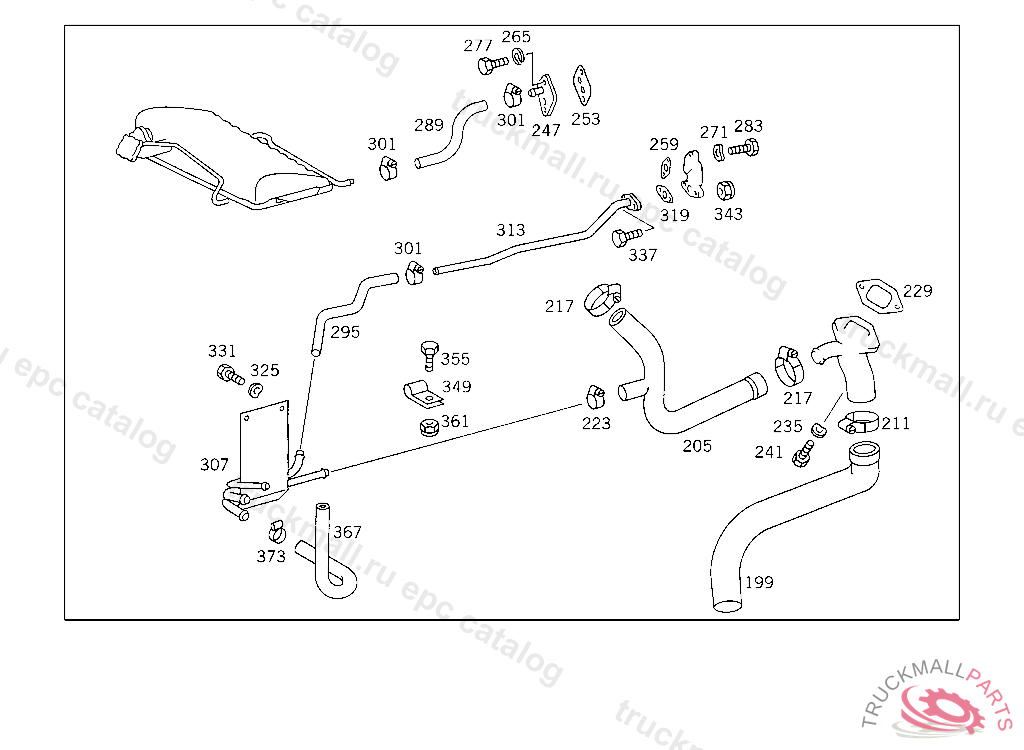

199
HOSE FROM RADIATOR TO WATER PUMP
205
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
211
CLAMP HOSE 70-90X13 MM
211
CLAMP , Replaced By: N000000000674
217
CLAMP , Replaced By: N000000000670
223
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
223
CLAMP , Replaced By: N000000000667
229
GASKET CONNECTOR, Replaced By: A0002011180
229
GASKET CONNECTOR, Replaced By: A0002011280
229
GASKET CONNECTOR
229
GASKET , Replaced By: A4422010480
229
GASKET CONNECTOR, Replaced By: A0002011080
235
SPRING WASHER STEERING COLUMN BRACKET TO CAB
241
SCREW BRACKET TO SIDE MEMBER
247
FLANGE ENGINE BREATHING
253
GASKET. SEAL DE-AERATION PIPE TO ENGINE
259
GASKET HEATING PIPE TO ENGINE
265
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
271
SPRING WASHER , Replaced By: N000137008204
271
SPRING WASHER , Replaced By: N000137008212
271
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
277
SCREW END PIECE TO EXHAUST PIPE M 10X25
283
SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
283
SCREW , Replaced By: N000933008337
283
SCREW , Replaced By: A0099900101
289
HOSE (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK
295
HOSE FROM HEATING LINE TO HEATING LINE
301
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
301
CLAMP , Replaced By: N000000000667
307
LINE HEATING AND BREATHING
313
LINE HEATING AND BREATHING
319
GASKET HEATING PIPE TO ENGINE
325
SPRING WASHER LICENSE PLATE TO BRACKET
331
SCREW COVER PLATE TO BRACKET
337
SCREW , Replaced By: N304017008018
337
SCREW SUPPORT TO FENDER
343
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
343
NUT , Replaced By: N913004008001
349
CLAMP FEED LINE TO THERMOSTAT
355
SCREW COVER PLATE TO BRACKET
361
NUT PUMP TO BRACKET
361
NUT , Replaced By: N913004006001
367
HOSE DE-AERATION LINE, LENGTH AVAILABLE: 1000 MM
373
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
373
CLAMP , Replaced By: N916017011001
999
BRACKET HEATING PIPE TO FAN SHROUD BRACKET
