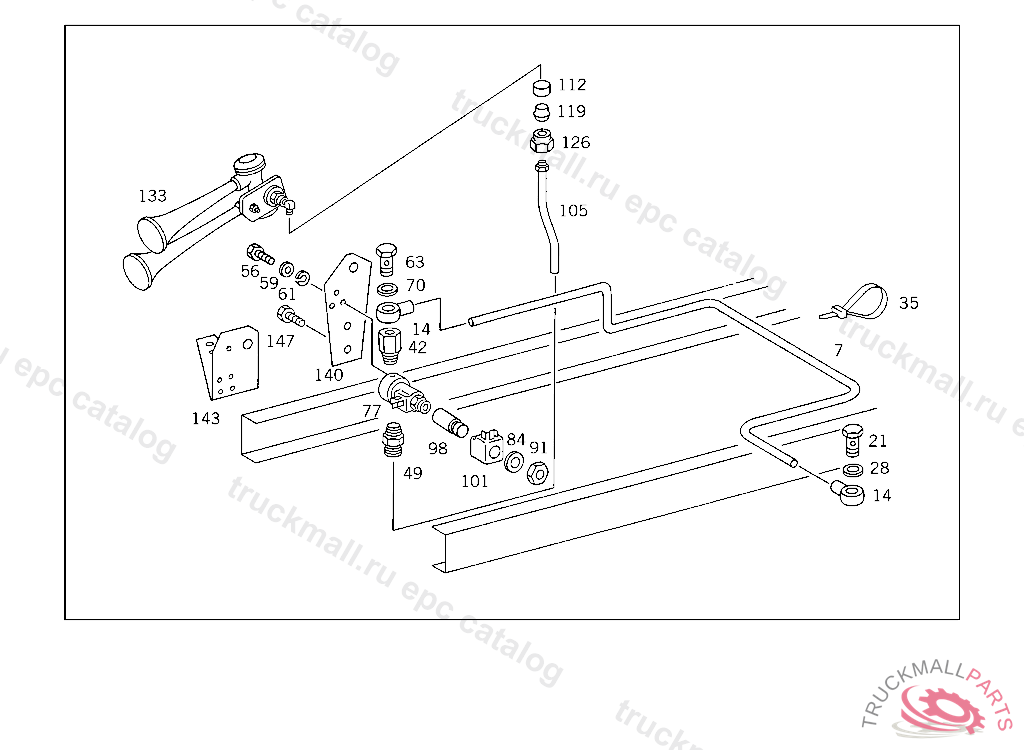

Поз.
Артикул
Описание
7
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
14
BANJO UNION HOSE WIDTH, / I.D., 4/16 MM
14
BANJO UNION
14
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
21
HOLLOW SCREW HEATING CONNECTION
21
HOLLOW SCREW LINE CONNECTION
35
LOOM TIE , Replaced By: A3459977390
35
LOOM TIE
35
LOOM TIE ELECTRIC CABLE MOUNTING
35
LOOM TIE LINE MOUNTING
42
FITTING SOLENOID VALVE,CONNECTION: "2"
42
CONNECTOR SOLENOID VALVE,CONNECTION: "2" TOA388 997 81 36 / 88 36
49
CONNECTOR SOLENOID VALVE,CONNECTION: "2"
56
SCREW BRACKET MOUNTING
59
WASHER FUSE TO FUSE BOX
61
LOCK WASHER T-FITTING TO BRACKET
63
HOLLOW SCREW HEATING CONNECTION
70
SEAL RING LINE CONNECTION
77
VALVE , Replaced By: A3869977336, +001A3454297736, +001A3509977472
77
VALVE AIR HORN 24 V PARKER
77
VALVE AIR HORN 12 V
77
VALVE AIR HORN 24 V WABCO
77
VALVE , Replaced By: A3649977136, +001A3454297736, +001A3509977472
77
VALVE AIR HORN 12 V
84
SEAL RINGTO 345 997 74 36/364 997 71 36
91
NUTTO 345 997 74 36/364 997 71 36
98
VALVE PARTTO 345 997 74 36/364 997 71 36
101
SOLENOIDTO 386 997 73 36
101
MAGNET12 V, TO 345 997 74 36
101
MAGNET24 V, TO 364 997 71 36
105
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
112
SLEEVE LEAK LINE
112
SLEEVE LINE CONNECTION
119
GLAND LINE CONNECTION
119
GLAND , Replaced By: A0019901667
126
UNION NUT
126
UNION NUT LINE CONNECTION
133
AIR HORN
133
AIR HORN , Replaced By: A6965420121, +001N003861006007, +001N915017006100, +001N915062004000
133
AIR HORN , Replaced By: A6965420021
143
BRACKET AIR HORN
147
SCREW BRACKET TO BUMPER,LEFT M 10X25
999
HOLLOW SCREW FITTING RELAY VALVE,CONNECTION "20",LEFT
999
NUT RELAY TO BRACKET M5
999
NUT BRACKET TO LEFT SIDE MEMBER
999
NUT BRACKET TO SIDE MEMBER,XB209706
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
SCREW. HEXAGON HEAD BOLT SENDER UNIT TO BRACKET M5X25,V 214287
999
SCREW BRACKET TO AIR CLEANER CONSOLE
999
WASHER A. WASHER BRACKET TO LEFT SIDE MEMBER
999
SCREW BEARING BRACKET TO SIDE MEMBER
999
SCREW BRACKET TO SIDE MEMBER
999
SCREW , Replaced By: N304017010040
999
BRACKET AIR HORN
999
LOOM TIE LINE MOUNTING
999
BRACKET AIR HORN
999
WASHER BRACKET TO LEFT SIDE MEMBER
999
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
999
PLASTIC PIPE8X6 MM, ORDER BY THE METER
999
BLEEDER VALVETO 386 997 73 36
