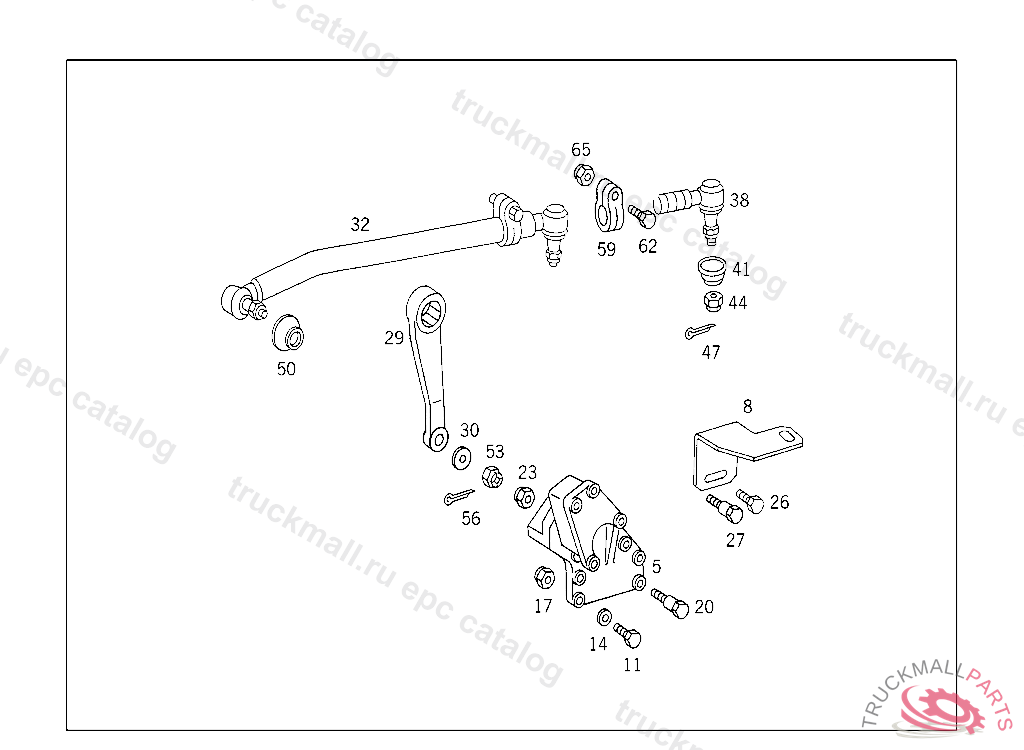

Поз.
Артикул
Описание
5
STEERING SUPPORT POWER STEERING
8
BRACKET OIL LINES
11
SCREW ALTERNATOR TO SUPPORT
11
SCREW STEERING BRACKET TO FRAME M 12X1.5X60
11
SCREW LEFT AND RIGHT CONSOLES TO FRAME M 12X1.5X50
11
SCREW VIBRATION ABSORBER TO FRAME M 12X1.5X55
11
SCREW , Replaced By: N308676012018
14
WASHER SUPPORT TO FRAME,D 127794
17
NUT ALTERNATOR TO SUPPORT
20
FITTED SCREWM 12X1,5X135, NOT USED
20
FITTED SCREW STEERING BOX ASSEMBLY TO STEERING SUPPORT
20
FITTED SCREWM 12X1,5X55, NOT USED
20
SCREW STEERING BOX ASSEMBLY TO STEERING SUPPORT
23
NUT ALTERNATOR TO SUPPORT
26
SCREW , Replaced By: N308676018001
29
PITMAN ARM
30
WASHER DRAG LINK TO PITMAN ARM
32
DRAG LINK
32
DRAG LINK AT STEERING GEAR TRW DO BRASIL, NOT USED
32
DRAG LINKNAKATA
32
DRAG LINK AT STEERING GEAR NAKATA, NOT USED
32
DRAG LINK AT STEERING GEAR, NOT USED
32
DRAG LINK AT STEERING GEAR
38
DRAG LINK END ,K 055088
38
DRAG LINK END TO BE SCREWED INTO DRAG LINK TO 682 460 31 05
38
JOINT TO BE SCREWED INTO DRAG LINK TO 682 460 98 05
41
BOOT SCREWED PART OF JOINT TO 384 460 97 05,98 05,99 05
41
DUST CAP SCREWED PART OF JOINT TO 682 460 31 05,98 05,75 05,77 05
41
BOOT SCREWED PART OF JOINT
44
NUT DRAG LINK TO STEERING ARM AND PITMAN ARM
47
COTTER PINROCKINGER TYP 260 G140
50
BOOT
50
BOOT FIXED PART OF JOINT TO 384 460 88 05
50
BOOT FIXED PART OF JOINT TO 384 460 88 05
50
BOOT FIXED PART OF JOINT
50
BOOTTO 384 460 92 05, NOT USED
53
NUT DRAG LINK TO STEERING ARM AND PITMAN ARM
53
NUT
56
COTTER PINROCKINGER TYP 260 G140
59
CLAMP JOINT TO TIE ROD TO 693 460 70 05
59
CLAMP JOINT TO DRAG LINK TO 682 460 75 05
59
CLAMP JOINT TO DRAG LINK TO 682 460 75 05
59
CLAMP DRAG LINK END TO DRAG LINK LEMFOERDER
62
SCREW STEERING BRACKET TO FRAME M 12X1.5X60
62
SCREW , Replaced By: N308676012018
62
SCREW , Replaced By: N308676012018
65
NUT SUPPORT TO SIDE MEMBER
999
SPACER RING SCREWED PART OF JOINT TO 693 460 71 05
999
DRAG LINK END FIXED PART OF JOINT TO 384 460 98 05
999
STEERING SUPPORT AT FRAME, NOT USED
999
PITMAN ARM , NOT USED
