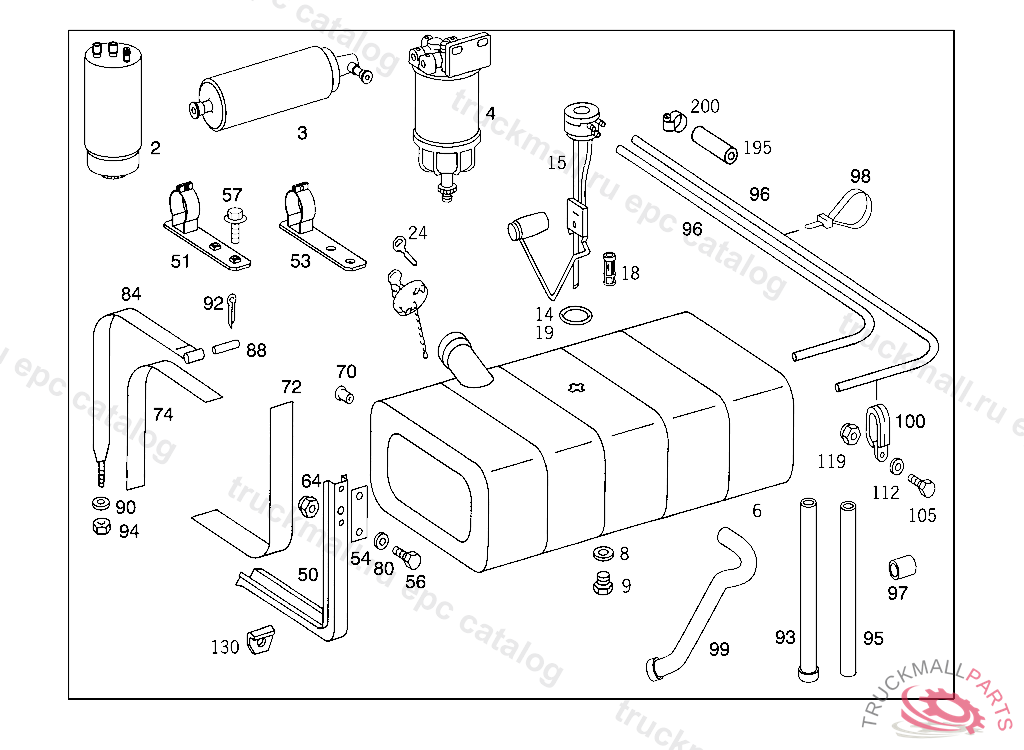

Поз.
Артикул
Описание
2
FUEL FILTER SHIELDED
3
FUEL PUMP. AUXILIARY PUMP FUEL TANK,ELECTRIC FUEL PUMP,ELECTROHYDRAULIC SHUT-OFF DEVICE
4
FUEL FILTER FUEL FILTER TO SIDE MEMBER
6
FUEL TANK
6
FUEL TANK
6
FUEL TANK , Replaced By: A3864706501
6
FUEL TANK LESS SENDER UNIT 300 L
6
FUEL TANK LESS SENDER UNIT 300 L
6
FUEL TANK , Replaced By: A3864706501
6
FUEL TANK LESS SENDER UNIT 210 L
6
FUEL TANK LESS SENDER UNIT
6
FUEL TANK , Replaced By: A3864706501
6
FUEL TANK LESS SENDER UNIT 300 L
6
FUEL TANK300 L
6
FUEL TANK LESS SENDER UNIT 140 L
6
FUEL TANK LESS SENDER UNIT 300 L
8
SEAL RING AT TANK
9
SCREW PLUG AT TANK
14
SEAL RING FUEL GAUGE SENDER UNIT TO FUEL TANK
15
SENDER UNIT FUEL GAUGE
15
SENDER UNIT FUEL GAUGE
15
SENDER UNIT FUEL GAUGE
15
SENDER UNIT FUEL GAUGE
15
SENDER UNIT FUEL GAUGE
15
SENDER UNIT , Replaced By: A3865427217
15
SENDER UNIT FUEL GAUGE
15
SENDER UNIT FUEL GAUGE
15
SENDER UNIT FUEL GAUGE
18
FUEL STRAINERTO 386 542 78 17, 79 17
18
STRAINER
19
SEAL RING
24
KEY BLANK "UNIVEL"
24
KEY
50
CONSOLE , Replaced By: A6964707442
50
CONSOLE FUEL TANK,FRONT AND REAR
50
CONSOLE FUEL TANK,FRONT AND REAR
50
CONSOLE FUEL TANK,FRONT AND REAR
50
SUPPORT FUEL TANK
51
MOUNTING PLATE
53
MOUNTING PLATE
54
BASE CONSOLE TO FRAME
54
BASE CONSOLE TO FRAME
56
SCREW , Replaced By: N308676014008
56
SCREW , Replaced By: N308676014012
56
SCREW BATTERY CASE TO SIDE MEMBER
56
SCREW BATTERY CASE TO SIDE MEMBER
56
SCREW BATTERY CASE
57
SCREWM 10X20
64
NUT , Replaced By: N910113014000
64
NUT , Replaced By: N910113014000
64
NUT BRACKET TO BATTERY CASE
70
RIVET SUPPORT TO SIDE MEMBER 14X30
72
SHIM BRAKE ANCHOR
74
SHIM FUEL TANK TO CONSOLE
74
PAD SUPPORT TO SIDE MEMBER
74
PAD SUPPORT TO SIDE MEMBER
74
PAD SUPPORT TO SIDE MEMBER
74
PAD SUPPORT TO SIDE MEMBER
74
SHIM FUEL TANK CONSOLE
74
SHIMNO.4,5
74
PAD FUEL TANK TO CONSOLE
74
PAD FUEL TANK TO CONSOLE
74
PAD FUEL TANK TO CONSOLE
80
WASHER BATTERY CASE
80
WASHER SUPPORT TO FRAME,D 127794
84
STRAP FUEL TANK TO SUPPORT
84
STRAP FUEL TANK TO SUPPORT
84
STRAP FUEL TANK TO SUPPORT
84
STRAP FUEL TANK TO SUPPORT
84
STRAP FUEL TANK TO SUPPORT
88
PIN STRAP TO SUPPORT
90
WASHER SUPPORT TO FRAME,D 127794
90
WASHER SUPPORT TO FRAME,D 127794
92
COTTER PIN STRAP TO SUPPORT
93
HOSE
94
NUT FUEL TANK TO SUPPORT
94
HEX. NUT. NUT FUEL TANK TO CONSOLE,167609
94
HEX. NUT. NUT FUEL TANK TO CONSOLE,167609
95
HOSE
96
PLASTIC PIPE8X6 MM, ORDER BY THE METER
96
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
96
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
96
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
96
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
97
HOSE WITHE
97
HOSE GREEN
98
LOOM TIE ELECTRIC CABLE MOUNTING
98
LOOM TIE WIRING HARNESS FOR AIR CONDITIONING SYSTEM 205 MM
98
LOOM TIE , Replaced By: A3459977390
99
HOSE
100
CLAMP FUEL LINES TO BRACKET
105
SCREW LINES TO BRACKET
112
WASHER TRAILER PLUG SOCKET TO BRACKET
119
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
130
SHIMNO.4,5
195
HOSE WATER SEPARATOR
195
HOSE WATER SEPARATOR
195
HOSE FEED LINE AND RETURN LINE
200
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
200
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
200
CLAMP , Replaced By: N916017011001
200
CLAMP , Replaced By: N916017011001
999
RUBBER SECTION ,D 339846D 437847
999
RUBBER MAT ,D 339846
999
FUEL GAUGE DASH UNIT FUEL GAUGE TO A 979 470 01 03,D 339846
999
FILTER ELEMENTTORACOR
999
BOTTOM PLATETOA 979 470 02 90
999
FUEL TANK LESS SENDER UNIT BEPO , 150L, THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A9794700503
999
SUPPORT FUEL TANK MOUNTING,D 339846
999
FUEL TANK LESS SENDER UNIT
999
STRAP FUEL TANK MOUNTING
999
VALVE (VENT VALVE)
999
OUTFIT (LOCK,KEY,HANDLE) LOCKABLE
999
FUEL TANK LESS SENDER UNIT 210 L
999
FUEL TANK LESS SENDER UNIT "300 L",D 276012
999
LOOM TIE BATTERY MOUNTING,D 211563
999
FRAME
999
FRAME
999
FUEL TANK
999
FITTING
999
CLAMPING PLATE
999
SEAL RING FUEL STRAINER SCREEN
