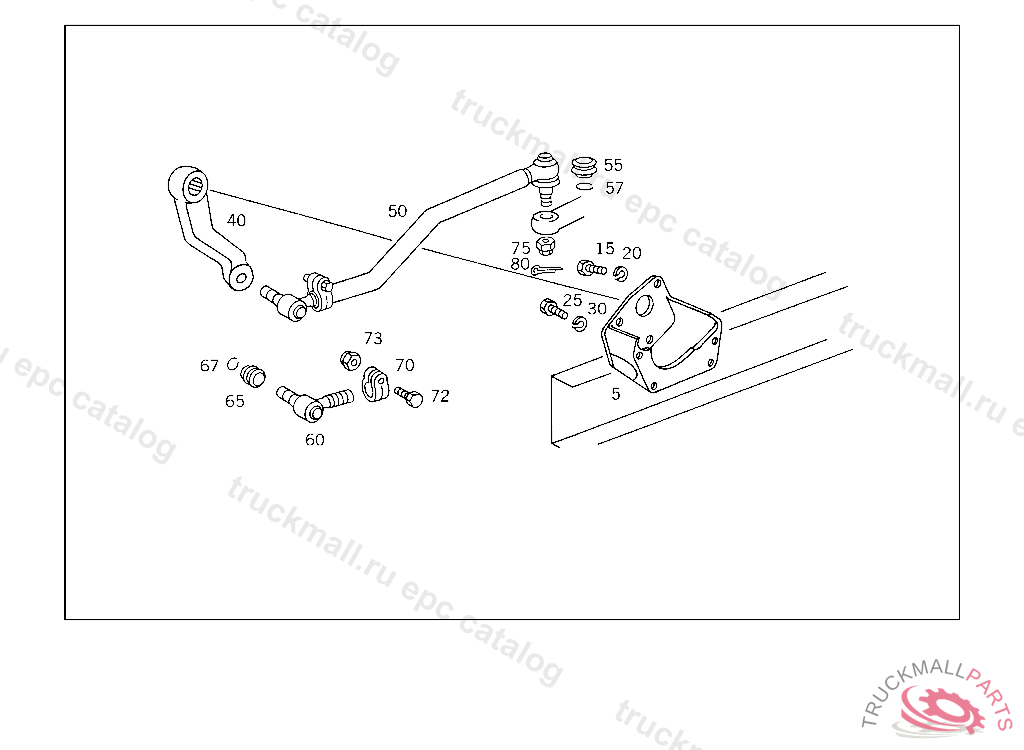

Поз.
Артикул
Описание
5
STEERING SUPPORT , HYDRAULIC STEERING-766.4D 523393
5
STEERING SUPPORT , HYDRAULIC STEERING-766.4
5
STEERING SUPPORT POWER STEERING
5
STEERING SUPPORT
15
SCREW SUPPORT TO SIDE MEMBER M 12X1.5X30
15
SCREW TIGHTENER PULLEY TO BRACKET ON ENGINE
20
LOCK WASHER PROPELLER SHAFT TO REAR AXLES I AND II
25
SCREW , Replaced By: N308676018001
30
LOCK WASHER BELL HOUSING TO TRANSMISSION
40
PITMAN ARM
40
PITMAN ARM
50
DRAG LINK , HYDRAULIC STEERING-766.4
50
DRAG LINKTRW
50
DRAG LINK , HYDRAULIC STEERING-766.4
50
DRAG LINKNAKATA
55
BOOT FIXED PART OF JOINT TO 688 460 05 05,75 05,74 05,76 05
55
BOOT FIXED PART OF JOINT TO 688 460 03 05,77 05,79 05,78 05
57
RINGTO 000 463 20 96
60
DRAG LINK ENDTO 688 460 03 05,77 05,79 05
60
DRAG LINK ENDTO 688 460 05 05,75 05,74 05,76 05
65
BOOTTO 000 460 63 48
65
BOOTTO 000 460 62 48
67
RINGTO 000 463 20 96
70
CLAMP JOINT TO DRAG LINK TO 688 460 03 05,77 05, 78 05
70
CLAMP JOINT TO DRAG LINK TO 688 460 05 05,75 05,81 05, 7605
70
CLAMPING PIECE JOINT TO DRAG LINK TO 688 460 05 05,75 05,81 05, 7605
72
SCREW CLAMP TO DRAG LINK TO 344 338 73 45
72
SCREW CLAMP TO DRAG LINK TO 344 338 73 45
72
SCREW CLAMP TO DRAG LINK TO 000 463 05 17
73
NUT , Replaced By: N910113010003
73
NUT , Replaced By: N910113010003
75
NUT DRAG LINK TO STEERING ARM AND PITMAN ARM
80
COTTER PINROCKINGER TYP 260 G140
999
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT PUMP TO BRACKET
999
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
SCREW BRACKET TO CHARGING AIR INTERCOOLER
999
SEAL RING 2/2-WAY VALVE,CONNECTION: "20"
999
SCREW-IN FITTING AT PRESSURE REGULATOR
999
SCREW POWER CYLINDER TO BEARING BRACKET
999
SCREW CLAMPING PIECE TO BRACKET M 6X40
999
WASHER PLUG SOCKET TO BRACKET
999
HOSE (SUCTION LINE),FROM OIL TANK TO PUMP, NOT USED
999
LINE FROM HOSE TO HOSE
999
BRACKET OIL TANK
999
BRACKET DELIVERY AND SUCTION LINES TO CAB, NOT USED
999
BRACKET OIL TANK, NOT USED
999
LINE , Replaced By: A6884607370
999
LINE FROM OIL PUMP TO HIGH PRESSURE HOSE, NOT USED
999
LINE (RETURN LINE),FROM STEERING TO OIL TANK
999
LINE FROM HOSE TO POWER STEERING PUMP
999
DRAG LINK , NOT USED
999
DRAG LINK , NOT USED
999
BOOTTO 384 460 71 09/72 09
999
STEERING LOCK ENGINE ELECTROPNEUMATIC SHUT-OFF
999
CLAMP HEATING LINE AND ENGINE BREATHING TO BRACKET
999
BRACKET OIL TANK, NOT USED
999
WASHER CONSOLE TO REAR CROSS MEMBER,5 751724
999
UNIVERSAL JOINT STEERING SHAFT TO STEERING, MECHANIC STEERING-762.0
999
BOOTTO 345 330 70 03,352 330 07 03
999
SCREW STEERING GEAR TO STEERING BRACKET, MECHANIC STEERING-762.0
999
NUT STEERING GEAR TO STEERING BRACKET, MECHANIC STEERING-762.0
999
CLAMP , Replaced By: A0009953244
999
CLAMP
999
BOOTTO 384 460 82 09/88 09/89 09
999
JOINT R.H. THREAD LEMFOERDER
