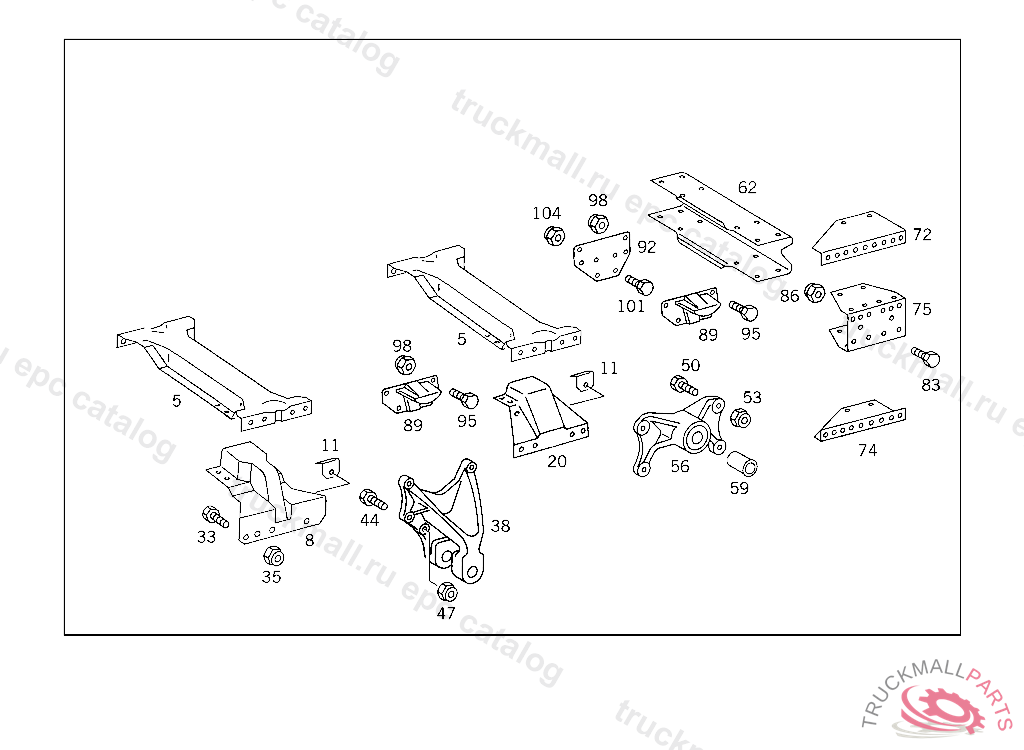

Поз.
Артикул
Описание
5
CROSS MEMBERNO.4
8
STRUTNO.4,5
11
SHIMNO.4,5
33
SCREW , Replaced By: N308676014008
35
NUT , Replaced By: N910113014000
38
REAR SPRING BRACKET (REAR SPRING BRACKET),FRONT
44
SCREW STEERING SUPPORT TO FRAME M 14X55
47
NUT , Replaced By: N910113014000
50
SCREW FRONT SPRING REAR BRACKET TO SIDE MEMBER
50
SCREW BRACKET TO SIDE MEMBER M 14X1.5X50,5 543914
53
NUT , Replaced By: N910113014000
56
SPRING BRACKET (REAR SPRING BRACKET),REAR
59
BUSHING
59
BUSHING
62
CROSS MEMBER (REAR CROSS MEMBER)
75
GUSSET PLATE
83
SCREW GUSSET PLATE TO SIDE MEMBER
86
NUT , Replaced By: N910113014000
89
HELPER SPRING BRACKET REAR RIGHT
89
HELPER SPRING BRACKET REAR LEFT
89
HELPER SPRING BRACKET FRONT RIGHT
89
HELPER SPRING BRACKET FRONT LEFT
92
PLATE HELPER SPRING BRACKET,REAR
92
PLATE HELPER SPRING BRACKET,FRONT
92
PLATE , Replaced By: A3843257254, +001A3843257354
95
SCREW , Replaced By: N308676014012
98
NUT , Replaced By: N910113014000
