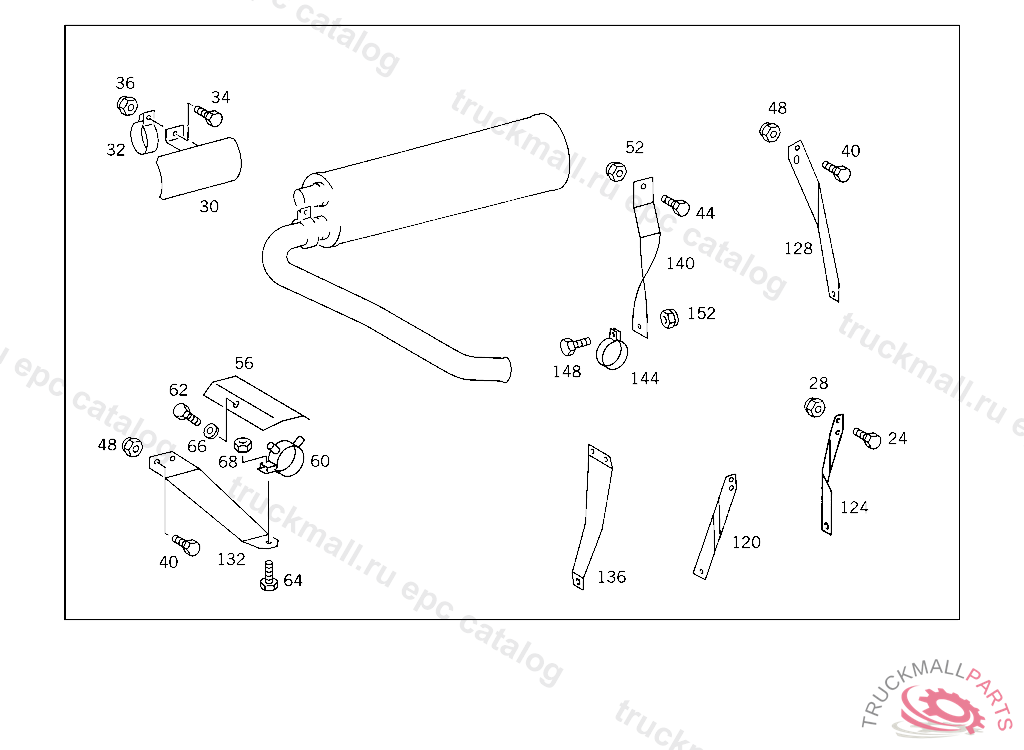

Поз.
Артикул
Описание
24
SCREW REAR EXHAUST PIPE TO MUFFLER
24
SCREW BRACKET TO SIDE MEMBER
24
SCREW BRACKET TO SIDE MEMBER
24
SCREW BRACKET TO SIDE MEMBER
24
SCREW , Replaced By: N304017010002
28
NUT STRAP TO BRACKET
28
NUT STRAP TO BRACKET
28
NUT STRAP TO BRACKET
28
NUT , Replaced By: N910113010000
30
PROTECTIVE PLATE FUEL TANK
30
SUPPORT EXHAUST PIPE
30
SUPPORT EXHAUST PIPE TO SIDE MEMBER
32
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
32
CLAMP , Replaced By: N071555090502
34
SCREW BRACKET TO SIDE MEMBER
34
SCREW , Replaced By: N304017010002
36
NUT STRAP TO BRACKET
36
NUT , Replaced By: N910113010000
40
SCREW SUPPORT TO SIDE MEMBER M 14X1.5X42
40
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
40
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
40
SCREW , Replaced By: N308676014020
44
SCREW BRACKET TO FRAME M 12X35
48
NUT BRACKET TO SIDE MEMBER
48
NUT , Replaced By: N910113014001
52
NUT SUPPORT TO SIDE MEMBER
56
PROTECTIVE PLATE , NOT USED
60
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
62
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
62
SCREW , Replaced By: N304017008039
64
SCREW BRACKET TO SIDE MEMBER
64
SCREW , Replaced By: N304017010002
66
WASHER EXHAUST MUFFLER TO STRAP
66
WASHER , Replaced By: N000125008443
68
NUT STRAP TO BRACKET
68
NUT , Replaced By: N910113010000
120
BRACKET TAIL PIPE TO SIDE MEMBER
120
BRACKET TAIL PIPE TO SIDE MEMBER
120
BRACKET , Replaced By: A6524921441
120
BRACKET TAIL PIPE TO SIDE MEMBER
124
BRACKET TAIL PIPE
128
BRACKET EXHAUST PIPE TO SIDE MEMBER,K 035197
132
BRACKET TAIL PIPE TO SIDE MEMBER
136
BRACKET TAIL PIPE
140
BRACKET TAIL PIPE
144
CLAMP EXHAUST PIPE
148
SCREW BRACKET TO SIDE MEMBER
148
SCREW , Replaced By: N304017010002
152
NUT STRAP TO BRACKET
152
NUT , Replaced By: N910113010000
999
RUBBER BUFFER BRACKET TO SUPPORT
999
GLASS PANE
999
CONNECTOR REAR
999
CONNECTOR REAR
999
CONNECTOR REAR
999
SUPPORT TAIL PIPE TO SIDE MEMBER
999
SUPPORT , Replaced By: A3604910016
999
SUPPORT EXHAUST
999
BRACKET EXHAUST PIPE
999
DAMPING PAD PARTICLE FILTER
999
SUPPORT REAR EXHAUST PIPE
999
BRACKET EXHAUST
999
REAR EXHAUST PIPE TAIL PIPE,4 613840
999
REAR EXHAUST PIPE REAR,4 613840
999
REAR EXHAUST PIPE REAR
999
REAR EXHAUST PIPE REAR
999
BRACKET EXHAUST
999
BRACKET , Replaced By: A3834927941
999
BRACKET , Replaced By: A3814923841, +001N071555075502
999
BRACKET EXHAUST
999
REAR EXHAUST PIPE CENTRAL PART,4 613840
999
REAR EXHAUST PIPE CENTRAL PART,4 613840
999
REAR EXHAUST PIPE
999
REAR EXHAUST PIPE
999
EXHAUST MUFFLER
999
EXHAUST PIPE
999
EXHAUST PIPE FRONT
999
BRACKET TAIL PIPE
999
SUPPORT TAIL PIPE
999
END PIECE
999
END PIECE EXHAUST MUFFLER,LEFT REAR
999
BRACKET , Replaced By: A6164920241
999
BRACKET REAR EXHAUST PIPE,5 193594 TO BE ADAPTED DURING ASSEMBLY
999
BRACKET , Replaced By: A6164923241
999
BRACKET , Replaced By: A3604923541
999
REAR EXHAUST PIPE TAIL PIPE,FRONT
999
BRACKET , Replaced By: A6174926341
999
END PIECE EXHAUST MUFFLER,RIGHT REAR
999
REAR EXHAUST PIPE TAIL PIPE,FRONT,5 468858
999
BRACKET
999
EXHAUST MUFFLER
999
EXHAUST PIPE ,5 953233
999
REAR EXHAUST PIPE TAIL PIPE,FRONT,5 468859
999
END PIECE TAIL PIPE ON THE RIGHT
999
END PIECE (TAIL PIPE),5 758826
999
BRACKET BRACKET TO SPRING FRONT BRACKET,5 943736K 035522
999
END PIECE (TAIL PIPE)
