Поз.
Артикул
Описание

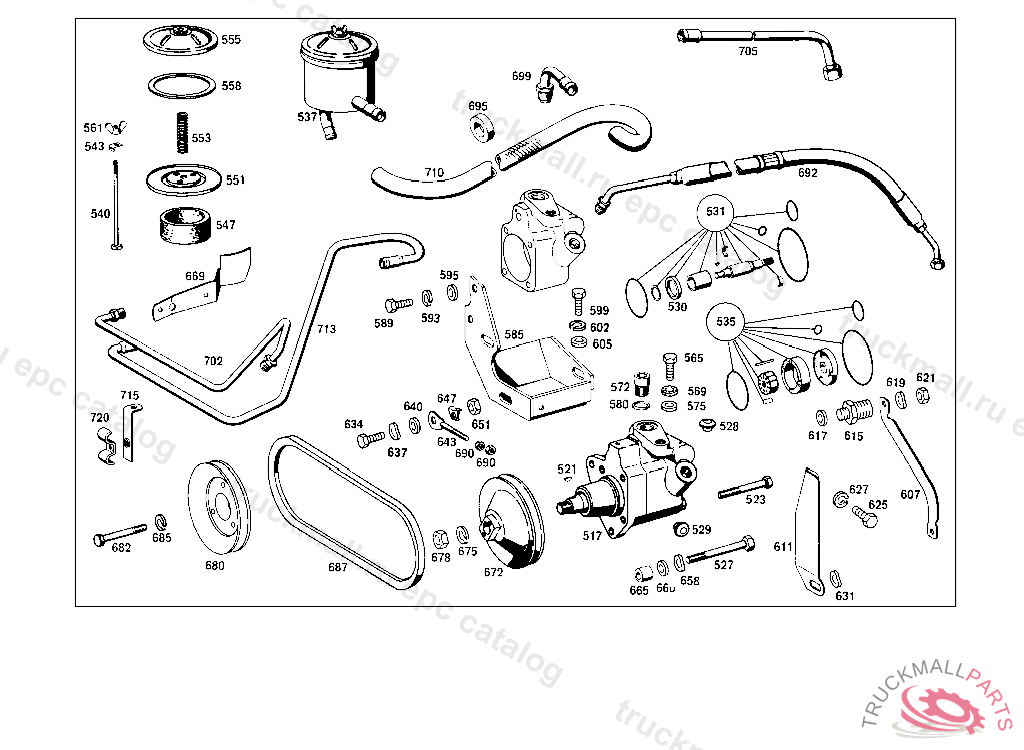

517
HYDRAULIC PUMP , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
521
KEY
523
SCREW
527
SCREW
528
SEAL CONE
529
SEAL CONE RETURN
530
SEAL RING
530
SEAL RING , Replaced By: A0189976047
531
REPAIR KIT
535
REPAIR KIT
537
OIL TANK
540
SCREW
543
LOCK
547
FILTER
551
WASHER
553
SPRING
555
COVER
558
GASKET
561
NUT
585
BRACKET
599
SCREW SUPPORT TO FENDER
599
SCREW , Replaced By: N304017008018
602
LOCK WASHER TAIL LAMP TO BRACKET
605
WASHER MOUNTING PLATE TO BODY FLOOR
611
STRUT
615
SCREW
617
SEAL RING
619
LOCK WASHER TAIL LAMP TO BRACKET
621
NUT
621
NUT , Replaced By: N304032008006
625
SCREW , Replaced By: N304017008016
625
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
627
LOCK WASHER TAIL LAMP TO BRACKET
631
SPRING WASHER STEERING COLUMN BRACKET TO CAB
634
SCREW REAR EXHAUST PIPE TO MUFFLER
637
SPRING WASHER STEERING COLUMN BRACKET TO CAB
640
WASHER
643
CLAMPING SCREW
647
LOCK , 002,003,005,011,017,12/52,22/62 FROM CHASSIS 011625-018697
651
NUT BATTERY CABLE
651
NUT BRACKET TO SUPPORT AND TO END PIECE
658
SPRING WASHER STEERING COLUMN BRACKET TO CAB
660
WASHER , Replaced By: N000433010510
665
SPACER RING 12,00 MM 12.00 MM, AS REQUIRED
669
BRACKET
672
PULLEY TO 127 460 05 80
675
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
678
NUT
687
NARROW V-BELT
690
NUT BALL PIVOT TO LEVER
692
HOSE
695
RUBBER RING
699
LINE FROM OIL TANK TO PUMP
705
LINE FOR RETURN LINE
710
HOSE80 MM, ORDER BY THE METER
999
BOOT , Replaced By: A0003381397
999
CLAMPING RING BOTTOM, NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
999
CLAMPING RING TOP, NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
999
BOOT , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
999
KEY BLANK, 000,001,004,010,016 UP TO CHASSIS 190317 EXCEPT FOR,SEE FOOTN.10,10/50,12/52,100,101,104,110,116 UP TO CHASSIS 358853 EXCEPT FOR SEE FOOTN.11,AND FOOTN.7
999
IGNITION SWITCH , 10/50,12/52 FROM CHASSIS 064452,20/60,22/62 FROM CHASSIS 070952
999
LOCKING MECHANISM
999
LOCKING MECHANISM
999
STEERING LOCK , UP TO CHASSIS 358853 EXCEPT FOR,SEE FOOTNOTE 011
999
STEERING LOCK , UP TO CHASSIS 332506 EXCEPT FOR,SEE FOOTNOTE 011
999
TUMBLER STATE KEY NO. WHEN ORDERING, 002060
999
STEERING LOCK , FROM CHASSIS 358854 ALSO INSTALLED ON,SEE FOOTNOTE 011
999
STEERING LOCK , FROM CHASSIS 362507 ALSO INSTALLED ON,SEE FOOTNOTE 011
999
RING DRAIN VALVE TO 000 432 08 07, NOT USED
999
REPAIR KIT PRESSURE VALVE
999
REPAIR KIT
999
REPAIR KIT , NO LONGER AVAILABLE
999
REPAIR KIT
999
ROLLER BEARING
999
SEAL RING PRESSURE VALVE TO 127 460 12 80
999
SEAL RING STEERING NUT BEARING 12.4X1.78 MM
999
SEAL RING
999
SEAL RING , Replaced By: A0139973648
999
SEAL RING
999
SEAL RING , Replaced By: A0149976148
999
SEAL RING
999
SEAL RING
999
SWITCH,AUTOMATIC , 000,001,004,010,016 FROM CHASSIS 190318 ALSO INSTALLED ON,SEE FOOTN.10,10/50,12/52,100,101,104,110,116 FROM CHASSIS 358854 ALSO INSTALLED ON,SEE FOOTN.11,AND FOOTN.9
999
SEAL RING STEERING NUT BEARING 75X3 MM
999
SEAL RING ,163201, 10/50 FROM IDENT NO. 163202-249772 SEE UNIT MICROFICHE,MODEL: 760.202 FROM IDENT NO. 249773 SEE UNIT MICROFICHE,MODEL: 760.204163470, 20/60 FROM IDENT NO. 163471-252864 SEE UNIT MICROFICHE,MODEL: 760.202 FROM IDENT NO. 249773 SEE UNIT MICROFICHE,MODEL: 760.204
999
SEAL RING STEERING WORM SECTOR SHAFT SEALING,163201, 10/50 FROM IDENT NO. 163202-249772 SEE UNIT MICROFICHE,MODEL: 760.202 FROM IDENT NO. 249773 SEE UNIT MICROFICHE,MODEL: 760.204163470, 20/60 FROM IDENT NO. 163471-252864 SEE UNIT MICROFICHE,MODEL: 760.202 FROM IDENT NO. 249773 SEE UNIT MICROFICHE,MODEL: 760.204
999
SEAL RING , UP TO CHASSIS: 011: 10/50,12/52 111381 011: 20/60,22/62 111334 007,008,015,017: 10/50,12/52 264453 007,008,015,017: 20/60,22/62 264100 060: 10/50,12/52 124096 060: 20/60,22/62 123757 062: 10/50,12/52 109096 062: 20/60,22/62 109078 FROM CHASSIS SEE UNIT SPARE PARTS LIST
999
SEAL RING
999
SEAL RING
999
SEAL RING
999
SEAL RING
999
SEAL RING STEERING WORM SECTOR SHAFT TO COVER 10X3 MM
999
SEAL RING
999
SEAL RING
999
SEAL RINGTO 388 476 71 69
999
STEER. COLUMN JACKET TUBE , 000,001,010 FROM CHASSIS 130558-190317 EXCEPT FOR,SEE FOOTNOTE 010,100,101,110 FROM CHASSIS 225648-362506 EXCEPT FOR,SEE FOOTN OTE 011
999
GASKET
999
CLAMP
999
INTERMEDIATE LEVER
999
STEER. COLUMN JACKET TUBE , 000,001,010 FROM CHASSIS 130558-190317 EXCEPT FOR,SEE FOOTNOTE 10, 100,101,110 FROM CHASSIS 225648-358853 EXCEPT FOR,SEE FOOTN OTE 11 ON SPECIAL REQUEST,DB POWER STEERING
999
STEER. COLUMN JACKET TUBE , 001,002,004,010,016 FROM CHASSIS 190318,ALSO INSTALLED ON,SEE FOOTNOTE 010,100,101,104,110,116 FROM CHASSIS 358854,ALSO INSTAL LED ON,SEE FOOTNOTE 011,AND FOOTNOTE 019 ON SPECIAL REQUEST,DB POWER STEERING
999
STEER. COLUMN JACKET TUBE , 001,002,004,010,016 FROM CHASSIS 190318 ALSO INSTALLED ON,SEE FOOTNOTE 010,100,101,104,110,116 FROM CHASSIS 362507 ALSO INSTAL LED ON,SEE FOOTNOTE 011,AND FOOTNOTE 019
999
STEERING SHAFT , 004,016 UP TO CHASSIS 190317 EXCEPT FOR,SEE FOOTNOTE 010,104,116 UP TO CHASSIS 358853 EXCEPT FOR,SEE FOOTNOTE 011,AND FOOTNOTE017 ON SPECIAL REQUEST,DB POWER STEERING AND FLOOR SHIFT
999
STEERING SHAFT , 001,002,004,010,016 FROM CHASSIS 190318,ALSO INSTALLED ON,SEE FOOTNOTE 010,100,101,104,110,116 FROM CHASSIS 358854,ALSO INSTAL LED ON,SEE FOOTNOTE 011,AND FOOTNOTE 019 ON SPECIAL REQUEST,DB POWER STEERING AND FLOOR SHIFT
999
COVERING STEERING PASSAGE, ON SPECIAL REQUEST,DB POWER STEERING
999
COVERING , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A1104620395, +001A1129900151
999
BOOT , TO 000 463 27 32
999
PITMAN ARM
999
EXPANSION PLUG
999
STEERING COUPLING , Replaced By: A3094600210, +002A1119900420, +002N007980008001
999
STEERING BOX COVER REPAIR SIZE BUSHING
999
COVER PLATE
999
STEERING BOX ASSEMBLY
999
COVERING , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A1114622995, +001A1129900151
999
COVERING , 20/60,000,001,010 FROM CHASSIS 130558-178581,22/62,000,001,010 FROM CHASSIS 130558-179684,20/60,100,101,110 FROM CHASSIS 22564 8-329967,22/62,100,101,110 FROM CHASSIS 225648-332553
999
STEERING WHEEL
999
SEAL RING
999
GASKET
999
THRUST WASHER 1,1 MM, AS REQUIRED
999
THRUST WASHER 1,2 MM, AS REQUIRED
999
THRUST WASHER 1,3 MM, AS REQUIRED
999
THRUST WASHER 1,4 MM, AS REQUIRED
999
THRUST WASHER 1,6 MM, AS REQUIRED
999
THRUST WASHER 1,7 MM, AS REQUIRED
999
THRUST WASHER 1,8 MM, AS REQUIRED
999
THRUST WASHER 1,9 MM, AS REQUIRED
999
THRUST WASHER 2,0 MM, TO BE ADAPTED DURING ASSEMBLY
999
COVER
999
STEERING COUPLING , Replaced By: A3094600210, +002A1119900420, +002N007980008001
999
STEERING COUPLING
999
PAD IVORY-COLORED
999
STEERING WHEEL , FROM CHASSIS: 073 002632
999
BUSHING ,F 189738
999
PROTECTIVE RING
999
PROTECTIVE RING , Replaced By: A6019900540
999
SCREW
999
WASHER
999
SPRING
999
SPRING
999
BUSHING
999
STRUT SUPPORT TO CRANKCASE
999
PULLEY TO 127 460 12 80
999
HYDRAULIC PUMP , Replaced By: A1274601280, +001A1214660815
999
WASHER , 000,001,004,010,016 FROM CHASSIS 153787-165464,100,101,104,110,116 FROM CHASSIS 270761-298911,002,003,005,011,017,10/50,20/60 FROM CHASSIS 011350-018697 002,003,005,011,017,12/52,22/62 FROM CHASSIS 011625-018697
999
SPACER RING 12,50 MM 12.50 MM, AS REQUIRED
999
SPACER RING 12,75 MM 12.75 MM, AS REQUIRED
999
SPACER RING 13,00 MM, AS REQUIRED
999
SPACER RING 12,25 MM 12.25 MM, AS REQUIRED
999
STEERING WORM WITH STEERING NUT, 20/60 UP TO CHASSIS 022038,FROM CHASSIS 022039-252864 SEE SPARE PARTS LIST 760.202,FROM CHASSIS 252865 SEE SPARE PARTS LIST 760.204
999
WASHER
999
SCREW SWITCH TO STEERING LOCK
999
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
999
COTTER PIN LEVER TO ROD
999
COTTER PIN CONNECTOR TO BRAKE PRESSURE REGULATOR LEVER
999
COTTER PIN DRAG LINK TO LEVER
999
WASHER , Replaced By: N000125004319
999
WASHER BRACKET TO SUPPORT
999
LOCK WASHER
999
LOCK WASHER. SPRING LOCK WASHER ELECTRIC CABLE TO HORN TO 004 542 44 20 /45 20
999
SPRING WASHER , Replaced By: N000137008212
999
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
999
SCREW
999
SCREW COVER PLATE TO BRACKET
999
SCREW , Replaced By: N304017006016
999
SCREW BRACKET TO SIDE MEMBER
999
NUT
999
NUT , Replaced By: N308673014001
999
NUT
999
STUD BOLT
999
SCREW , Replaced By: N000961010031
999
SCREW , Replaced By: N308676010023
999
NUT
999
SEAL RING SCREW PLUG
999
SEAL RING LINE CONNECTION
999
SCREW SWITCH TO BEARING BODY
999
SCREW ELECTRIC CABLE TO HORN
999
WASHER , Replaced By: N009021006208
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
SCREW PUMP TO BRACKET
999
NUT BRACKET TO SIDE MEMBER,K 035196
999
CLAMP
999
LOCK , UP TO CHASSIS: 005,007,008,015,017 207357 011 101648 060 102313 062 101808
999
LOCK WASHER T-FITTING TO BRACKET
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
999
CLAMP
