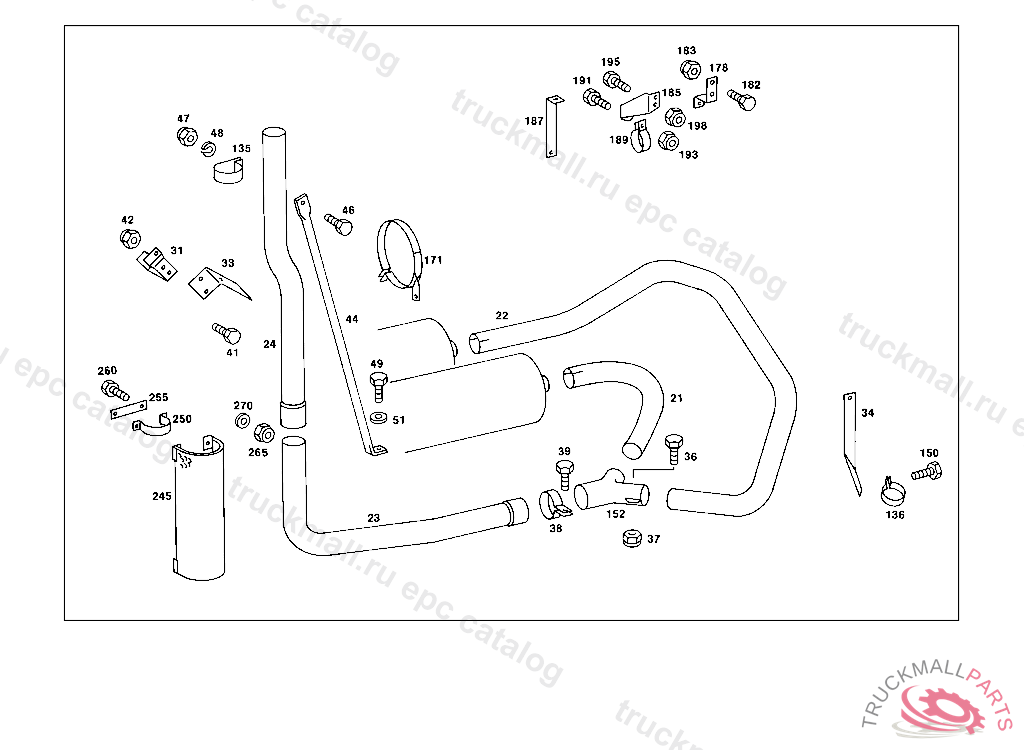

Поз.
Артикул
Описание
21
REAR EXHAUST PIPE EXHAUST MUFFLER,LEFT
22
REAR EXHAUST PIPE EXHAUST MUFFLER,RIGHT
23
REAR EXHAUST PIPE CENTRAL PART,BOTTOM
24
REAR EXHAUST PIPE TOP
24
REAR EXHAUST PIPE TOP,4 697326
31
BRACKET UPPER EXHAUST PIPE TO BRACKET
33
BRACKET UPPER EXHAUST PIPE TO BRACKET
34
BRACKET REAR RIGHT EXHAUST PIPE
36
SCREW , Replaced By: N304017008021
36
SCREW PIPE CLAMP
37
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
37
NUT , Replaced By: N913004008001
38
CLAMP , Replaced By: N071555100501
38
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
39
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
39
SCREW , Replaced By: N304017008027
41
SCREW BRACKET TO SIDE MEMBER
41
SCREW STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
41
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
41
SCREW , Replaced By: N308676014020
42
NUT , Replaced By: N910113014001
42
NUT BRACKET TO SIDE MEMBER
44
BRACKET STRUT
46
SCREW PIPE CLAMP
46
SCREW , Replaced By: N304017008021
47
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
47
NUT , Replaced By: N913004008001
48
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
49
SCREW , Replaced By: N308676012026
49
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
49
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
51
WASHER
135
CLAMP EXHAUST PIPE TO BRACKET
135
CLAMP , Replaced By: A6454921140
135
CLAMP UPPER EXHAUST PIPE TO BRACKET
136
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
150
SCREW BRACKET TO SIDE MEMBER
150
SCREW , Replaced By: N308676014020
150
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
150
SCREW EXHAUST PIPE TO BRACKET 14X1.5X50
150
SCREW , Replaced By: N304017008027
150
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
150
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
152
FITTING CONNECTOR
171
BRACKET EXHAUST PIPE TO AIR RESERVOIR
178
BRACKET REAR EXHAUST MUFFLER,4 270414
178
BRACKET FRONT EXHAUST MUFFLER,4 270414
182
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
182
SCREW , Replaced By: N308676012026
182
SCREW CONSOLE TO SIDE MEMBER
183
NUT SUPPORT TO SIDE MEMBER
185
BRACKET REAR
185
BRACKET FRONT
187
BRACKET FRONT EXHAUST MUFFLER
187
BRACKET , Replaced By: A3954911141
189
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
191
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
191
SCREW , Replaced By: N304017008027
193
NUT , Replaced By: N913004008001
193
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
195
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
195
SCREW , Replaced By: N308676012012
198
NUT SUPPORT TO SIDE MEMBER
245
PROTECTIVE PLATE EXHAUST PIPE
250
CLAMP , Replaced By: A4374920440
250
CLAMP HEAT SHIELD TO TAILPIPE
255
BRACKET , Replaced By: A3184924841
255
BASE PLATE HEAT SHIELD TO TAILPIPE
260
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
260
SCREW , Replaced By: N304017008016
265
NUT , Replaced By: N913004008001
265
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
270
WASHER , Replaced By: N000125008443
270
WASHER EXHAUST MUFFLER TO STRAP
999
REAR EXHAUST PIPE ,4 239538
999
BRACKET REAR EXHAUST PIPE
999
BRACKET REAR EXHAUST PIPE
999
REAR EXHAUST PIPE , WITH PARKING BRAKE VALVE ON ENGINE TUNNEL
999
REAR EXHAUST PIPE , 015 5 006739 016 5 005656 017 5 007848 111 4 946455 112 4 947213 113 4 948528 116 4 965406 117 4 946377
999
REAR EXHAUST PIPE (TAIL PIPE),5 129244
999
BRACKET EXHAUST PIPE TO SIDE MEMBER
999
BRACKET TAIL PIPE ON THE RIGHT
999
BRACKET TAIL PIPE ON THE RIGHT
999
REAR EXHAUST PIPE LEFT
999
REAR EXHAUST PIPE LONG,EXHAUST MUFFLER,RIGHT,4 827815
999
REAR EXHAUST PIPE , 415 5 014668 416 5 000515 417 4 972023
999
BRACKET EXHAUST PIPE SUSPENSION
999
REAR EXHAUST PIPE , Replaced By: A3874921704
999
BRACKET REAR EXHAUST PIPE, WITH PARKING BRAKE VALVE ON ENGINE TUNNEL
999
REAR EXHAUST PIPE TOP,4 278268
999
REAR EXHAUST PIPE ,4 876710
999
REAR EXHAUST PIPE REAR,4 239538
999
REAR EXHAUST PIPE ,4 324732
999
REAR EXHAUST PIPE BOTTOM LATERAL,4 324732
999
REAR EXHAUST PIPE ,4 468225
999
REAR EXHAUST PIPE ,4 468225
999
REAR EXHAUST PIPE ,4 468225
999
REAR EXHAUST PIPE ,4 468225
999
REAR EXHAUST PIPE ,5 007175
999
REAR EXHAUST PIPE ,5 007175
999
BRACKET REAR EXHAUST PIPE
999
REAR EXHAUST PIPE
999
BRACKET REAR EXHAUST PIPE,4 187782
999
BRACKET REAR EXHAUST PIPE
999
REAR EXHAUST PIPE
999
BRACKET
999
REAR EXHAUST PIPE
999
REAR EXHAUST PIPE TOP
999
BRACKET (STRUT),FROM TAIL PIPE TO SIDE MEMBER
999
BRACKET
999
BRACKET EXHAUST PIPE SUSPENSION,4 270413
999
REAR EXHAUST PIPE
999
BRACKET
999
REAR EXHAUST PIPE
999
BRACKET REAR EXHAUST PIPE
999
BRACKET REAR EXHAUST PIPE,4 158453
999
REAR EXHAUST PIPE ,4 158453
999
BRACKET
999
REAR EXHAUST PIPE
999
BRACKET REAR EXHAUST PIPE,4 187783-4 206568
999
BRACKET REAR EXHAUST PIPE,4 187783
999
BRACKET REAR EXHAUST PIPE
999
BRACKET , Replaced By: A3894921441
999
BRACKET
999
REAR EXHAUST PIPE
999
BRACKET REAR EXHAUST PIPE
999
REAR EXHAUST PIPE ,4 187782
999
BRACKET REAR EXHAUST PIPE
999
REAR EXHAUST PIPE ,4 697326, Replaced By: A3874929504, +001A0004900563
999
REAR EXHAUST PIPE ,4 324718
999
REAR EXHAUST PIPE
999
REAR EXHAUST PIPE ,4 324718
999
REAR EXHAUST PIPE
999
REAR EXHAUST PIPE TOP
999
REAR EXHAUST PIPE ,4 6973264 261892, Replaced By: A3874927604, +001A0004900463
999
BRACKET UPPER EXHAUST PIPE TO FENDER
999
REAR EXHAUST PIPE ,4 6973264 261892, Replaced By: A3894923104, +001A0004900463
999
BRACKET REAR EXHAUST PIPE
999
REAR EXHAUST PIPE
999
REAR EXHAUST PIPE ,4 135870
999
REAR EXHAUST PIPE
999
REAR EXHAUST PIPE
999
REAR EXHAUST PIPE ,4 114410
999
BRACKET REAR EXHAUST PIPE
999
BRACKET REAR EXHAUST PIPE,4 114410
999
REAR EXHAUST PIPE ,4 187782
999
BRACKET REAR EXHAUST PIPE
999
BRACKET REAR EXHAUST PIPE
999
BRACKET REAR EXHAUST PIPE,4 324717
999
REAR EXHAUST PIPE , FROM CHASSIS 960006-4 324717, Replaced By: A3874928604, +001A3874926641
999
BRACKET REAR EXHAUST PIPE
999
REAR EXHAUST PIPE , FROM CHASSIS 960006-4 324717, Replaced By: A3874928504, +001A3874926741
999
BRACKET EXHAUST PIPE SUSPENSION, NOT USED
999
REAR EXHAUST PIPE ,960005
999
REAR EXHAUST PIPE ,960005
999
BRACKET REAR EXHAUST PIPE
999
BRACKET REAR EXHAUST MUFFLER
999
REAR EXHAUST PIPE , Replaced By: A3874921704
999
BRACKET REAR EXHAUST PIPE
999
REAR EXHAUST PIPE
999
BRACKET REAR EXHAUST PIPE,4 187782
999
REAR EXHAUST PIPE
999
BRACKET REAR EXHAUST PIPE
999
REAR EXHAUST PIPE
999
REAR EXHAUST PIPE ,4 187782
999
BRACKET REAR EXHAUST PIPE,960005
999
REAR EXHAUST PIPE ,960005
999
REAR EXHAUST PIPE ,960005
999
REAR EXHAUST PIPE ,4 697326, Replaced By: A3874920205, +001A0004900563
999
BRACKET FRONT AND REAR EXHAUST MUFFLERS
999
EXHAUST PIPE FRONT,REAR RIGHT PART
999
EXHAUST PIPE FRONT,REAR LEFT PART
999
BRACKET REAR EXHAUST MUFFLER,4 239537
999
BRACKET RUBBER BUFFER,5 129244
999
DAMPING PAD PARTICLE FILTER
999
CLAMP , Replaced By: A3434920340
