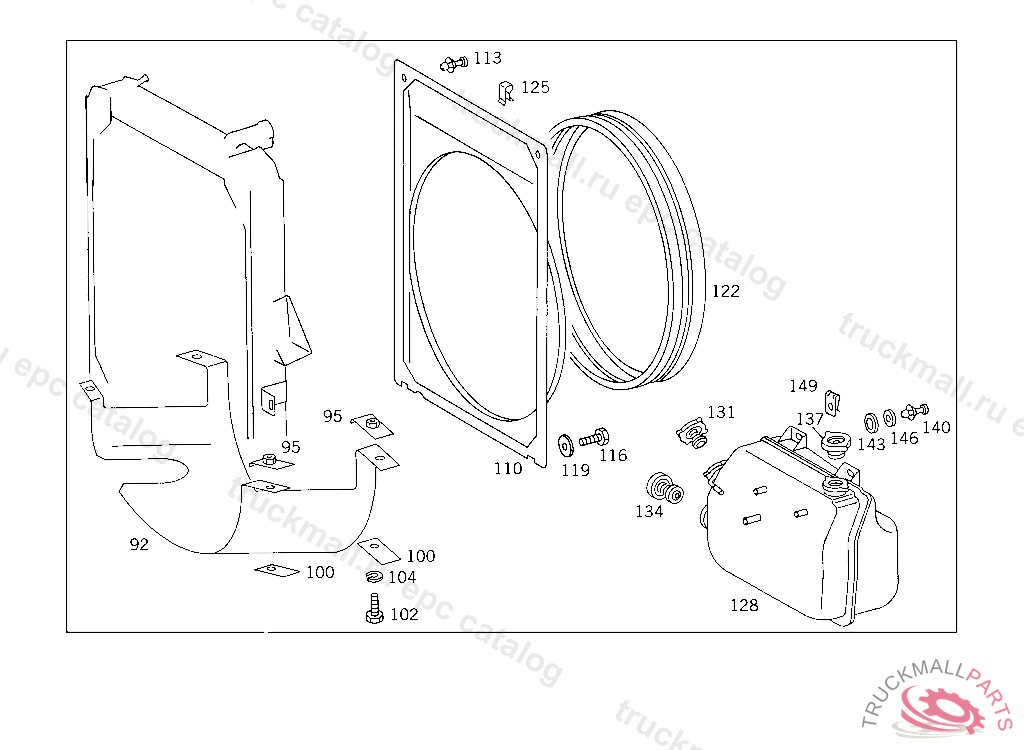

Поз.
Артикул
Описание
92
AIR BAFFLE ,D 147396
92
AIR BAFFLE ,D 008205D 147395
95
BRACKET AIR BAFFLE,D 008205
95
BRACKET AIR BAFFLE,D 008205
95
BRACKET AIR BAFFLE,D 008205
100
SHIM ,D 008205
102
SCREW COLD START SYSTEM TO BRACKET
102
SCREW COLD START SYSTEM TO BRACKET
104
LOCK WASHER PARKING BRAKE VALVE TO WINDOW SILL
110
FAN SHROUD
110
FAN SHROUD
110
FAN SHROUD RADIATOR
113
CLAMPING SLEEVE FAN SHROUD TO RADIATOR
116
SCREW OVERLOAD PROTECTOR TO BRACKET
119
WASHER , Replaced By: N009021006208
122
BOOT FAN SHROUD
125
CLIP-TYPE NUT FAN SHROUD TO RADIATOR
128
TANK (EXPANSION TANK)
131
RADIATOR CAP FILLER NECK
134
RADIATOR CAP
137
RADIATOR CAP CENTRAL
140
RIVET COOLANT LINE ON FAN SHROUD
143
RUBBER MOUNTING EXPANSION TANK TO BRACKET
146
WASHER , Replaced By: N000125017016
149
CLIP RESERVOIR TO CAB FRONT PANEL
149
LOCK AT WATER EXPANSION TANK
999
AIR BAFFLE RADIATOR
