Поз.
Артикул
Описание
5

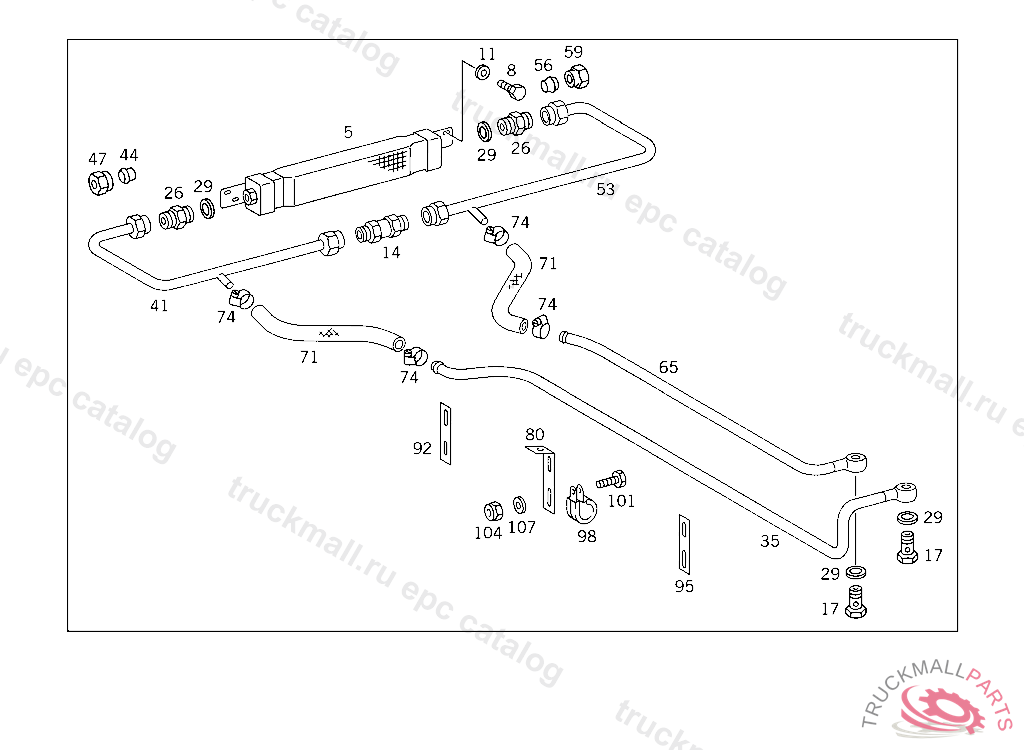

RADIATOR (OIL COOLER)
5
OIL COOLER (OIL COOLER)
8
SCREW SWITCH TO BRACKET 8X16
11
WASHER TRAILER PLUG SOCKET TO BRACKET
14
VALVE (OVERFLOW VALVE)
14
VALVE (OVERFLOW VALVE)
17
HOLLOW SCREW OIL LINE TO TRANSMISSION
26
FITTING AIR DEHYDRATOR,CONNECTION: "10",5 433280
29
SEAL RING LINE CONNECTION
35
PIPE FROM TRANSMISSION TO RETURN HOSE,B 927332
41
PIPE FROM HOSE TO OIL COOLER RETURN,B 927332
44
GLAND LINE CONNECTION
47
UNION NUT LINE CONNECTION
53
PIPE HOSE TO OIL COOLER,B 927332
56
GLAND LINE CONNECTION
59
UNION NUT LINE CONNECTION
65
PIPE , Replaced By: A3882607885
65
PIPE HOSE TO TRANSMISSION CASE
71
HOSE , Replaced By: A3859971682
74
CLAMP FROM EXPANSION TANK TO ENGINE
74
CLAMP AIR COMPRESSOR
80
BRACKET LINE MOUNTING,B 925621
92
BRACKET PEDAL BEARING BRACKET
95
BRACKET LINE MOUNTING,B 925621
98
CLAMP OIL DIPSTICK TO RADIATOR
101
SCREW BATTERY POS. CABLE TO BRACKET,PB004444
101
SCREW BATTERY POS. CABLE TO BRACKET,PB004444
104
NUT PUMP TO BRACKET
104
NUT PUMP TO BRACKET
107
WASHER PLUG SOCKET TO BRACKET
107
WASHER PLUG SOCKET TO BRACKET
