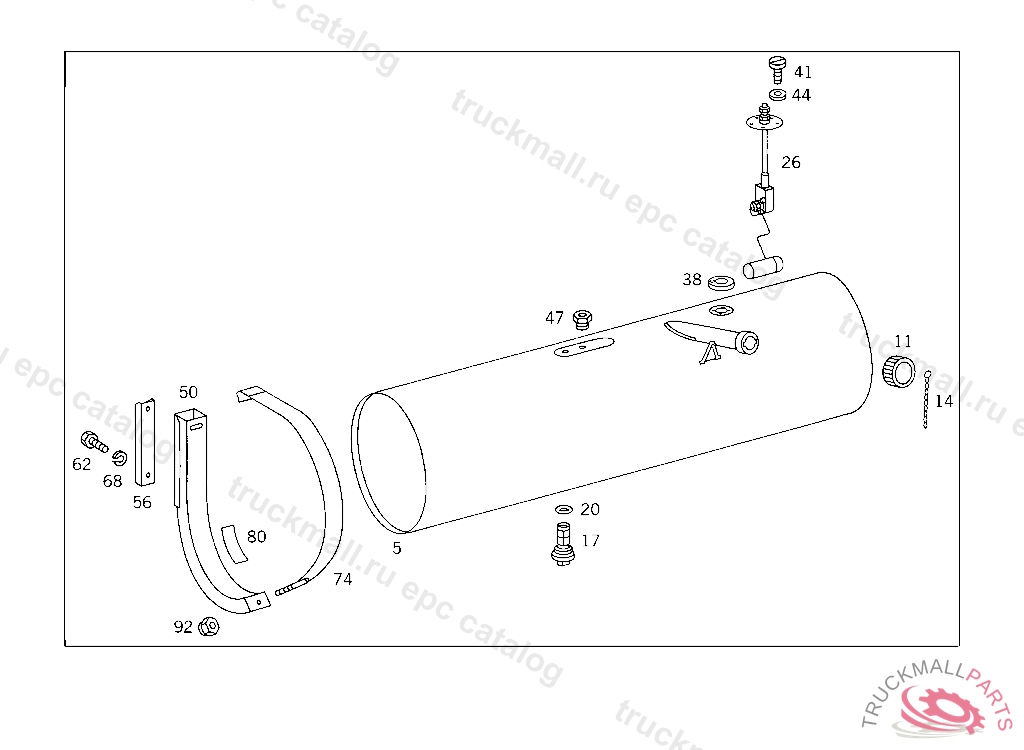

Поз.
Артикул
Описание
5
FUEL TANK LESS SENDER UNIT 210L
11
FILLER CAP
14
CHAIN FILLER CAP
17
FUEL STRAINER
17
FUEL STRAINER
20
SEAL RING FUEL STRAINER SCREEN
20
SEAL RING FUEL DISCHARGE
26
SENDER UNIT TANK
38
GASKET FUEL GAUGE SENDER UNIT TO FUEL TANK
38
GASKET SENDER UNIT AND COVER TO FUEL TANK
41
SCREW
44
SEAL RING SENDER UNIT AND COVER TO FUEL TANK
47
FITTING
50
SUPPORT FUEL TANK
56
BASE CONSOLE TO SIDE MEMBER
62
SCREW , Replaced By: N308676014008
68
LOCK WASHER SUPPORT TO SIDE MEMBER
74
STRAP FUEL TANK
80
RUBBER STRIP , Replaced By: A3459837391
80
CARDBOARD FUEL TANK TO SUPPORT, 344.058 UP TO SHASSIS 659793
92
NUT CABLE TO STARTING MOTOR,TERMINAL 30
92
NUT BRACKET TO RETARDER
92
NUT , Replaced By: N910113010000
999
SENDER UNIT TANK
999
SUPPORT FUEL TANK, NOT USED
