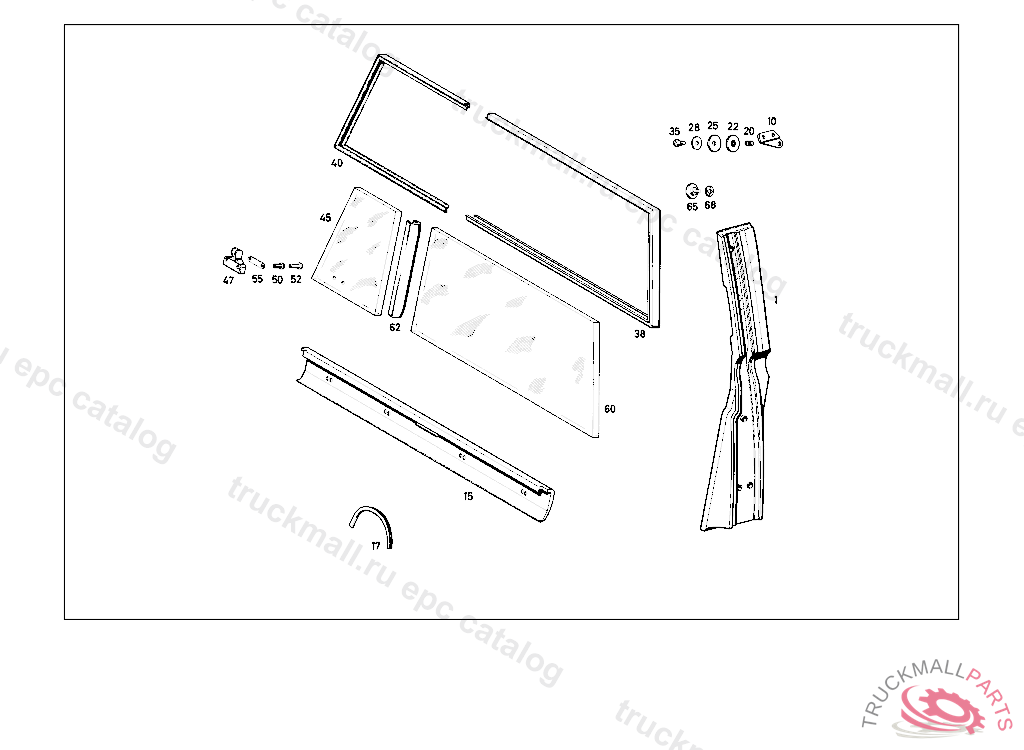

Поз.
Артикул
Описание
1
FRAME LEFT, STATE COLOR NUMBER WHEN ORDERING
10
GUIDE , Replaced By: A1157110722
15
PAD , STATE COLOR NUMBER WHEN ORDERING
17
EDGE GUARD SECTION , Replaced By: A0029873572
17
EDGE GUARD SECTION , Replaced By: A0009873272
17
EDGE GUARD SECTION SEAT, Replaced By: A0019872272
20
PRESSURE SPRING , UP TO CHASSIS: 114.010 016831 114.015,017 014204 115.010 015131 115.015 012119 115.110,112 032744 115.115 014543
22
RING
25
WASHER
28
PART NAME MISSING , Replaced By: A1159903440
35
SCREW , Replaced By: A1159840033
38
FRAME
40
GUIDE RAIL , Replaced By: A1157110137
45
GLASS PANE
47
LOCK , UP TO CHASSIS: 114.010 011998 114.015 008112 115.010 008264 115.015 005442 115.110 019469 115.115 008968
50
BUSHING
52
BUSHING
55
PLATE
60
GLASS PANE
62
PAD , STATE COLOR NUMBER WHEN ORDERING
65
SCREW
68
WASHER
999
WASHER
999
SCREW
999
WASHER PROTECTIVE PLATE TO BRACKET,5 502998
999
LOCK , FROM CHASSIS:114.010 011999 114.015 008113 115.010 008265 115.015 005443 115.110 019470 115.115 008969
999
FRAME RIGHT, STATE COLOR NUMBER WHEN ORDERING
999
GUIDE RAIL , Replaced By: A1157110137
999
GUIDE RAIL TOP
999
GUIDE , Replaced By: A1157110822
999
GUIDE RAIL BOTTOM
999
GUIDE LEFT
999
GUIDE RIGHT
999
SCREW (SLIDING GUIDE TO GUIDE)
999
RUBBER RING , FROM CHASSIS:114.010 016832 114,015,017 014205 115.010 015132 115.015 012120 115.110,112 032745 115.115 014544
999
WASHER , Replaced By: A1089900340
999
WASHER , FROM CHASSIS:114.010 016832 114,015,017 014205 115.010 015132 115.015 012120 115.110,112 032745 115.115 014544
999
SHEET METAL SCREW
999
SHEET METAL SCREW
999
SCREW
999
SCREW
