Поз.
Артикул
Описание

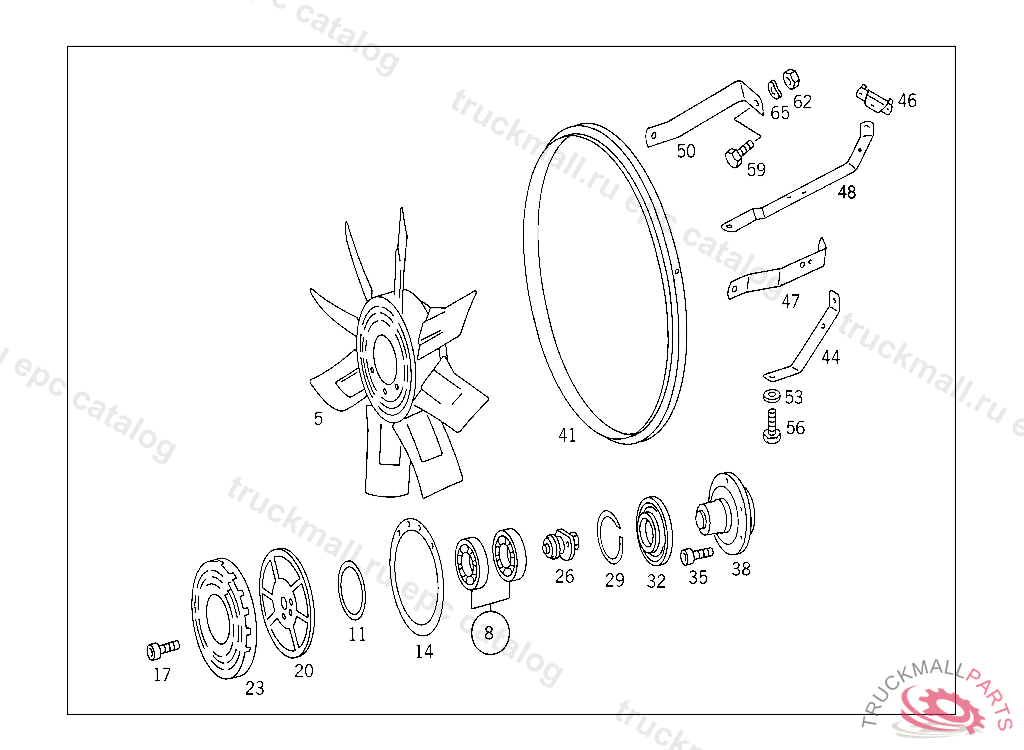

5
FAN 8-BLADE,WITH FLEXIBLE FAN HUB, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
5
FAN 8-BLADE,WITH FLEXIBLE FAN HUB, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
8
ANGULAR CONTACT BEARINGTO 001 205 95 06
8
BALL BEARING , Replaced By: A0019816027
11
GASKET
14
GASKET FRONT COVER
14
GASKET , Replaced By: A0002060580
17
SCREW COVER TO FAN TO 001 205 95 06
20
PRIMARY CUPTO 001 205 95 06
23
COVERTO 001 205 95 06
26
CLAMPING PIECE (SLIDE)
29
LOCK AS REQUIRED 2.0 MM
29
LOCK AS REQUIRED 2.2 MM
29
LOCK AS REQUIRED 2.3 MM
29
LOCK AS REQUIRED 2.1 MM
32
SEAL RING
35
SCREW
38
FLANGE
41
AIR BAFFLE ON ENGINE END
41
AIR BAFFLE
44
BRACKET COMPRESSED AIR LINE MOUNTING
44
BRACKET AT OIL PAN
46
BRACKET BOTTOM
46
BRACKET RIGHT
47
BRACKET 3/2-WAY SOLENOID VALVE, TO BE ADAPTED DURING ASSEMBLY
48
BRACKET LEFT
50
BRACKET RIGHT,795970
50
BRACKET
53
WASHER RADIATOR TO RUBBER MOUNTING
56
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
56
SCREW , Replaced By: N304017010028
59
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
59
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
62
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
62
NUT , Replaced By: N913023010002
65
SPRING WASHER STEERING COLUMN BRACKET TO CAB
999
RECEPTACLE SILICONE GREASE
999
FAN , Replaced By: A0022057806
999
AIR BAFFLE , Replaced By: A4422000195
999
BRACKET , Replaced By: A4232050740
999
BRACKET , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A4422001240
999
BRACKET
