Mercedes N000000001606 - ЛАМПА

G 500 463.202 FROM CHASSIS 144226

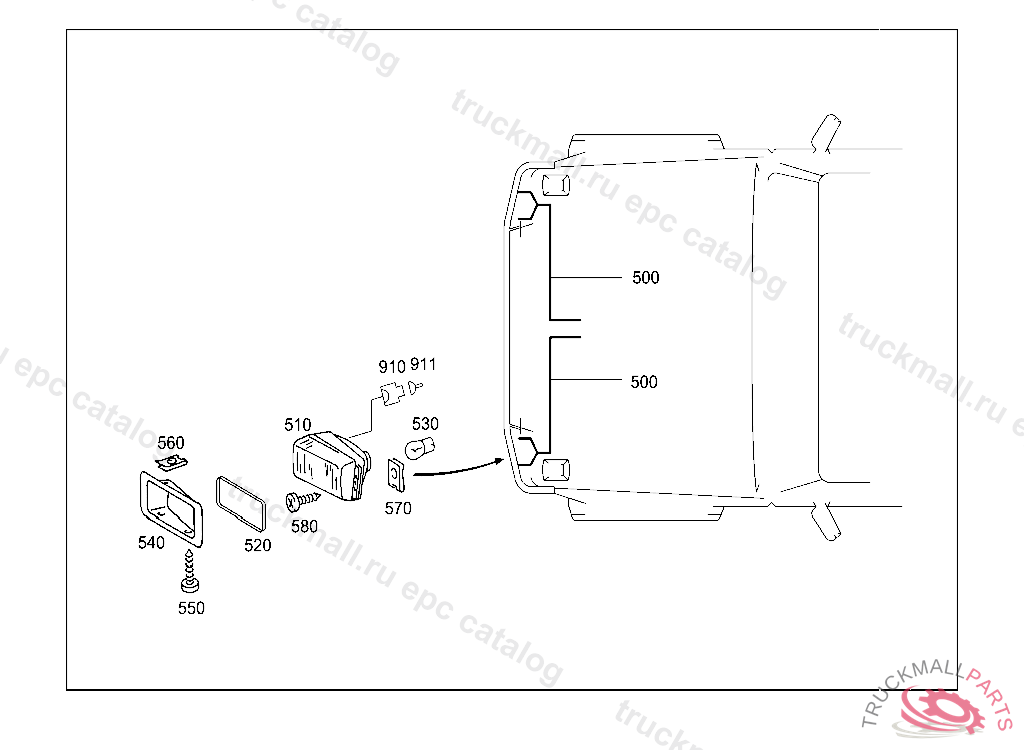

82 ELECTRICAL SYSTEM - 175 FRONT LIGHTING IL. 2

Поз.
Артикул
Описание
510
A1698201656
FOGLAMP RIGHT FOGLAMP
510
A1698201556
FOGLAMP IN BUMPER,LEFT
530
N000000001606
BULB LEFT FOGLAMP H11 12V-55W
540
A4638260324
ORNAMENTAL COVER LEFT FOGLAMP, X 16692520060531 TO BE ADAPTED DURING ASSEMBLY TO BE PAINTED PRIOR TO INSTALLATION
540
A4638260424
ORNAMENTAL COVER RIGHT FOGLAMP, X 16692520060531 TO BE ADAPTED DURING ASSEMBLY TO BE PAINTED PRIOR TO INSTALLATION
550
N000000000448
TAPPING SCREW SWITCH TO BRACKET MBN 10169-ST3.5X16-C
560
A0009948245
LOCK
570
A0039948645
LOCK NUT BRACKET TO RIGHT FRONT SIDE MEMBER ST 4.8/2.5-5.0 MM
580
N000000000529
SHEET METAL SCREW BRACKET TO FIRE WALL
910
A0405456328
PIN BUSHING HOUSING LEFT FOGLAMP 2-PIN SLK2.8,E 5/1
911
A0005403905
ELECTRICAL LINE1.5 MM2 SLK2.8, CONNECTORS MUST ALSO BE ORDERED IN ACC. WITH THE TOTAL CABLE C ROSS-SECTION TO BE CONNECTED. SEE WIS FOR REPAIR INSTRUCTIONS.SOLDER CONNECTOR SLEEVES:TOTAL WIRE CROSS-SECTION: A 001 546 99 41GREEN0.7 -2.4 MM2 A 002 546 00 41RED2.0 -4.0 MM2 A 002 546 01 41BLUE 3.5 -8.0 MM2 A 002 546 11 41YELLOW 7.5 - 12.0 MM2 BUTT JOINT: A 002 546 13 41 0.5 MM2 A 002 546 14 41 0.8 MM2 A 002 546 15 41 1.3 MM2 A 002 546 16 41 2.0 MM2
