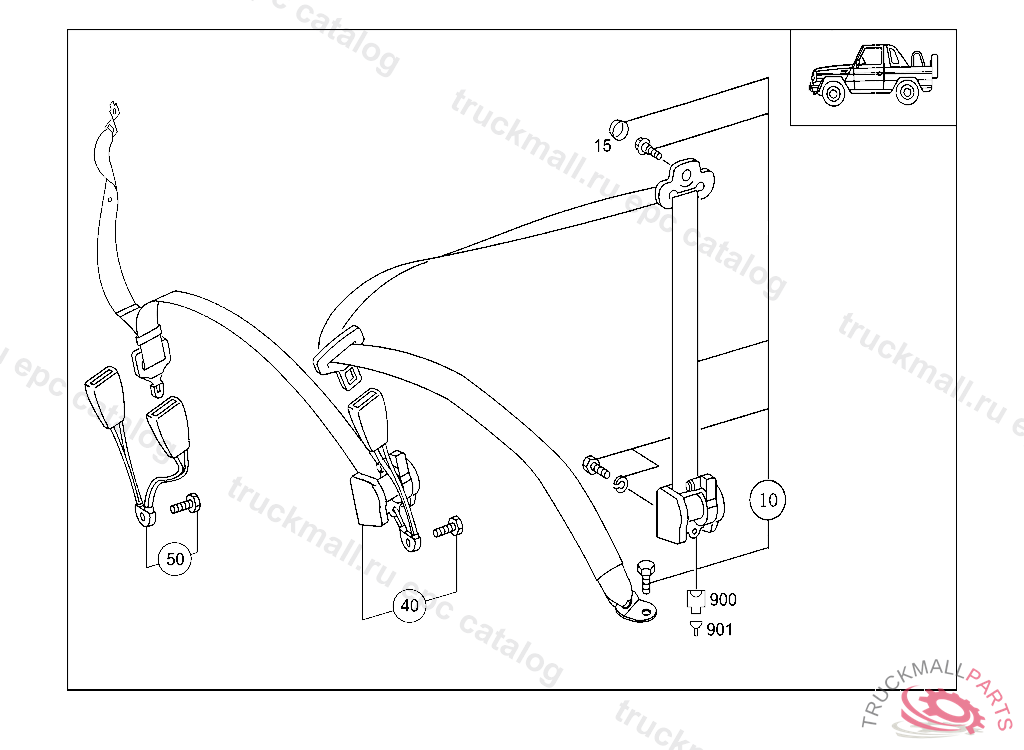

G 500 - 463.202 FROM CHASSIS 144226 - 92 REAR SEAT BENCH

10

SEAT BELT REAR SEAT BENCH,LEFT

10

SEAT BELT REAR SEAT BENCH,RIGHT, 9A86QFT463A0322 BLACK

15

CAP SEAT BELT GUIDE

50

SEAT BELT BUCKLE LEFT REAR

50

SEAT BELT BUCKLE

900

PLUG FRONT EMERGENCY TENSIONING RETRACTOR, FROM IDENT-NO. A 009128 ALSO INSTALLED IN: 007674,007709-007711,008155,008277,008291,008477-008478,008814-008815,009019,009026,009033,009040, 009093-009096,009113-009117. X 700000

901

REP.SET CONTACT0.5 MM2 ELO, CONNECTORS MUST ALSO BE ORDERED IN ACC. WITH THE TOTAL CABLE C ROSS-SECTION TO BE CONNECTED. SEE WIS FOR REPAIR INSTRUCTIONS.SOLDER CONNECTOR SLEEVES:TOTAL WIRE CROSS-SECTION: A 001 546 99 41GREEN0.7 -2.4 MM2 A 002 546 00 41RED2.0 -4.0 MM2 A 002 546 01 41BLUE 3.5 -8.0 MM2 A 002 546 11 41YELLOW 7.5 - 12.0 MM2 BUTT JOINT: A 002 546 13 41 0.5 MM2 A 002 546 14 41 0.8 MM2 A 002 546 15 41 1.3 MM2 A 002 546 16 41 2.0 MM2
