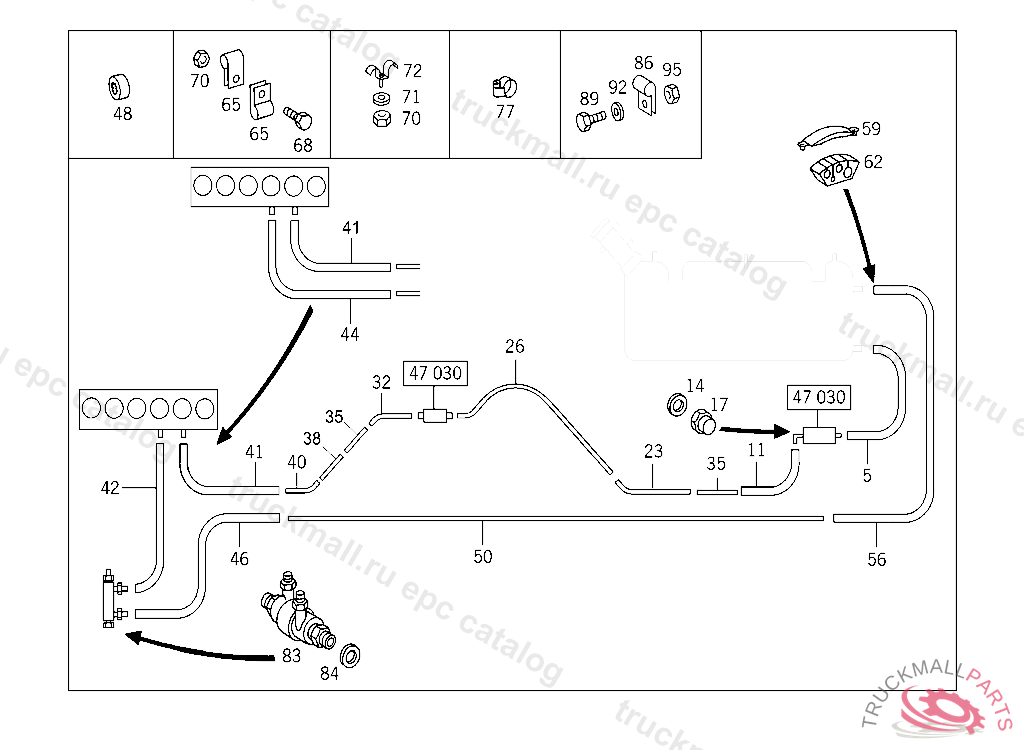

Поз.
Артикул
Описание
5
FUEL HOSE
11
FUEL HOSE FROM FUEL PUMP TO FUEL LINE TO A 461 470 01 04
14
SEAL RING CHECK VALVE,CONNECTION "1",4 704213
14
SEAL RING , Replaced By: N007603012102
17
NUT
23
HOSE BETWEEN FUEL LINE AND FUEL PUMP 280 MM
26
LINE PUMP,FILTER & FUEL ACCUMULATOR TO BRACKET
32
FUEL HOSE FUEL FILTER
35
LINE FEED
38
HOSE
40
LINE FEED 200GE-300GE
41
LINE FEED
44
LINE RETURN
46
LINE RETURN 200 GE-300 GE
48
RUBBER RING
50
LINE RETURN, TO BE ADAPTED DURING ASSEMBLY
56
HOSE BETWEEN RETURN LINE AND FUEL TANK TO A 461 470 00 40
56
HOSE , Replaced By: A4614760226
59
BRACKET FUEL LINE TO FUEL TANK
59
BRACKET , Replaced By: A4634710941
62
DAMPING STRIP AT TANK
65
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
68
SCREW PROTECTION PLATE TO BRACKET
70
NUT BALL PIVOT TO LEVER
77
CLAMP FROM VENT PIPE TO FILLER NECK
77
LOOM TIE
77
HOSE CLAMP LINE MOUNTING
77
LOOM TIE FUEL HOSE TO RETURN LINE
77
CLAMP , Replaced By: A0059970190
77
LOOM TIE , Replaced By: A1049970190
77
LOOM TIE , Replaced By: A1249971990
83
COOLER ,A 144703MOTOR 104.990, Replaced By: A1404760217
83
COOLER ,A 144703MOTOR 104.990, Replaced By: A1404760117
83
COOLER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. F 037221, Replaced By: A1404760017
83
COOLER (FUEL COOLER),A 144703MOTOR 104.990
84
O-RING HOSE TO EXPANSION VALVE 17X2
86
CLAMP OIL LINE TO BRACKET
89
SCREW COVER PLATE TO BRACKET
92
WASHER COMPRESSED AIR LINE TO BRACKET
92
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
95
NUT BALL PIVOT TO LEVER
999
LINE FROM PRESSURE REGULATOR VALVE TO FUEL COOLER
999
SPACER TUBE
