Поз.
Артикул
Описание

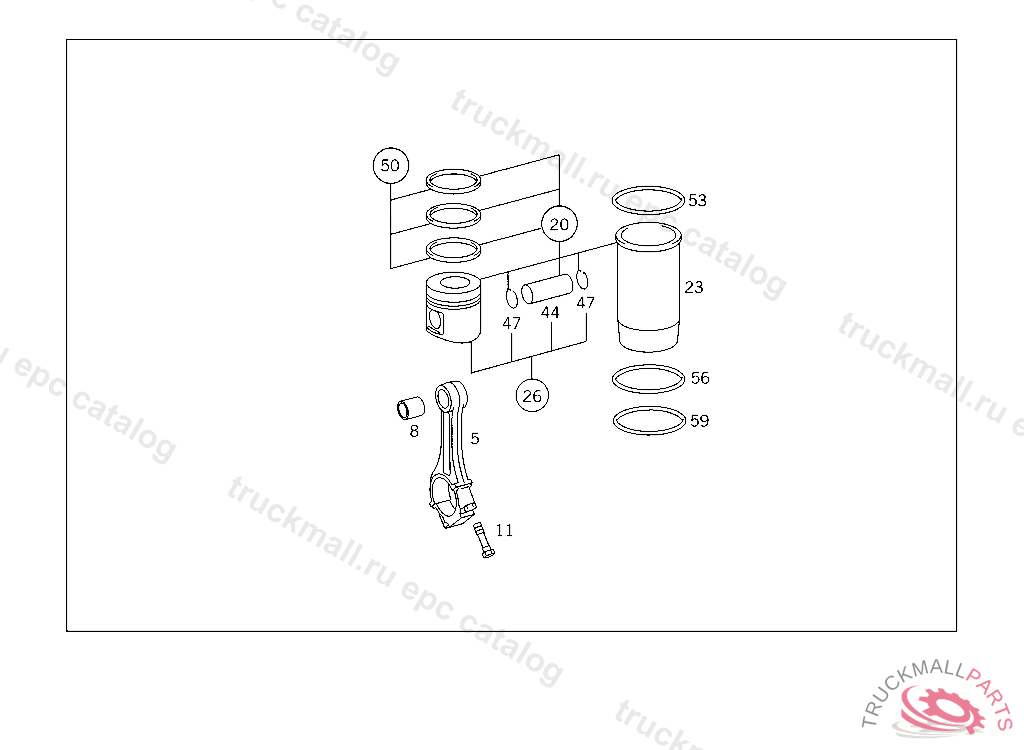

5
CONNECTING ROD , Replaced By: A4470300820
5
CONNECTING ROD , Replaced By: A4470300420
5
CONNECTING ROD
8
PISTON PIN BUSHINGTO 447 030 03 20
8
PISTON PIN BUSHINGTO 407 030 07 20, 447 030 04 20
8
PISTON PIN BUSHINGTO 447 030 03 20
11
SCREW CONNECTING ROD COVER TO CONNECTING ROD
20
PISTON WITH CYLINDER LINER,ACCORDING TO FITTING SIZE C-C
20
PISTON , Replaced By: A4760300837
23
CYLINDER LINER ACCORDING TO FITTING SIZE C 127.995
26
PISTON ACCORDING TO FITTING SIZE C 127.995,MAHLE
26
PISTON , Replaced By: A4760301717
44
PISTON PIN
47
SNAP RING
50
PISTON RING PARTS KIT
53
SEAL RING CYLINDER LINER TO CYLINDER CRANKCASE, TOP 0.50 MM
53
SEAL RING CYLINDER LINER TO CYLINDER CRANKCASE, TOP 0.15 MM
53
SEAL RING , Replaced By: A0259978448
53
SEAL RING , Replaced By: A4420110259
53
SEAL RING CYLINDER LINER TO CYLINDER CRANKCASE, TOP, GROOVE: II
56
SEAL RING , Replaced By: A0259978548
56
SEAL RING CYLINDER LINER TO CYLINDER CRANKCASE, BOTTOM III, IV
59
SUPPORTING RING FOR REPAIR PURPOSES ONLY 1.50 MM
59
SUPPORTING RING FOR REPAIR PURPOSES ONLY 0.80 MM
59
SUPPORTING RING FOR REPAIR PURPOSES ONLY 1.00 MM
