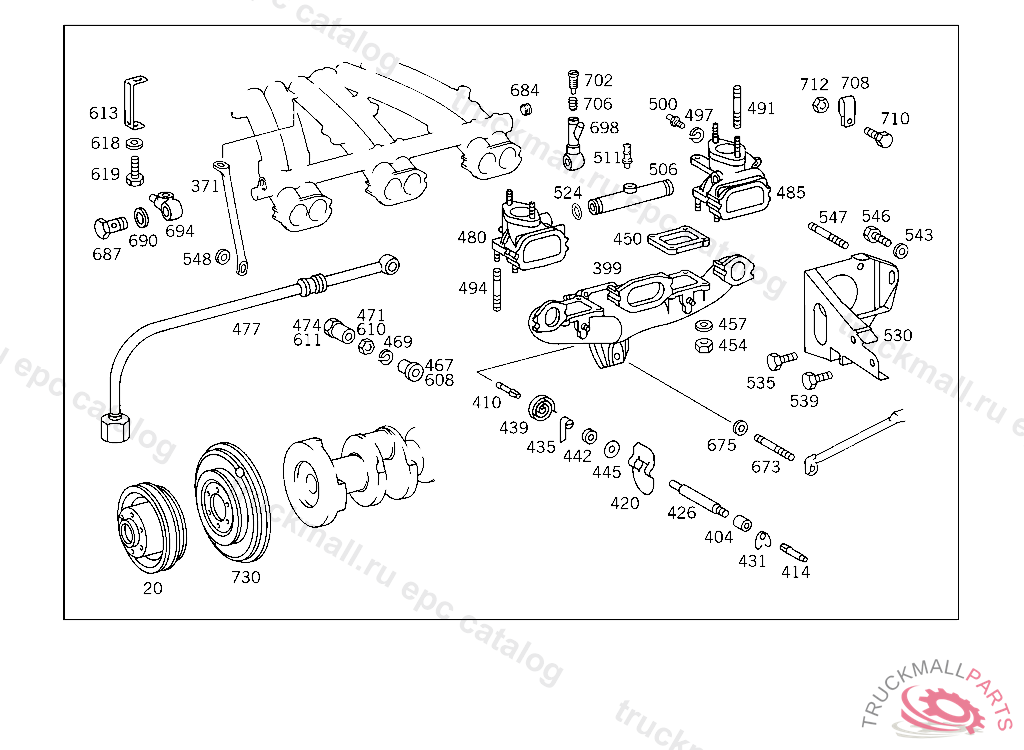

Поз.
Артикул
Описание
20
PULLEY
20
PULLEY
20
PULLEY
20
PULLEY
20
PULLEY , Replaced By: A1084660415
20
PULLEY , Replaced By: A1144660115
371
BRACKET INTAKE MANIFOLD TO CYLINDER CRANKCASE
399
EXHAUST MANIFOLD
399
EXHAUST MANIFOLD , Replaced By: A1151401411
399
EXHAUST MANIFOLD , Replaced By: A1151401411
404
BUCHSE. BUSHING
410
GROOVED PIN. DOWEL PIN
414
DOWEL PIN
420
HOT-AIR DOOR
426
SHAFT
431
SPRING
435
SPRING
439
THERMOSPIRALE. THERMO SPIRAL
442
INSULATING SLEEVE , Replaced By: A1211430149
442
INSULATING SLEEVE
445
TELLERSCHEIBE. WASHER
450
FLANGE
454
NUT BALL PIVOT TO LEVER
457
WASHER , UP TO CHASSIS: 017 029988 114 000523 117 064694
467
SPACER TUBE REFRIGERANT COMPRESSOR TO INTAKE AND EXHAUST MANIFOLDS
469
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
471
NUT BRACKET TO SUPPORT AND TO END PIECE
474
NUT REFRIGERANT COMPRESSOR TO INTAKE AND EXHAUST MANIFOLDS
477
LINE FROM VACUUM PUMP TO INTAKE MANIFOLD, FROM ENGINE: 615.912 10/50,20/60 323904 615.912 12/52,22/62 035508 615.913 10/50,20/60 185881 615.913 12/52,22/62 005131
477
LINE FROM VACUUM PUMP TO INTAKE MANIFOLD, UP TO ENGINE: 615.912 10/50,20/60 323903 615.912 12/52,22/62 035507 615.913 10/50,20/60 185880 615.913 12/52,22/62 005130
477
HOSE , UP TO ENGINE: 615.912 10/50,20/60 323903 615.912 12/52,22/62 035507 615.913 10/50,20/60 185880 615.913 12/52,22/62 005130, Replaced By: A1154302329
477
HOSE , UP TO ENGINE: 615.912 10/50,20/60 323903 615.912 12/52,22/62 035507 615.913 10/50,20/60 185880 615.913 12/52,22/62 005130, Replaced By: A1154302329
477
HOSE , UP TO ENGINE: 615.912 10/50,20/60 323903 615.912 12/52,22/62 035507 615.913 10/50,20/60 185880 615.913 12/52,22/62 005130, Replaced By: A1154302329
477
LINE , Replaced By: A1154303629
480
INTAKE MANIFOLD CYLINDERS 1 AND 2
485
INTAKE MANIFOLD CYLINDERS 3 AND 4
491
STUD
494
STUD
497
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
497
SPRING WASHER , Replaced By: N000137008212
500
PIN , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A6160720074
500
PIN SUPPORT TO SUBSTRUCTURE
506
PIPE SOCKET , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A1150100070
506
BREATHER PIPE
511
CONNECTION PIPE SOCKET
511
PIPE SOCKET , Replaced By: A1141400037
511
CONNECTOR , Replaced By: A1141410057, +001A0089978145
524
SEAL RING
530
SUPPORT , Replaced By: A1141300235
530
SUPPORT , Replaced By: A1141300235
530
SUPPORT REFRIGERANT COMPRESSOR
530
SUPPORT REFRIGERANT COMPRESSOR
535
SCREW END PIECE TO EXHAUST PIPE M 10X25
539
SCREW SHACKLE TO TORSION BAR
543
WASHER
546
SCREW , Replaced By: N304017010002
546
SCREW BRACKET TO SIDE MEMBER
547
STUD BOLT TRANSMISSION TO TIMING CASE
547
STUD STAY TO CYLINDER CRANKCASE
548
WASHER BEARING BRACKET TO SIDE MEMBER
548
WASHER , Replaced By: A1169901140
608
SPACER TUBE REFRIGERANT COMPRESSOR TO INTAKE AND EXHAUST MANIFOLDS
610
NUT BRACKET TO SUPPORT AND TO END PIECE
611
NUT REFRIGERANT COMPRESSOR TO INTAKE AND EXHAUST MANIFOLDS
613
BRACKET LINE TO INTAKE MANIFOLD
618
WASHER LINE TO INTAKE MANIFOLD
619
SCREW , Replaced By: N304017008027
619
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
673
STUD BOLT
673
STUD BOLT TRANSMISSION TO TIMING CASE
673
STUD STAY TO CYLINDER CRANKCASE
675
SEAL RING AT OPERATING VALVE
684
SCREW PLUG TOP AND BOTTOM
687
HOLLOW SCREW
687
HOLLOW SCREW
690
SEAL RING SOLENOID VALVE A 18X24
694
INTERMEDIATE PIECE , UP TO ENGINE: 130.980 10/50 012487 130.980 12/52 026281 130.980 20/60 010720 130.980 22/62 021848 UP TO ENGINE: 130.981 10/50 000311 130.981 12/52 001954 130.981 20/60 000257 130.981 22/62 001702
694
INTERMEDIATE PIECE , Replaced By: A1890700295
698
INTERMEDIATE PIECE , Replaced By: A1140700795
698
INTERMEDIATE PIECE , FROM ENGINE: 130.980 10/50,20/60 012488 130.980 12/52,22/62 026282 130.981 10/50,20/60 000312 130.981 12/52,22/62 001955
698
INTERMEDIATE PIECE , FROM ENGINE: 130.980 20/60 010721-012487 130.980 22/62 021849-026281 130.981 20/60 000258-000311 130.981 22/62 001703-001954
702
SCREW , UP TO ENGINE: 130.980 10/50,20/60 024078 130.980 12/52,22/62 054750 130.983 10/50,20/60 007685 130.983 12/52,22/62 014673
706
SPRING , UP TO ENGINE: 130.980 10/50,20/60 024078 130.980 12/52,22/62 054750 130.983 10/50,20/60 007685 130.983 12/52,22/62 014673
708
CLAMP
710
SCREW COVER PLATE TO COVER PLATE M 6 X 10
710
SCREW , Replaced By: N304017006034
712
NUT BALL PIVOT TO LEVER
730
VIBRATION ABSORBER
999
BRANCH-OFF FITTING
999
CONNECTOR
999
INTAKE PIPE
999
FAN
999
CARBURETOR
999
CARBURETOR
999
GASKET
999
VIBRATION ABSORBER
999
CRANKSHAFT
999
CRANKSHAFT
999
PIPE
999
SEPARATOR , UP TO ENGINE 920 10/50,20/60 062472 920 12/52,22/62 014832 923 10/50,20/60 074724 923 12/52,22/62 012369 924 10/50,20/60 001745 924 12/52,22/62 000098 926 10/50,20/60 003317 926 12/52,22/62 000112, Replaced By: A0000160134, +001A1150160330, +001A1150160081, +001N916002033100
999
PIPE
999
LEVER
999
ROD
999
BUSHING
999
PIN
999
INSULATING FLANGE
999
FLANGE
999
BUSHING , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS 015 203557 017 002324 110 404833 105,107,108,117,119,001920 115 204352, Replaced By: A1150720450
999
PIPE BRACKET
999
BRACKET REFRIGERANT LINE, THE OLD PART MUST NO LONGER BE INSTALLED
999
BOOT
999
SEALING FLANGE
999
HOT-AIR DOOR
999
BRACKET
999
HOSE
999
HOSE
999
TRAVELLING ASSORTMENT
999
WASHER BRACKET TO INTAKE MANIFOLD
999
CLAMP
999
HOSE
999
INTERMEDIATE PIECE
999
BREATHER FITTING , 912 10/50,20/60 038600 912 12/52,22/62 004190 913 10/50,20/60 018720 913 12/52,22/62 000605 915 000001938 005465 940 10/50,20/60 142197 EXCEPT FOR 137084-137089,137884-137890,140041-140045. 940 12/52,22/62 004748 EXCEPT FOR 004480,004524-004526,004634,004635.
999
WASHER
999
BRACKET REFRIGERANT LINE, THE OLD PART MUST NO LONGER BE INSTALLED
999
FILTER BOWL
999
FILTER BOWL , /30 FROM ENGINE: 615.940 10/50,20/60 026061 615.940 12/52,22/62 001122 615.941 10/50,20/60 011372 615.941 12/52,22/62 001498
999
SCREW LICENSE PLATE BRACKET
999
SPRING WASHER STEERING COLUMN BRACKET TO CAB
999
WASHER PULL ROD TO SHIFT LEVER
999
SCREW DISTRIBUTOR TO FRAME
999
SCREW VALVE TO BRACKET, Replaced By: N304014008002
999
SCREW BRACKET TO PARTITION PANEL,1.9.89 B 065822 F 122353
999
SCREW , Replaced By: N304017008008
999
NUT , Replaced By: N304032008006
999
NUT
999
STUD BOLT
999
SCREW AT ENGINE MOUNTING,TO MOUNT LINES
999
NUT
999
SEAL RINGTO 001 431 72 14
999
SEAL RING , NOT USED
999
SEAL RING ON OIL PUMP HOUSING
999
SHEET METAL SCREW PRE-GLOW TIME RELAY TO STEERING COLUMN JACKET TUBE CONSOLE
999
WASHER , Replaced By: N009021006208
999
CLAMP
999
CLAMP FUEL HOSE TO FUEL LINE, FROM ENGINE 063637 UP TO CHASSIS 303382
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
COMBINATION BOLT INTAKE AND EXHAUST MANIFOLDS TO CYLINDER HEAD
999
HOLLOW SCREW
999
HOLLOW SCREW
999
NUT CONNECTING PIPE TO EXHAUST BRAKE
