Поз.
Артикул
Описание

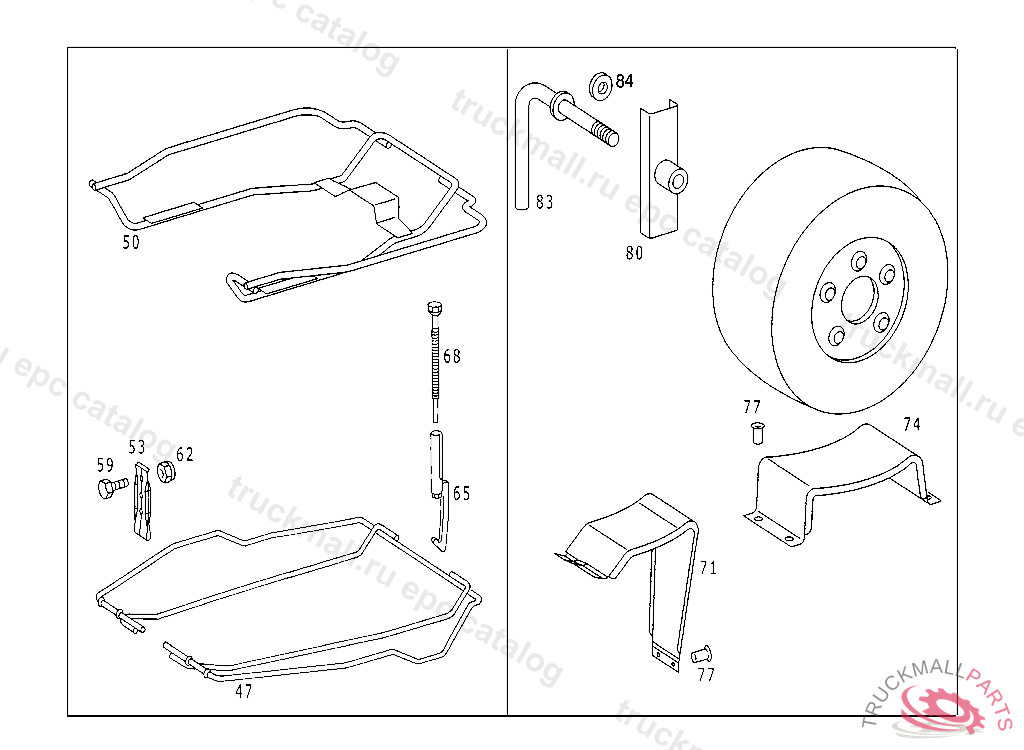

47
MOUNTING BOW SPARE WHEEL CARRIER TO CROSS MEMBER
50
MOUNTING BOW SPARE WHEEL CARRIER TO CROSS MEMBER
53
SHACKLE CARRIER TO BRACKET
59
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
62
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
65
CLAMPING SCREW
65
CLAMPING SCREW SPARE WHEEL CARRIER TO CROSS MEMBER 4025 MM, P 691610 R 000001
68
SCREW SPARE WHEEL CARRIER TO CROSS MEMBER
68
SCREW SPARE WHEEL CARRIER TO CROSS MEMBER 4025 MM, P 691610 R 000001
74
TAKE-UP DEVICE
74
PART NAME MISSING. TAKE-UP DEVICE
77
BLIND RIVET. RIVET
77
RIVET FUEL TANK MOUNTING 4,8X10,29
80
BRACKET
80
BRACKET SPARE WHEEL
83
HOOK BOLT. SCREW SPARE WHEEL
84
WASHER BRACKET TO COVERING
