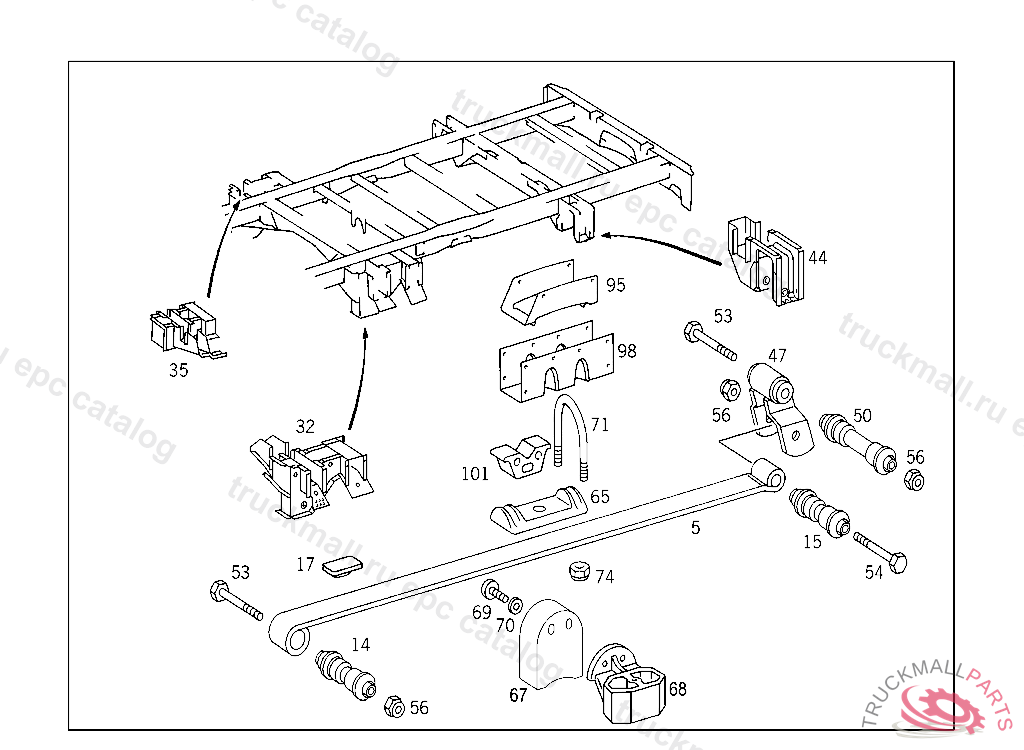

Поз.
Артикул
Описание
5
REAR SPRING WEIGHT INCREASED TO: 2.95 T
5
REAR SPRING2.8 T
5
REAR SPRING , Replaced By: A9023201506
5
REAR SPRING , Replaced By: A9033201606
14
BUSHING REAR SPRING TO REAR SPRING FRONT BRACKET
15
BUSHING
15
BUSHING REAR SPRING TO REAR SPRING FRONT AND REAR BRACKETS TO A 901 320 18 06
17
RUBBER BUFFER
32
SPRING BRACKET REAR SPRING LEFT FRONT BRACKET
35
SPRING BRACKET REAR SPRING RIGHT FRONT BRACKET
44
SPRING BRACKET REAR-SPRING REAR BRACKET
44
47
SHACKLE REAR SPRING TO REAR SPRING REAR BRACKET
50
BUSHING SHACKLE TO REAR-SPRING REAR BRACKET
53
SPRING BOLT SHACKLES TO REAR SPRING FRONT AND REAR BRACKETS
53
SCREW CONSOLE TO SUPPORT M 12X120
54
SCREW. BOLT SPRING SHACKLE
56
NUT BRACKET TO SIDE MEMBER M12X1.5
65
PLATE
67
SHIM
67
68
SHIM
69
SCREW AXLE HOUSING TO REAR SUBFRAME,FRONT
70
WASHER VIBRATION ABSORBER TO BRACKET
71
CLAMP REAR SPRING TO REAR AXLE, Replaced By: A9063250247
71
CLAMP
71
71
U-BOLT , S 47977520100531
71
U-BOLT REAR SPRING TO REAR AXLE
71
CLAMP
74
COLLAR NUT F SHAFT AT CLAMP
95
BRACKET SPRING STOP
98
TRUSS SPRING STOP
101
RUBBER BUFFER. RUBBER BUMPER SPRING STOP
