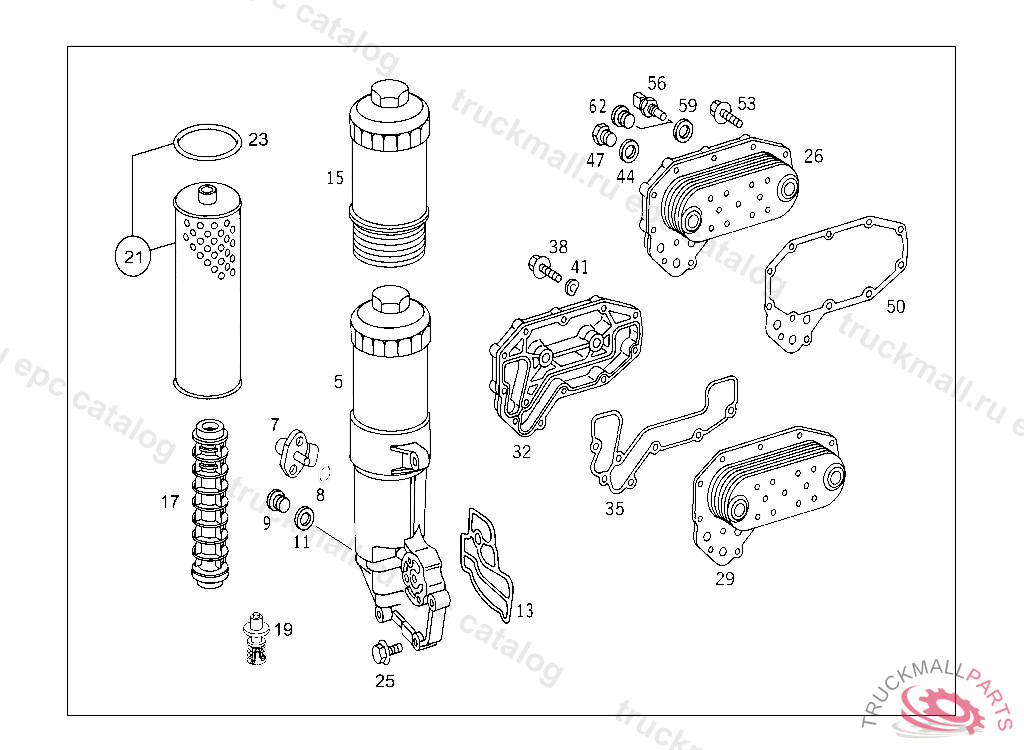

Поз.
Артикул
Описание
5
OIL FILTER
5
OIL FILTER
5
OIL FILTER
5
OIL FILTER
5
OIL FILTER
5
OIL FILTER
7
SENDER UNIT OIL PRESSURE SENDER UNIT
7
PRESSURE SENSOR
8
RING
9
SCREW PLUG BELL HOUSING TO 620 251 07 01,620 251 16 01, 426,427,428,521,522 5 095724 532 5 104253
11
SEALING RINGTO A957 490 05 14
13
GASKET OIL PRESSURE SENDER UNIT
15
COVER
17
FILLER NECK
19
PRESSURE RELIEF VALVE (NON-RETURN VALVE)
21
TS OIL FILTER ELEMENT FILTER ELEMENT
21
TS FILTER INSERT FILTER ELEMENT, Replaced By: A9061800209
23
SEAL RING FILTER BOWL TO FILTER HEAD
25
HEXAGON HEAD BOLT. SCREW CLUTCH PRESSURE PLATE TO FLYWHEEL M 8X1,25X60
25
HEXAGON HEAD BOLT. SCREW CABLE HARNESS TO BRACKET M8X40
26
OIL COOLER , SEAL UNUSED OIL CONNECTION WITH SCREW PLUG N 000908 014009 AND SEALING RING N 007603 014102
26
OIL COOLER , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 549667 SEAL UNUSED OIL CONNECTION WITH SCREW PLUG N 00090 8 014009AND SEALING RING N 007603 014102, Replaced By: A9061801465
26
OIL COOLER , Replaced By: A9061801165
26
OIL COOLER , Replaced By: A9061801165
29
OIL COOLER , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 549667, Replaced By: A0001806765
29
OIL COOLER (OIL COOLER ELEMENT)
32
COVER , Replaced By: A0001883502
32
COVER OIL COOLER COVER, SEAL UNUSED OIL CONNECTION WITH SCREW PLUG N 000908 014009 AND SEALING RING N 007603 014102
35
GASKET OIL COOLER TO COVER
38
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL M8X16 MM
41
SPRING WASHER , Replaced By: N000137008212
44
SEAL RINGTO 000 553 03 05,000 553 18 05,
47
SCREW PLUG FUEL TANK
50
GASKET OIL COOLER TO CYLINDER CRANKCASE
53
SCREW CLAMP ON BRACKET
56
SENDER UNIT TEMPERATURE GAUGE SENDER UNIT
56
SENDER UNIT TEMPERATURE SENDER UNIT
59
SEALING RING
59
SEALING RING. SEAL RING ENGINE BREATHING
62
SCREW PLUGTO 000 553 03 05,000 553 18 05,
