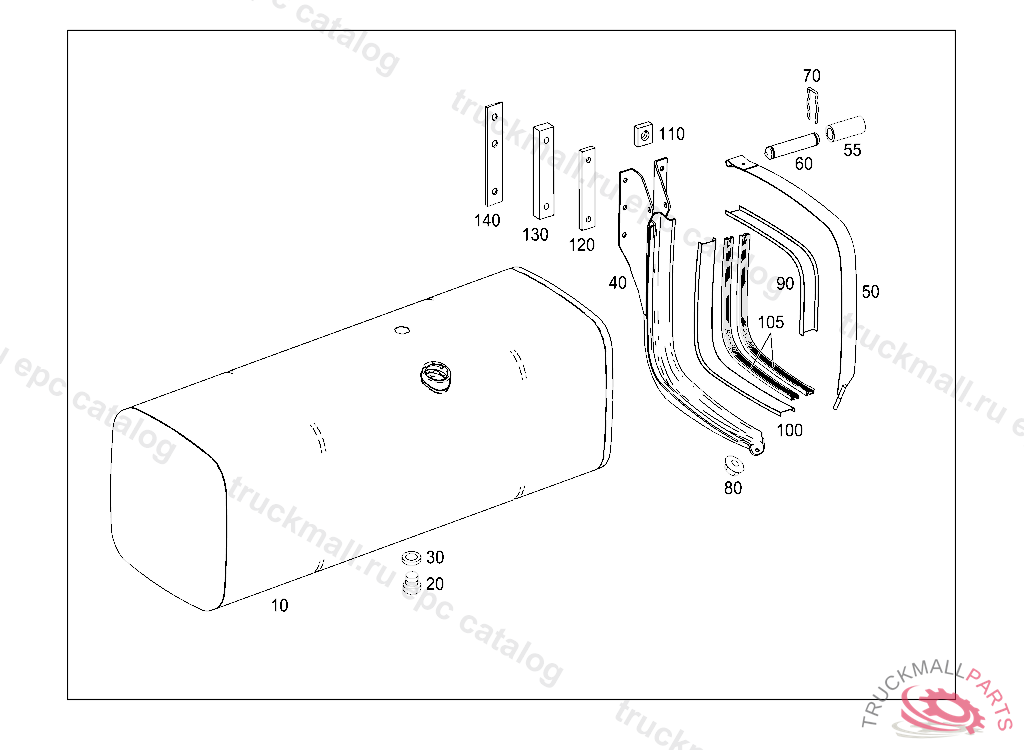

Поз.
Артикул
Описание
10
FUEL TANK RIGHT 590L
20
SCREW PLUG FUEL TANK
30
SEAL RING FUEL LINE TO FEED PUMP
40
SUPPORT FUEL TANK TO FRAME, IN CONJUNCTION WITH CODE: 8BZK
40
SUPPORT FUEL TANK TO FRAME
50
STRAP FUEL TANK
50
STRAP FUEL TANK TO CONSOLE
55
HOSE STRAP TO SUPPORT 60MM
60
PIN STRAP TO SUPPORT
60
CLAMPING BOLT STRAP TO SUPPORT
70
CLIP STRAP TO SUPPORT
80
NUT STRAP TO SUPPORT M12X1.5
90
PAD STRAP 61.5MM
90
PAD STRAP 61 MM
100
PAD BRAKE ANCHOR 111 MM
105
PAD BRAKE ANCHOR 35.9MM
110
SHIM MOUNTING PARTS 7MM
120
SHIM MOUNTING PARTS 10 MM
130
SHIM. BASE FUEL TANK TO FRAME 40MM
140
SHIM MOUNTING PARTS
