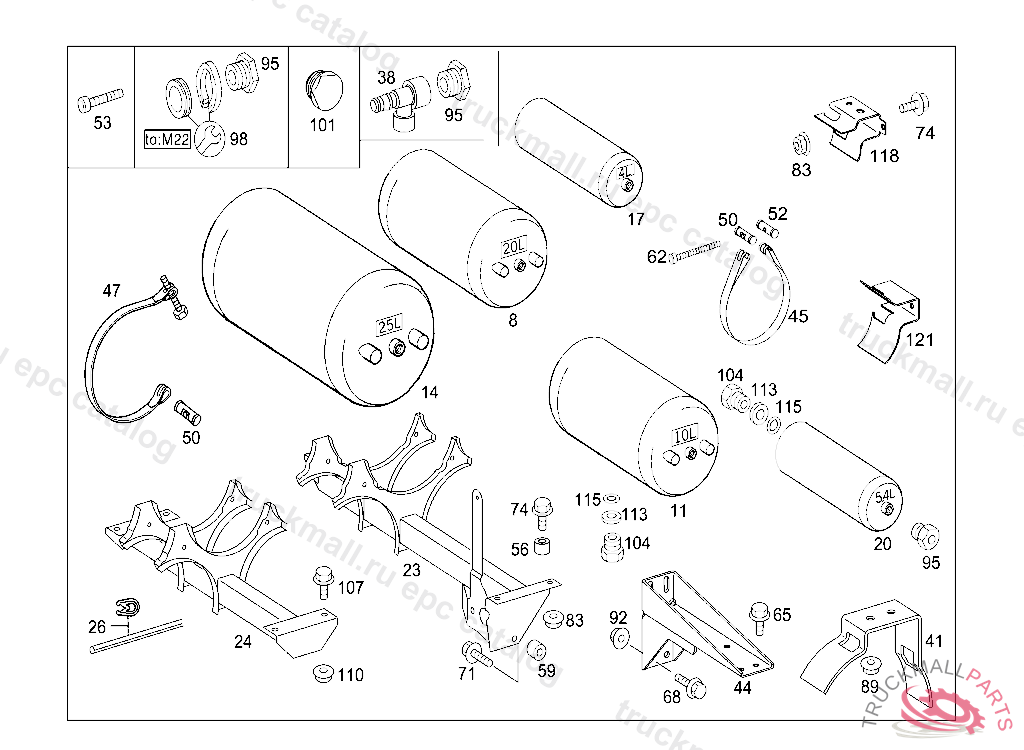

Поз.
Артикул
Описание
11
11
RESERVOIR AIR RESERVOIR 10 L
11
RESERVOIR STEEL 10L
14
14
14
RESERVOIR STEEL 25L
17
RESERVOIR STEEL 4L
20
RESERVOIR , Replaced By: A0054323101, +001A0009870446, +001A0009940203, +001A0049978272
20
RESERVOIR AIR RESERVOIR IV 5,4 L
23
23
24
38
T-FITTING BRAKE POWER REGULATOR,CONNECTION: "10",TO M 22, VOSS 232
41
44
45
STRAP AIR RESERVOIR TO BRACKET 468 MM / O 144 MM
45
STRAP AIR RESERVOIR TO BRACKET 651 MM / O 206 MM
47
STRAP AIR RESERVOIR
50
SCREW AIR RESERVOIR TO BRACKET
52
SCREW AIR RESERVOIR TO BRACKET
53
SCREW BRACKET TO FRAME SIDE MEMBER M 8X85,5 7098915 800307
53
SCREW AIR RESERVOIR TO BRACKET
56
59
62
SCREW AIR RESERVOIR TO BRACKET
65
HEXAGON HEAD BOLT. SCREW MOUNTING PARTS M 14X1.5X35
65
BOLT AND WASHER ASSY. STRUT TO BEARING BRACKET M14X1.5X25
68
HEXAGON HEAD BOLT. SCREW MOUNTING PARTS M 14X1.5X35
71
HEXAGON HEAD BOLT. SCREW SUPPORT TO SIDE MEMBER M 14X1.5X50
74
SCREW. HEXAGON HEAD BOLTM10X25
74
HEXAGON HEAD BOLT FRONT SUPPORT, AT TRANSMISSION M10 X 30
74
SCREW BALL-HEAD-TYPE COUPLING TO CROSS MEMBER M 10X40
74
HEXAGON HEAD BOLT. SCREW BRACKET TO TRANSMISSION M 10X50
83
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
89
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
92
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
95
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M 22, VOSS 232
101
SCREW PLUG AIR RESERVOIR
104
SCREW PLUG SECONDARY CONSUMING UNIT AIR RESERVOIR
107
HEXAGON HEAD BOLT. SCREW MOUNTING PARTS M 14X1.5X35
110
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
113
THRUST RING CHECK VALVE TO AIR RESERVOIR
115
O-RING CHECK VALVE TO AIR RESERVOIR
118
121
