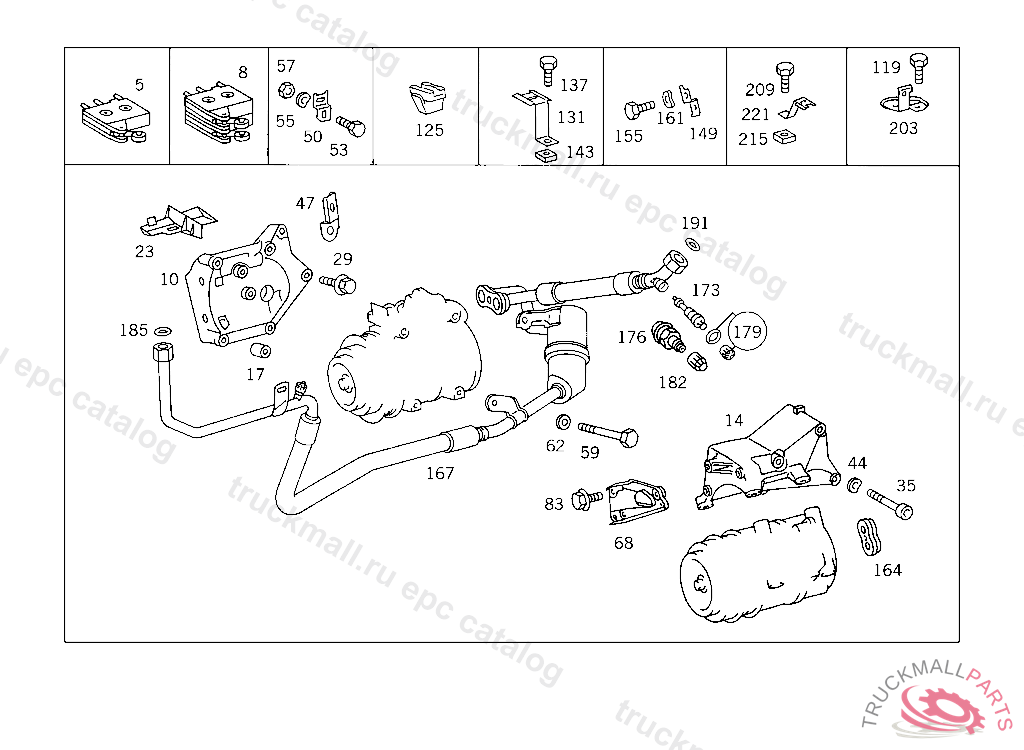

Поз.
Артикул
Описание
5
SWITCH MICRO-SWITCH
8
SWITCH ENGINE SPEED STABILIZING
10
SUPPORT , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 601.911 10/50,20/60 271904 601.911 12/52,22/62 022355 601.912 10/50,20/60 106383 601.912 12/52,22/62 008811 602.911 10/50,20/60 065467 602.911 12/52,22/62 013499 602.912 10/50,20/60 110618 602.912 12/52,22/62 016926 602.961 12/52,22/62 003195 603.912 10/50,20/60 042918 603.912 12/52,22/62 028587 603.913 10/50,20/60 000452 603.913 12/52,22/62 000503 603.960 12/52,22/62 017231 603.963 12/52,22/62 000879, Replaced By: A6011310435
10
SUPPORT , Replaced By: A6011310535
10
SUPPORT REFRIGERANT COMPRESSOR
17
SLEEVE
23
SCREENING
23
SCREENING , Replaced By: A6011310139
29
COMBINATION BOLT SUPPORT TO CYLINDER CRANKCASE
29
COMBINATION BOLT SUPPORT TO CYLINDER CRANKCASE
59
SCREW REAR AXLE REGULATING SOLENOID VALVE M 8X95
62
WASHER EXHAUST MUFFLER TO STRAP
62
WASHER , Replaced By: N000125008443
149
BRACKET , 601.911 10/50,20/60 292357 601.911 12/52,22/62 023517 601.912 10/50,20/60 119225 601.912 12/52,22/62 009929 602.911 10/50,20/60 071586 602.911 12/52,22/62 014525 602.912 10/50,20/60 125558 602.912 12/52,22/62 018671 603.912 10/50,20/60 047922 603.911 12/52,22/62 031254 603.913 10/50,20/60 000555 603.913 12/52,22/62 000572 603.960 12/52,22/62 017955 603.963 12/52,22/62 000846
155
SCREW , Replaced By: N304017008016
155
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
161
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
161
SPRING WASHER , Replaced By: N000137008212
167
SUCTION LINE , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 601.912 10/50,20/60 110636 601.912 12/52,22/62 009112 602.911 10/50,20/60 068744 602.911 12/52,22/62 014040 602.912 10/50,20/60 110433 602.912 12/52,22/62 114100 602.961 12/52,22/62 004240 603.912 10/50,20/60 043211 603.912 12/52,22/62 028758 603.960 12/52,22/62 017373, Replaced By: A6021304457
167
SUCTION LINE REFRIGERANT LINE
173
VALVE INSERT , NOT USED
179
CAP (PARTS KIT),CAP
185
O-RING HOSE TO EXPANSION VALVE 17X2
185
SEAL RING , Replaced By: A1249970345
185
SEAL RING , Replaced By: A1409970945
191
SEAL RING , Replaced By: A1249970545
191
SEAL RING , Replaced By: A1409970845
191
SEAL RING HOSE TO CONDENSER 14 MM
