Поз.
Артикул
Описание

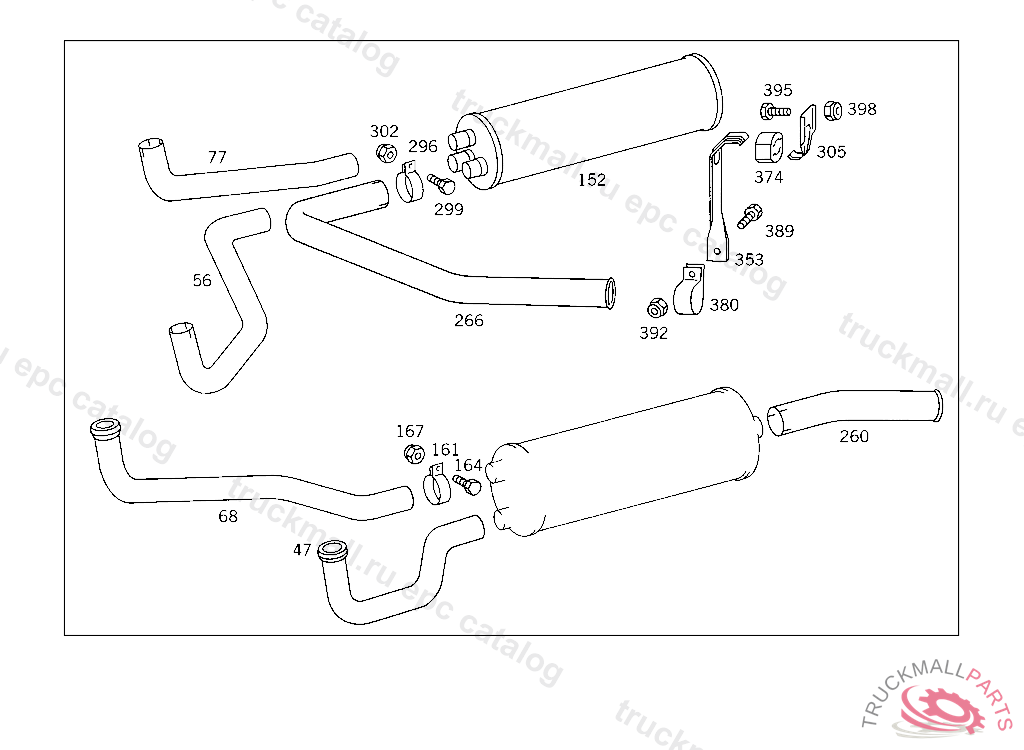

56
EXHAUST PIPE FRONT,REAR LEFT PART
56
EXHAUST PIPE FRONT,REAR LEFT PART,4 932446
56
EXHAUST PIPE ,5 008329, Replaced By: A6174904020, +001A6174920008
56
EXHAUST PIPE FRONT,REAR LEFT PART,5 028161
77
EXHAUST PIPE FRONT,REAR RIGHT PART,5 028161
77
EXHAUST PIPE ,5 008329, Replaced By: A6174905020, +001A6174920008
77
EXHAUST PIPE FRONT,REAR RIGHT PART,4 932446
77
EXHAUST PIPE FRONT,REAR RIGHT PART
152
EXHAUST MUFFLER
161
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
164
SCREW , Replaced By: N304017010002
164
SCREW BRACKET TO SIDE MEMBER
167
NUT , Replaced By: N910113010000
167
NUT STRAP TO BRACKET
266
END PIECE
296
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
296
CLAMP , Replaced By: N071555090502
299
SCREW , Replaced By: N304017010002
299
SCREW BRACKET TO SIDE MEMBER
302
NUT STRAP TO BRACKET
302
NUT , Replaced By: N910113010000
305
SUPPORT EXHAUST
353
BRACKET TAIL PIPE
374
DAMPING PAD PARTICLE FILTER
380
CLAMP , Replaced By: A6454921140
380
CLAMP EXHAUST PIPE TO BRACKET
389
SCREW END PIECE TO EXHAUST PIPE M 10X25
389
SCREW BRACKET TO SIDE MEMBER
392
NUT STRAP TO BRACKET
392
NUT , Replaced By: N910113010000
