Поз.
Артикул
Описание

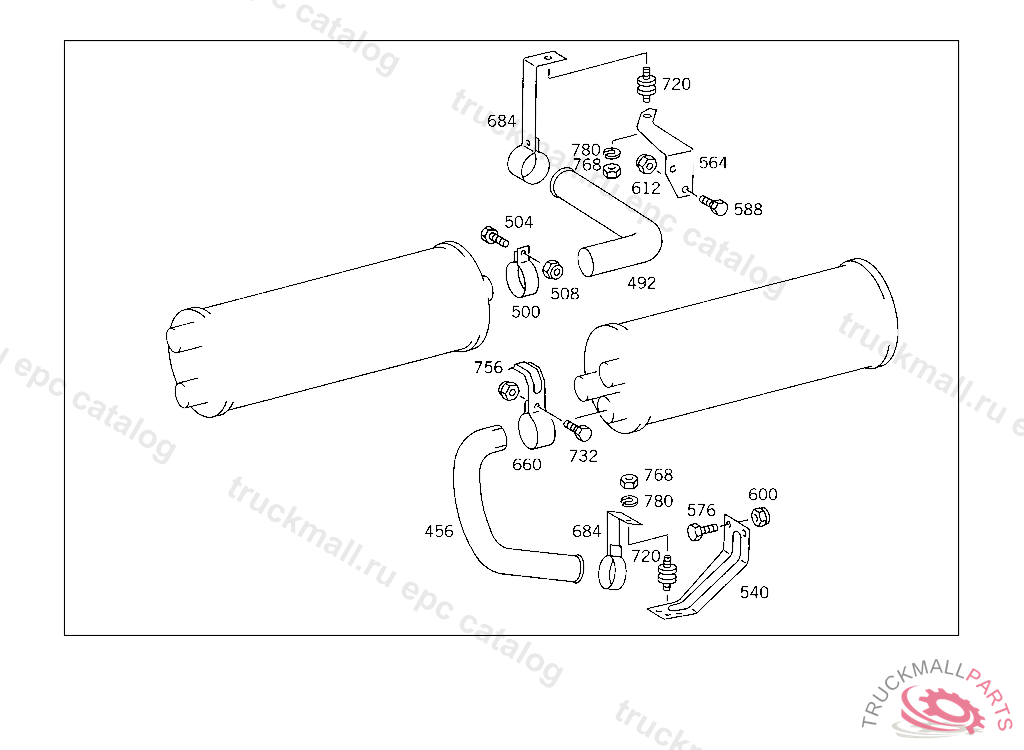

456
END PIECE
500
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
500
CLAMP , Replaced By: N071555090502
504
SCREW BRACKET TO SIDE MEMBER
504
SCREW , Replaced By: N304017010002
508
NUT STRAP TO BRACKET
508
NUT , Replaced By: N910113010000
540
SUPPORT TAIL PIPE
576
SCREW BRACKET TO SIDE MEMBER
600
NUT STRAP TO BRACKET
660
BRACKET TAIL PIPE
732
SCREW SUPPORT TO CROSS MEMBER M 10X28
756
NUT STRAP TO BRACKET
756
NUT STRAP TO BRACKET
756
NUT STRAP TO BRACKET
756
NUT , Replaced By: N910113010000
768
NUT BRACKET TO SUPPORT AND TO END PIECE
999
SCREW BRACKET TO SIDE MEMBER M 12X40
