Поз.
Артикул
Описание

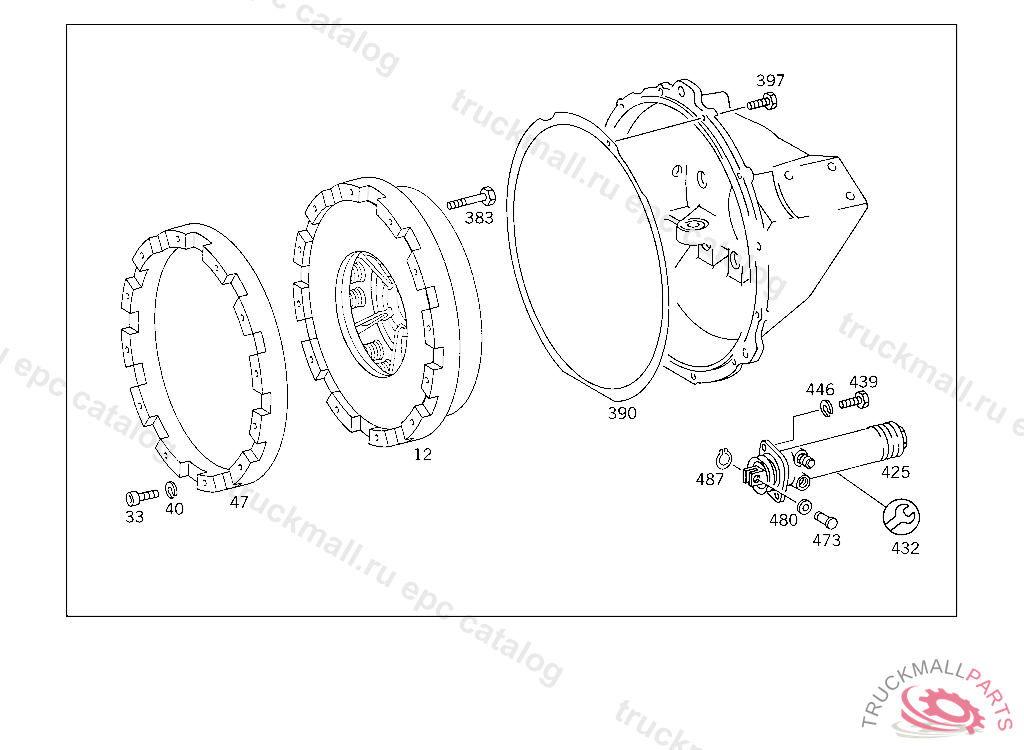

12
CLUTCH PRESSURE PLATE
12
CLUTCH PRESSURE PLATE , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
12
CLUTCH PRESSURE PLATE CLUTCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
33
SCREW STEERING SHAFT BEARING TO CAB M 8X30,5 191030
40
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
47
SHIM CLUTCH PRESSURE PLATE TO FLYWHEEL
383
SCREW CLUTCH TO FLYWHEEL
390
GASKET BELL HOUSING TO TIMING GEAR CASE
390
GASKET , Replaced By: A3812510580
397
SCREW REAR EXHAUST PIPE TO MUFFLER
425
SLAVE CYLINDER CLUTCH ACTUATION
425
SLAVE CYLINDER CLUTCH,4 667416
432
REPAIR KIT
432
REPAIR KIT ,4 667416
439
SCREW SUPPORT TO FENDER
439
SCREW , Replaced By: N304017008018
446
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
473
PIN CLUTCH SLAVE CYLINDER TO RELEASE YOKE,4 667416
480
FITTED WASHER CLUTCH SLAVE CYLINDER TO RELEASE YOKE,4 667416
487
LOCK RINGTO 000 553 37 01,000 553 39 01,
999
INTERMEDIATE PIECE
999
RELEASE BEARING CLUTCH
999
RELEASE BEARING CLUTCH ACTUATION
999
RELEASE BEARING CLUTCH
999
PLUG BELL HOUSING
999
PLUG BELL HOUSING
999
DAMPER SPRING
999
DAMPER SPRING
999
DAMPER SPRING
999
FLANGE
999
LEAF SPRING RELEASE LEVER TO BELL HOUSING TO 003 250 88 04
999
SPRING RELEASE LEVER TO 003 250 88 04
999
SPRING RELEASE FLANGE TO RELEASE LEVER TO 003 250 88 04
999
LEAF SPRING ,5 563495
999
LEAF SPRING
999
PRESSURE SPRING
999
PRESSURE SPRING
999
PRESSURE SPRING
999
PRESSURE PLATE
999
PRESSURE SPRING RELEASE LEVER
999
ROD END CLUTCH ACTUATION
999
ROD END CLUTCH ACTUATION
999
SLAVE CYLINDER CLUTCH ACTUATION KNORR
999
SLAVE CYLINDER CLUTCH ACTUATION
999
SEAL RING CLUTCH ACTUATION
999
SEAL RING LEVER TO RELEASE SHAFT,5 285575
999
CLUTCH PRESSURE PLATE , Replaced By: A0052502704
999
POINTER CLUTCH LINING WEAR, 396.3 10/20 6 900235 396.3 50/60 5 353180 396.4 NOT USED
999
PIN CLUTCH ACTUATION
999
LEVER CLUTCH ACTUATION,4 601610
999
BRACKET CLUTCH ACTUATION
999
LOCK POINTER TO CLUTCH ACTUATION BRACKET, 396.3 10/20 6 900235 396.3 50/60 5 353180 396.4 NOT USED
999
WASHER AS REQUIRED 0.80 MM
999
WASHER AS REQUIRED 0.90 MM
999
WASHER AS REQUIRED 1.00 MM
999
WASHER AS REQUIRED 1.10 MM
999
WASHER AS REQUIRED 1.20 MM
999
WASHER AS REQUIRED 1.3 MM
999
SPRING RELEASE BEARING TO RELEASE LEVER
999
SEAL RING BOTTOM
999
SPACER WASHER RELEASE SHAFT,BOTTOM
999
BRACKET , Replaced By: A3072950840
999
HOSE RELEASE COLLAR LUBRICATION 220 MM
999
SHAFT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 285575, Replaced By: A3852500014
999
HOUSING ,5 285575, Replaced By: A6202501105, +001A6202500155
999
HOUSING BELL HOUSING WITH BUSHINGS
999
COVER RELEASE SHAFT,TOP
999
HOUSING BELL HOUSING WITH BUSHINGS
999
PLUG BELL HOUSING
999
RELEASE LEVER CLUTCH ACTUATION
999
WASHER LEVER TO RELEASE SHAFT,5 285575
999
LEVER , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE5 388425, Replaced By: A6242950028, +001A6242950140
999
BRACKET CLUTCH ACTUATION
999
CAP RELEASE BEARING LUBRICATION
999
GREASE NIPPLE RELEASE COLLAR LUBRICATION
999
HOUSING BELL HOUSING WITH BUSHINGS,5 285576
999
GASKET , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6242510180
999
GASKET CLUTCH SLAVE CYLINDER TO BELL HOUSING
999
THREADED PIN CLUTCH SLAVE CYLINDER TO BELL HOUSING
