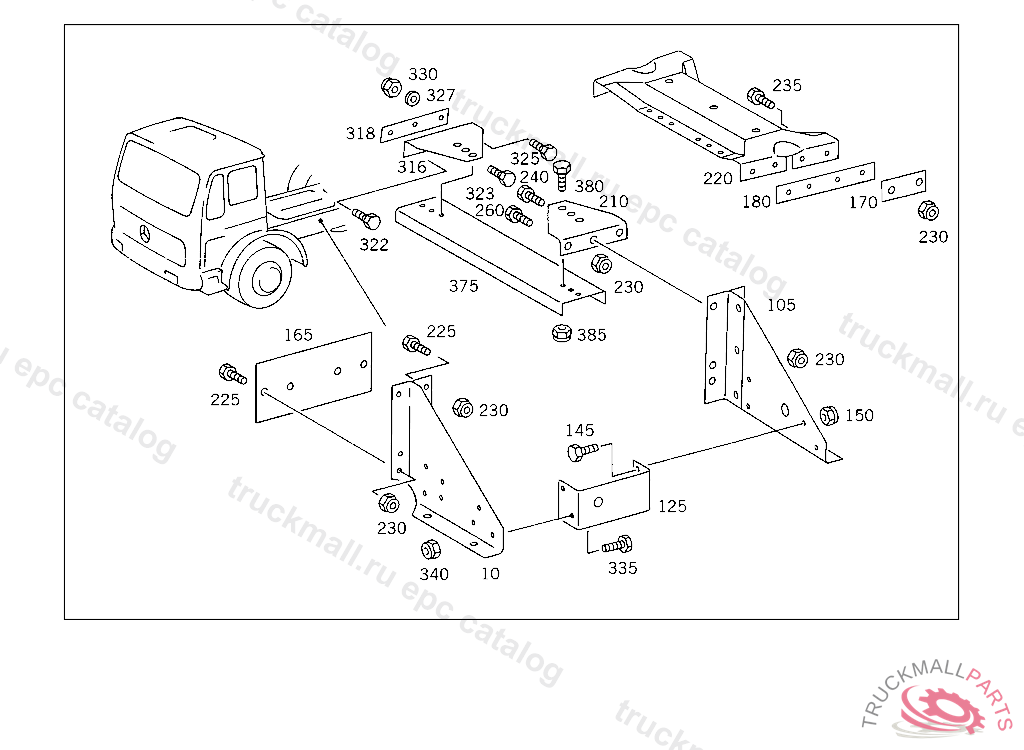

Поз.
Артикул
Описание
10
BRACKET LEFT
10
BRACKET LEFT
10
BRACKET LEFT
105
BRACKET RIGHT
105
BRACKET RIGHT
105
BRACKET RIGHT
105
BRACKET RIGHT
105
BRACKET RIGHT
105
BRACKET RIGHT
105
BRACKET RIGHT
125
BRACKET AT BRACKET
125
BRACKET SPARE WHEEL CARRIER
125
BRACKET AT BRACKET
125
BRACKET SPARE WHEEL CARRIER
145
SCREW CONSOLE TO SIDE MEMBER
145
SCREW CONSOLE TO SIDE MEMBER
145
SCREW CONSOLE TO SIDE MEMBER
150
NUT SUPPORT TO SIDE MEMBER
150
NUT SUPPORT TO SIDE MEMBER
165
PLATE LEFT AND RIGHT CONSOLES TO FRAME
165
PLATE LEFT AND RIGHT CONSOLES TO FRAME
165
PLATE LEFT AND RIGHT CONSOLES TO FRAME
170
SHIM MOUNTING TO CONSOLE
170
SHIM BRACKET TO FRAME
170
SHIM BRACKET TO FRAME
170
SHIM MOUNTING TO CONSOLE
170
SHIM , Replaced By: A3878910498
170
SHIM BRACKET TO FRAME
170
PLATE , Replaced By: A3353170884
180
PLATE BRACKET TO FRAME,4 909153
210
GUSSET PLATE LEFT AND RIGHT CONSOLES TO FRAME
210
GUSSET PLATE LEFT AND RIGHT CONSOLES TO FRAME
210
GUSSET PLATE LEFT AND RIGHT CONSOLES TO FRAME
220
CROSS MEMBER BRACKET TO FRAME,4 909153
220
CROSS MEMBER , Replaced By: A6253100036
225
SCREW BRACKET TO CAB CONSOLE,K 035197
225
SCREW BRACKET TO CAB CONSOLE,K 035197
230
NUT BRACKET TO SIDE MEMBER
230
NUT , Replaced By: N910113014001
235
SCREW AT CROSS MEMBER
240
SCREW BRACKET TO SIDE MEMBER
240
SCREW BRACKET TO SIDE MEMBER
240
SCREW , Replaced By: N000961014064
260
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
260
SCREW , Replaced By: N308676014020
316
GUSSET PLATE GUSSET PLATE TO FRAME,RIGHT
316
GUSSET PLATE GUSSET PLATE TO FRAME,RIGHT
316
GUSSET PLATE GUSSET PLATE TO FRAME,RIGHT
318
PLATE RIGHT,AT FRAME
318
PLATE BRACKET TO FRAME
318
PLATE BRACKET TO FRAME
322
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
322
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
322
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
322
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
322
SCREW , Replaced By: N308676014020
323
SCREW BRACKET TO CAB CONSOLE,K 035197
323
SCREW BRACKET TO CAB CONSOLE,K 035197
325
SCREW STEERING SUPPORT TO FRAME M 14X50
325
SCREW BRACKET TO CAB CONSOLE,K 035197
325
SCREW BRACKET TO SIDE MEMBER
325
SCREW , Replaced By: N000961014064
325
SCREW BRACKET TO CAB CONSOLE,K 035197
327
WASHER SPARE WHEEL CARRIER
327
WASHER SPARE WHEEL CARRIER
330
NUT BRACKET TO SIDE MEMBER
330
NUT BRACKET TO SIDE MEMBER
330
NUT BRACKET TO SIDE MEMBER
330
NUT , Replaced By: N910113014001
335
SCREW CONSOLE TO SIDE MEMBER
335
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
335
SCREW CONSOLE TO SIDE MEMBER
335
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
335
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
335
SCREW , Replaced By: N308676012026
335
SCREW CONSOLE TO SIDE MEMBER
340
NUT SUPPORT TO SIDE MEMBER
340
NUT SUPPORT TO SIDE MEMBER
340
NUT SUPPORT TO SIDE MEMBER
375
CROSS MEMBER GUSSET PLATE TO CROSS MEMBER,4 909154
375
CROSS MEMBER CROSS MEMBER TO GUSSET PLATE
375
CROSS MEMBER GUSSET PLATE TO CROSS MEMBER
380
SCREW GUSSET PLATE TO CROSS MEMBER
380
SCREW FRONT SPRING REAR BRACKET TO CROSS MEMBER
380
SCREW BRACKET TO SIDE MEMBER
380
SCREW BRACKET TO SIDE MEMBER
380
SCREW BRACKET TO SIDE MEMBER
385
NUT , Replaced By: N910113014001
385
NUT BRACKET TO SIDE MEMBER
385
NUT BRACKET TO SIDE MEMBER
385
NUT BRACKET TO SIDE MEMBER
999
CLAMP , Replaced By: A3874900041
999
CLAMP EXHAUST MUFFLER TO BRACKET
999
WASHER LEFT AND RIGHT CONSOLES TO FRAME
999
SPACER SPARE WHEEL TO SPARE WHEEL WINCH, ONLY FOR USE WITH SA 32220/05 TO BE ADAPTED DURING ASSEMBLY
