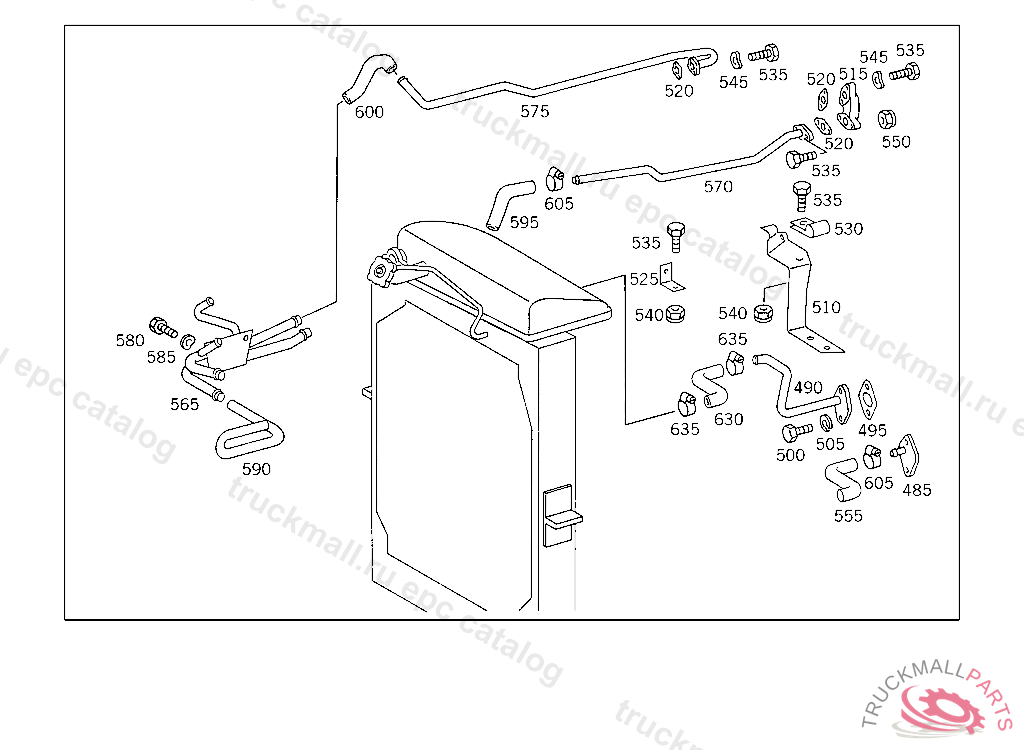

Поз.
Артикул
Описание
485
FLANGE FROM ENGINE TO EXPANSION TANK
490
FLANGE DE-AERATION,5 301948
495
GASKET. SEAL DE-AERATION PIPE TO ENGINE
500
SCREW END PIECE TO EXHAUST PIPE M 10X25
505
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
510
BRACKET HEATING PIPE
515
FLANGE
520
GASKET HEATING PIPE TO ENGINE
525
BRACKET HEATING PIPE TO FAN SHROUD BRACKET
530
CLAMP FEED LINE TO THERMOSTAT
535
SCREW PIPE CLAMP
535
SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
535
SCREW SUPPORT TO FENDER
535
SCREW COVER PLATE TO BRACKET
535
SCREW , Replaced By: N000933008337
535
SCREW , Replaced By: N304017008021
535
SCREW , Replaced By: N304017008018
535
SCREW , Replaced By: A0099900101
540
NUT , Replaced By: N913004006001
540
NUT PUMP TO BRACKET
545
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
545
SPRING WASHER , Replaced By: N000137008212
550
NUT , Replaced By: N913004008001
550
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
555
HOSE FROM VALVE TO FEED LINE,K 004003
565
LINE (HEATING PIPE)
565
LINE HEATING AND BREATHING
565
LINE , Replaced By: A6205002872
565
LINE , Replaced By: A6205003072
570
LINE HEATING PIPE
570
LINE HEATING AND BREATHING
570
LINE HEATING AND BREATHING
570
LINE HEATING AND BREATHING
575
LINE (HEATING LINE),FROM ENGINE TO HEATER
575
LINE HEATING PIPE
580
SCREW PUMP TO BRACKET
580
SCREW , Replaced By: N304017006016
585
SPRING WASHER LICENSE PLATE TO BRACKET
590
HOSE FROM HEATING PIPE AT RADIATOR TO CAB HEATING PIPE
595
HOSE HEATING PIPE TO RADIATOR
600
HOSE FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR
605
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
605
CLAMP , Replaced By: N000000000667
630
HOSE BETWEEN DE-AERATION LINE AND EXPANSION TANK
630
HOSE DE-AERATION PIPE TO EXPANSION TANK
635
CLAMP HOSE TO FITTING AND TO OIL TANK
999
RECEPTACLE SILICONE GREASE
999
BRACKET OIL FILTER, NOT USED
