Поз.
Артикул
Описание

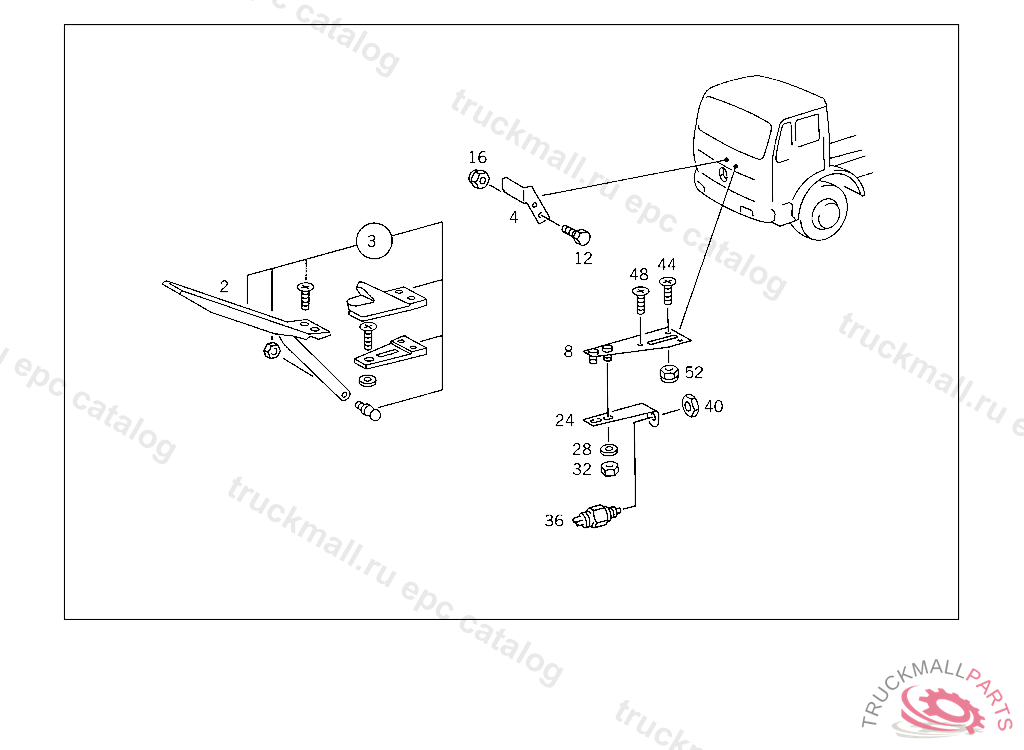

2
ACCELERATOR PEDAL , Replaced By: A6243000104
2
ACCELERATOR PEDAL , Replaced By: A6243000304
3
ACCELERATOR PEDAL (PARTS KIT), RANGE OF DELIVERY INCLUDES: 1X 655 301 00 93, 3X 000965 006077
4
ANGLE ACCELERATOR PEDAL
8
BRACKET IDLING SWITCH
12
SCREW COVER PLATE TO BRACKET
16
NUT COMPRESSED AIR LINE TO LEFT SIDE MEMBER
16
NUT , Replaced By: N910113006001
24
ANGLE IDLING SWITCH
28
WASHER COMPRESSED AIR LINE TO BRACKET
28
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
32
NUT , Replaced By: N304032006004
32
NUT SPRING-LOADED PUSH ROD
36
SWITCH CONTROL SHAFT
40
NUT JOINT TO BRACKET
40
NUT , Replaced By: N308675014001
44
SCREW GUIDE RAIL RETROFIT M 6X35, BORE THREADED HOLES IN CAB FLOOR TO 6.5MM
48
SCREW PEDAL TO CAB FLOOR
52
NUT COMPRESSED AIR LINE TO LEFT SIDE MEMBER
52
NUT , Replaced By: N910113006001
999
PAD ACCELERATOR PEDAL
999
GUIDE RAIL ACCELERATOR PEDAL TO FLOOR PLATE
999
SCREW ACCELERATOR PEDAL
