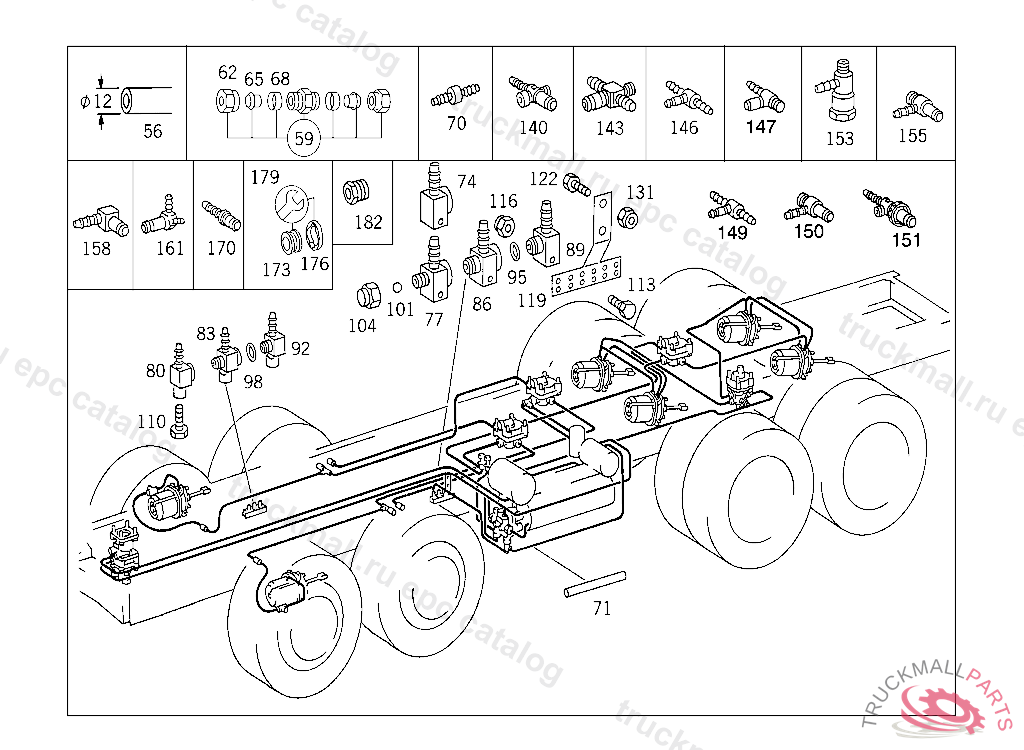

Поз.
Артикул
Описание
56
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
59
FITTING (PARTS KIT),LINE RUPTURE
62
UNION NUT LINE CONNECTION
62
UNION NUT LINE CONNECTION, Replaced By: N000000006239
65
GLAND , Replaced By: A0019901967
65
SEAL CONE LINE CONNECTION
68
SLEEVE LINE CONNECTION
70
CONNECTOR REPAIR SIZE
71
INSULATING HOSE AIR DEHYDRATOR, ORDER BY THE METER
74
CONNECTOR DISTRIBUTOR TO FRAME
74
CONNECTOR , Replaced By: A0019903978
77
CONNECTOR HOSE WIDTH, 9 MM,TO M22
80
CONNECTOR DISTRIBUTOR TO CAB
83
CONNECTOR DISTRIBUTOR TO CAB
83
CONNECTOR DISTRIBUTOR TO CAB
89
CONNECTOR DISTRIBUTOR TO FRAME
92
CONNECTOR DISTRIBUTOR TO CAB
95
SEAL RING CONNECTOR 11.8X2 MM
95
SEAL RING , Replaced By: A0229973948
98
SEAL RING
110
SCREW CONNECTOR TO CAB M6X8
113
SCREW DELIVERY AND SUCTION LINES TO ENGINE, FRONT M 6X35
116
NUT PUMP TO BRACKET
116
NUT , Replaced By: N913004006001
119
BRACKET CONNECTOR TO FRAME
140
DISTRIBUTOR LINE CONNECTION
143
DISTRIBUTOR HOSE WIDTH, 9 MM,TO M 22
146
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
147
T-FITTING
149
T-FITTING HOSE WIDTH, 2X9 MM, TO M 22
150
T-FITTING HOSE WIDTH, 9 MM, TO M 22, M 12X1.5
151
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22, M 12X1.5 MM/ 9 MM
155
ELBOW FITTING HOSE WIDTH, 9 MM,TO M 22
158
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
161
ELBOW FITTING HOSE WIDTH, 9 MM,TO M 22
161
ELBOW FITTING HOSE WIDTH, 9 MM,TO M 22
170
CONNECTOR HOSE WIDTH, 9 MM,TO M 22
173
LOCK RING LINE CONNECTION
173
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
173
SEAL RING , Replaced By: A0009940747
176
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
176
LOCK , Replaced By: A0009945448
176
LOCK LINE CONNECTION
179
REPAIR KIT COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
179
REPAIR KIT , Replaced By: A0309971748
179
REPAIR KIT. TS SEALING RING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
182
SCREW. UNION SCREW LINE CONNECTION
182
SCREW. UNION SCREW , Replaced By: A0009973734
182
SCREW. UNION SCREW LINE CONNECTION
