Поз.
Артикул
Описание

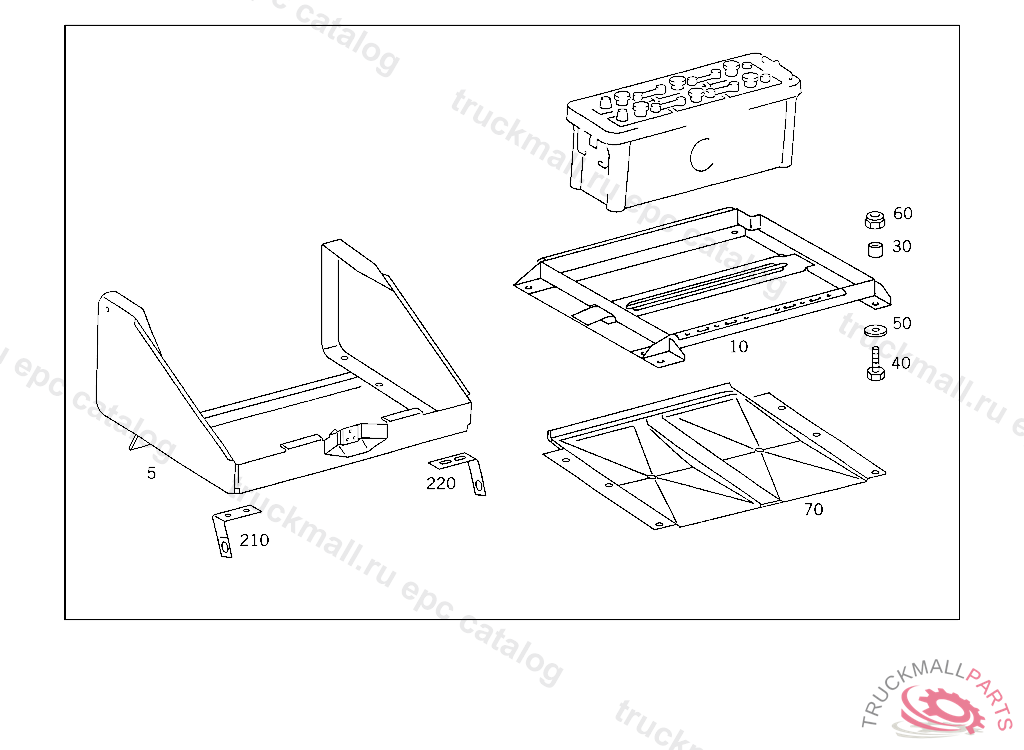

5
BATTERY SUPPORT
5
BATTERY SUPPORT
5
BATTERY SUPPORT
10
BATTERY BASE FRAME
10
BATTERY BASE FRAME
10
RAIL
10
BATTERY BASE FRAME
10
BATTERY BASE FRAME
10
BATTERY BASE FRAME
30
SPACER TUBE BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT, NOT USED
30
SPACER TUBE BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT
30
SPACER TUBE BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT
40
SCREW REAR EXHAUST PIPE TO MUFFLER
40
SCREW CLAMP TO BRACKET AND TO PIPE
40
SCREW RADIATOR M 10X45
50
WASHER EXHAUST MUFFLER TO STRAP
50
WASHER RADIATOR TO RUBBER MOUNTING
50
WASHER , Replaced By: N000125008443
50
WASHER , Replaced By: N000125010532
60
NUT , Replaced By: N913004008001
60
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
70
BATTERY CASE
210
BRACKET DEHYDRATOR AIR RESERVOIR,LEFT
220
BRACKET FROM CENTRAL AIR RESERVOIR TO T-FITTING
999
SCREW , Replaced By: N000000001441
999
SCREW BATTERY MOUNTING
999
RAIL. BATTERY BASE FRAME
999
BATTERY BASE FRAME BATTERY BASE FRAME
999
MOUNTING FRAME BATTERY MOUNTING
999
BATTERY SUPPORT APPARATUS, TO BE ADAPTED DURING ASSEMBLY
999
BATTERY SUPPORT
999
BATTERY SUPPORT
999
BRACKET DEHYDRATOR AIR RESERVOIR,RIGHT L 114 MM
999
BRACKET DEHYDRATOR AIR-RESERVOIR
999
MOUNTING FRAME BATTERY
999
BATTERY SUPPORT APPARATUS
999
BRACKET BATTERY MOUNTING
999
BRACKET DEHYDRATOR AIR RESERVOIR,LEFT
999
BASE
999
CONSOLE BATTERY BASE FRAME
999
RAIL
999
HEXALOBULAR BOLT BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT M 10X50
