Mercedes N910112006001 - Гайка M6

CITARO 12M 2-TUERER 628.037

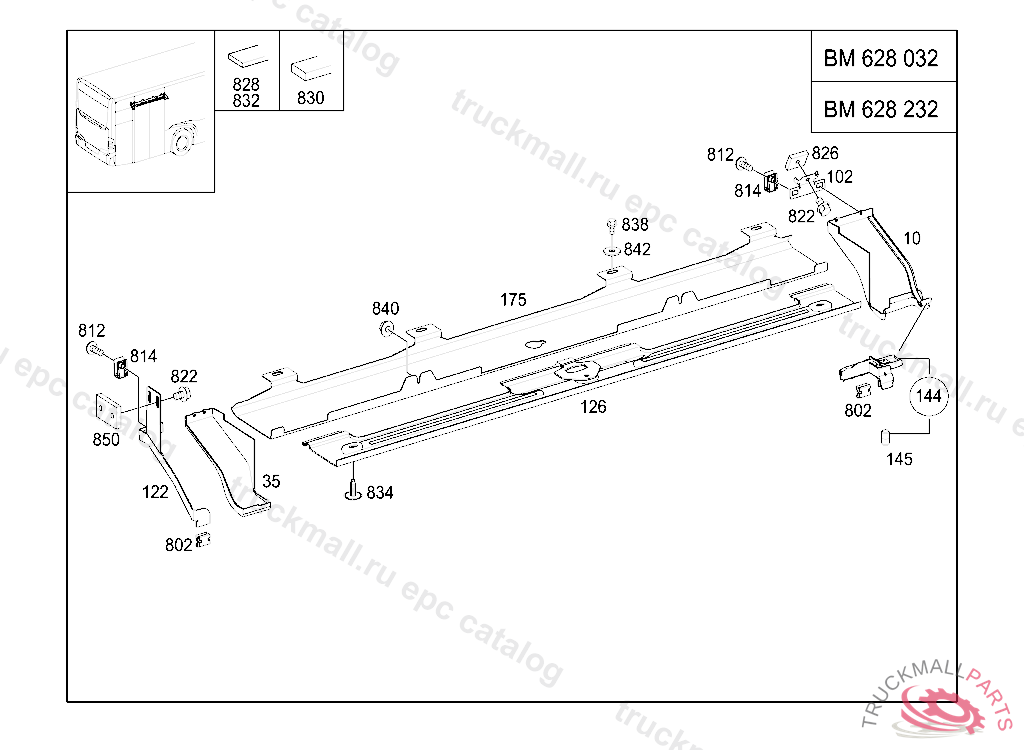

42 BRAKES - 150 MOUNTING OF LINES,HOSES,TEST CONNECTIONS IL. 1

Поз.
Артикул
Описание
10
A3116900650
102
A3046957514
126
A3116908352
126
A3116908252
144
A3116903114
145
N000000004290
GRUB SCREWM5X8
175
A3116952652
802
A0069889478
CLIP
812
N000000001935
HEXALOBULAR BOLT. SCREW STEP TO ENTRANCE
814
A0049941245
NUT LOCK TO COVER
822
N910105008013
SCREW PIPE ELBOW TO BRACKET M8X12
826
A6289510111
PLATE
828
A0009871323
TOTAL FOAMED MATERIAL USE10X0,8MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
830
A0009872023
TOTAL FOAMED MATERIAL USE. PLASTIC SECTION SELF-ADHESIVE ON ONE SIDE 4,0X10 MM, ORDER BY THE METER
832
A0009872523
PLASTIC SECTION SELF-ADHESIVE ON ONE SIDE 2,0X10 MM, ORDER BY THE METER
834
A3819900392
RIVET COVERING TO BODY
838
N910105006002
HEXAGON HEAD BOLT
840
N910112006001
NUT , Replaced By: N913023006001
842
N000000003250
WASHER BRACKET TO CAB REAR PANEL
