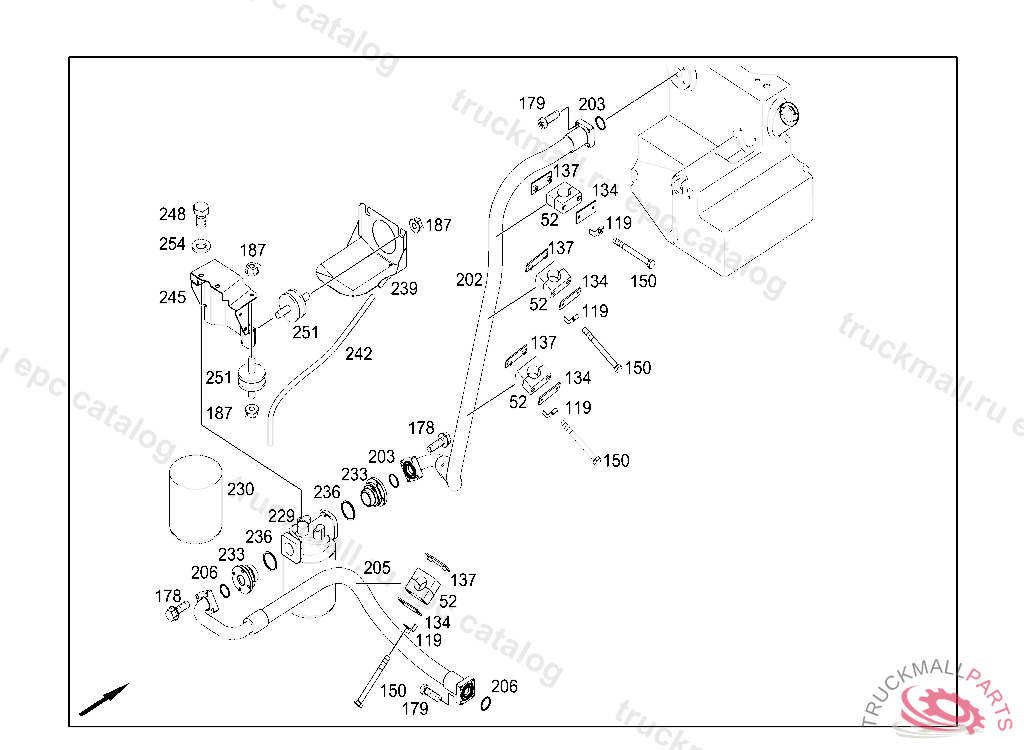

CITARO 12M 2-TUERER - 628.037 - 50 RADIATOR
Поз.
Артикул
Описание
119
LOCK
134
PLATE
137
TRAY
178
SCREW , Replaced By: N910143008002
179
SCREW GRIP RAIL MOUNTING M8X25 TX45
187
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
229
FILTER HOUSING
230
FILTER ELEMENT HYDRAULIC FLUID
233
FLANGE ON FILTER
236
SEAL RING OIL COOLER CONNECTION
239
BRACKET FILTER BOWL
242
HOSE. PLASTIC PIPE , Replaced By: A0139971282
245
BRACKET ON FILTER
248
HEXAGON HEAD BOLT FILTER HOUSING TO BRACKET M12X20
251
RUBBER MOUNTING AIR CLEANER TO SUBSTRUCTURE
254
WASHER
