Поз.
Артикул
Описание

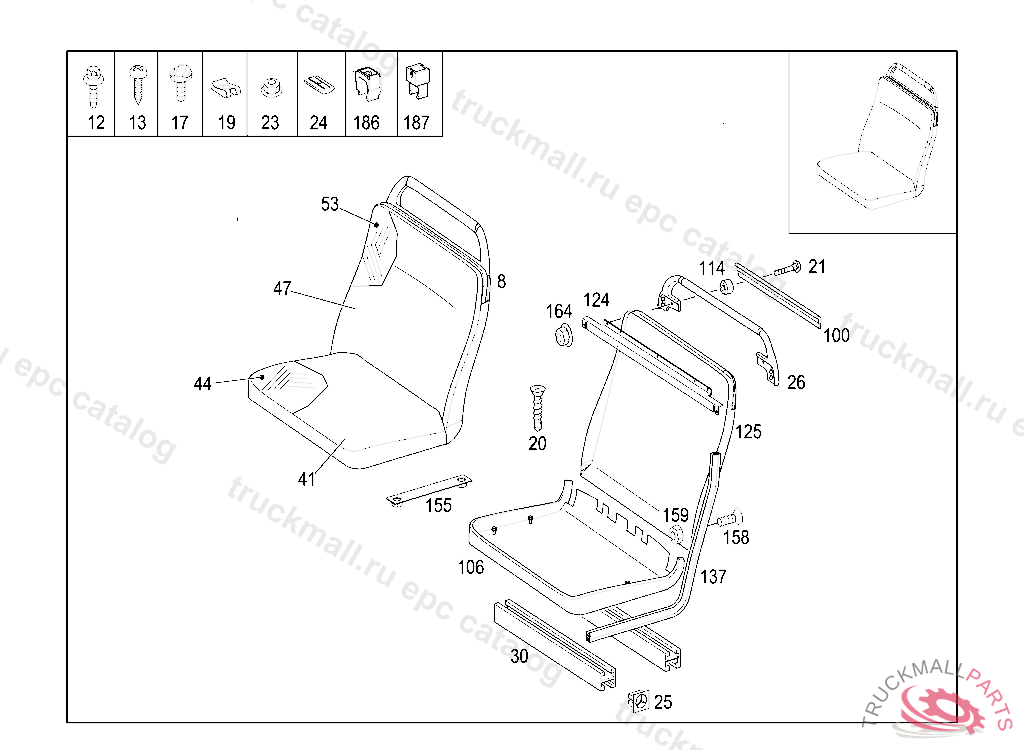

8
SINGLE OCCUPANCY SEAT ONE-AND-A-HALF-PERSON SEAT,WITH GRAB HANDLE, TO BE ORDERED ONLY ON COMMISSION AND INDICATING ALSO ALL THE VEHICLE DATA REQUIRED
12
SCREW BRACKET TO SIDE MEMBER M8X20
12
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
12
HEXALOBULAR BOLT SUPPORT TO CRANKCASE M8X20
12
HEXAGON HEAD BOLT. SCREW BRACKET MOUNTING M8 X 30
12
HEXALOBULAR BOLT CLAMP ON BRACKET M8X45
13
TAPPING SCREW MOUNTING, HANDLE MBN 10169-ST3.5X19-R
17
SLOTTED SCREWM 8X42
17
SCREWM8X22
19
NUT RETAINER , Replaced By: A0019944745
20
SCREW SEAT MOUNTING 3,9X22
21
SCREW FASTENING FOR LINING M5X30, .......I.......INO.7E87I.......I II
23
NUT HORN TO BRACKET M8
23
NUT HINGE LEVER TO MOUNTING
24
SLIDE
24
PLATE
25
EDGE GUARD SECTION
26
BACKREST BRACKET PASSENGER SEAT, ONE-AND-A-HALF SEAT, .......I.......INO.7E87I.......I II
30
RAIL SINGLE SEAT 441 MM
30
RAIL
30
RAIL DOUBLE SEAT 850 MM
30
RAIL SINGLE SEAT 420 MM
30
RAIL DOUBLE SEAT 890MM
30
RAIL PASSENGER SEAT, ONE-AND-A-HALF SEAT 705 MM
41
SEAT CUSHION HANDICAPPED SEAT,RIGHT EXTRA WIDE 450MM, TO BE ORDERED ONLY ON COMMISSION AND INDICATING ALSO ALL THE VEHICLE DATA REQUIRED
41
SEAT CUSHION SEAT FOR HANDICAPPED PERSON,LEFT EXTRA-WIDE, TO BE ORDERED ONLY ON COMMISSION AND INDICATING ALSO ALL THE VEHICLE DATA REQUIRED
41
SEAT CUSHION
41
SEAT CUSHION REAR SINGLE SEATS TO A6289400201, TO BE ORDERED ONLY ON COMMISSION AND INDICATING ALSO ALL THE VEHICLE DATA REQUIRED
41
SEAT CUSHION
41
SEAT CUSHIONTO A6289401801 / ... 02001 / ... 02101, TO BE ORDERED ONLY ON COMMISSION AND INDICATING ALSO ALL THE VEHICLE DATA REQUIRED
41
SEAT CUSHION SINGLE OCCUPANCY SEAT
41
SEAT CUSHION
41
SEAT CUSHION
44
COVER
44
COVERTO A6289405421, TO BE ORDERED ONLY ON COMMISSION AND INDICATING ALSO ALL THE VEHICLE DATA REQUIRED
44
COVERTO A6289402521
44
COVERTO A6289400021
44
COVERTO A6289400721
44
COVER , TO BE ORDERED ONLY ON COMMISSION AND INDICATING ALSO ALL THE VEHICLE DATA REQUIRED
44
COVER
47
BACKREST REAR SINGLE SEATS, NUR KOMMISSIONSWEISE UNTER ANGABE ALLER ERFORDERLICHEN FAHRZEUGDATEN BESTELLEN
47
BACKREST SINGLE OCCUPANCY SEAT
47
BACKREST
47
BACKREST SINGLE OCCUPANCY SEAT
47
BACKREST
47
BACKREST
47
BACKREST SINGLE OCCUPANCY SEAT
47
BACKREST
47
BACKREST
47
BACKREST PASSENGER SEAT, ONE-AND-A-HALF SEAT, TO BE ORDERED ONLY ON COMMISSION AND INDICATING ALSO ALL THE VEHICLE DATA REQUIRED
47
BACKREST
47
BACKREST SINGLE OCCUPANCY SEAT
53
COVERTO A6289403121, TO BE ORDERED ONLY ON COMMISSION AND INDICATING ALSO ALL THE VEHICLE DATA REQUIRED
53
COVER
53
COVERTO A6289400631 / A6289400931
53
COVER
53
COVER
53
COVERTO A6289400031
53
COVERTO A6289400731 / A6289401531
53
COVERTO A6289400831 / A6289401231
53
COVER COVER TO BACKREST TO 6289400631
100
PANELLING PASSENGER SEAT, ONE-AND-A-HALF SEAT, .......I.......INO.7E87I.......I II
106
SEAT SHELL PASSENGER SEAT, ONE-AND-A-HALF SEAT, .......INO.7E86I.......I.......I II
114
BUSHING FASTENING FOR LINING
125
BACKREST FRAME
125
BACKREST FRAME
125
BACKREST FRAME
125
BACKREST FRAME
125
BACKREST FRAME SINGLE OCCUPANCY SEAT TO A6289400931
125
BACKREST FRAME SINGLE OCCUPANCY SEAT TO A6289400731
125
BACKREST FRAME
125
BACKREST FRAME
125
BACKREST FRAME
125
BACKREST SHELL PASSENGER SEAT, ONE-AND-A-HALF SEAT, .......INO.7E86I.......I.......I II
155
PLATEM8150/170 MM
155
PLATE
164
NUT RELAY TO BRACKET M5
186
BRACKET
187
BRACKET
999
SUPPORT SEAT FRAMEWORK
