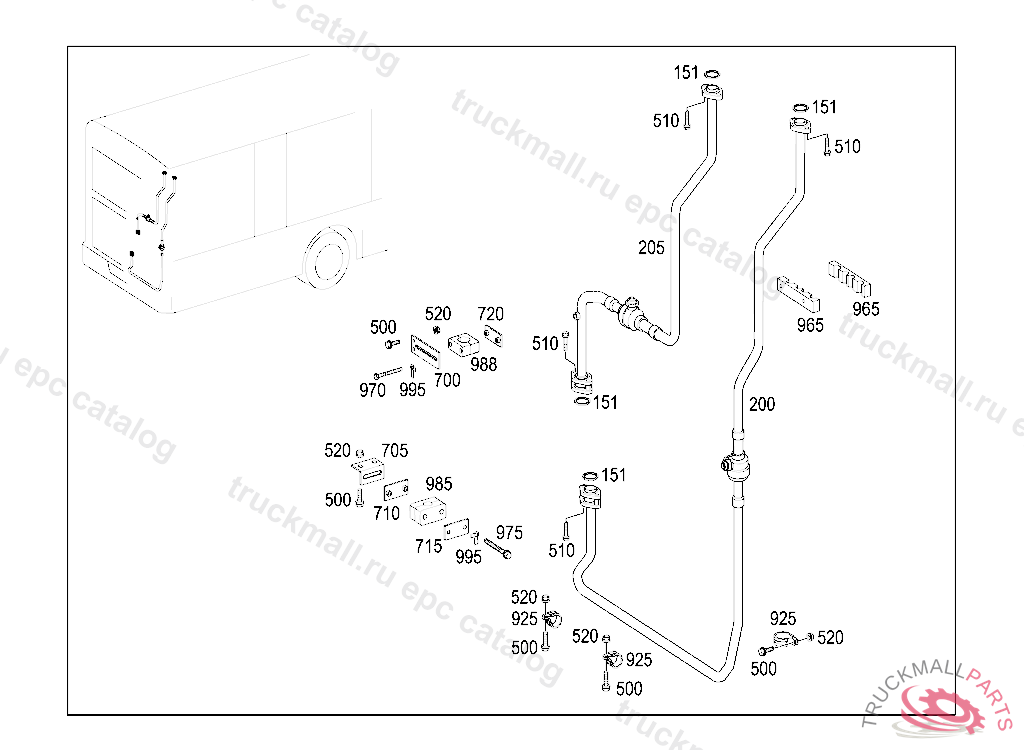

O 530 N3 EURO 3 - 628.045 - 83 HEATING AND VENTILATION
Поз.
Артикул
Описание
151
GASKET34X42 MM
200
PIPE LINE
205
REFRIGERANT LINE
500
SCREW BRACKET AND CLAMP M6X20
510
HEXAGON HEAD BOLT BRACKET TO DISTRIBUTOR
520
NUT BRACKET TO FIRE WALL
700
BRACKET
705
BRACKET
710
TRAY
715
PLATE30MM
720
TRAY
925
MOUNTING CLAMP28/15
925
CLAMP28/15, Replaced By: A0019951842
925
CLAMP CABLE HARNESS MOUNTING
965
BRACKET
970
SCREW BRACKET TO CROSS MEMBER
975
SCREW BALL COCK TO BRACKET M 6X50
985
RUBBER MOUNTING MOUNTING FOR PRESSURE AND RETURN LINE 28MM
985
RUBBER MOUNTING LINE MOUNTING 22 MM
988
RUBBER MOUNTING
995
LOCK
