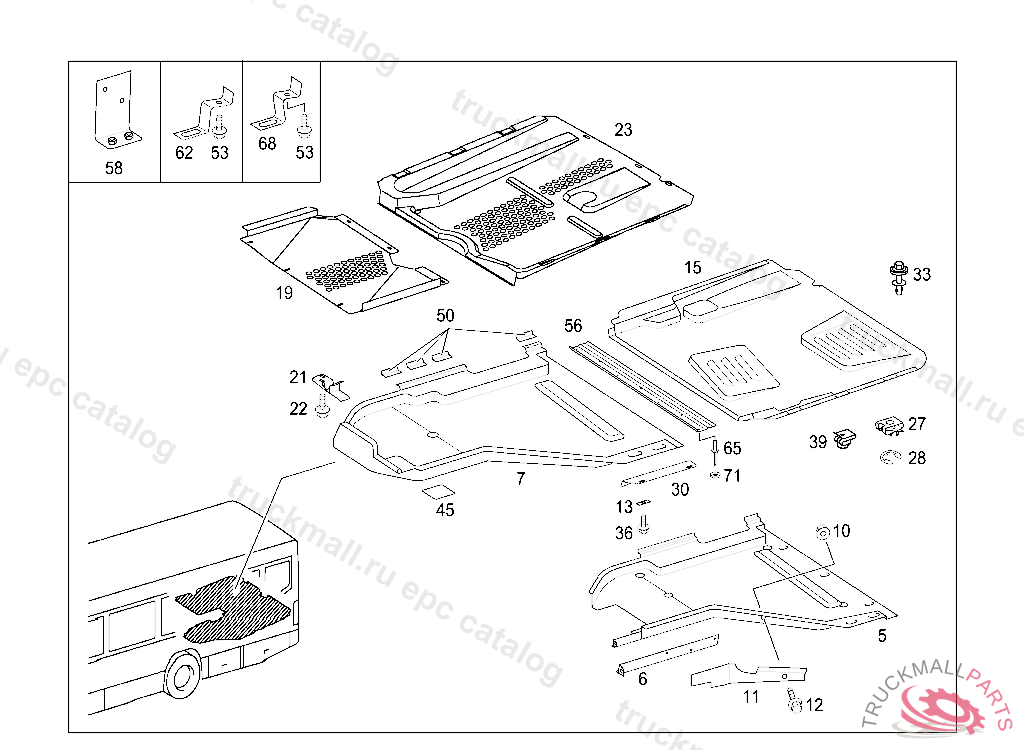

O 530 N3 EURO 3 - 628.045 - 68 COVERING AND LINING
Поз.
Артикул
Описание
5
COVERING LEFT FRONT
6
BRACKET
7
COVERING LEFT FRONT
10
HEXAGON NUT. NUT ELECTRIC CABLE TO ALTERNATOR
11
MOUNTING
12
HEXAGON HEAD BOLT. SCREW BATTERY MOUNTING M5X12
13
SHIM RADIATOR TO SUBSTRUCTURE
15
COVERING LEFT REAR
21
BRACKET
21
BRACKET
23
COVERING RIGHT REAR
27
MOUNTING PLATE. RETAINING CAM
30
ANGLE
33
LOCKING PIN. GUIDE
39
LOCK NUT. SPRING NUT STEP TO ENTRANCE
39
LOCK NUT. SPRING NUT MOUNTING PARTS
45
PLATE
50
EDGE GUARD SECTION
53
SCREW BRACKET AND CLAMP M6X20
56
BRACKET
58
BRACKET
62
BRACKET
68
BRACKET
