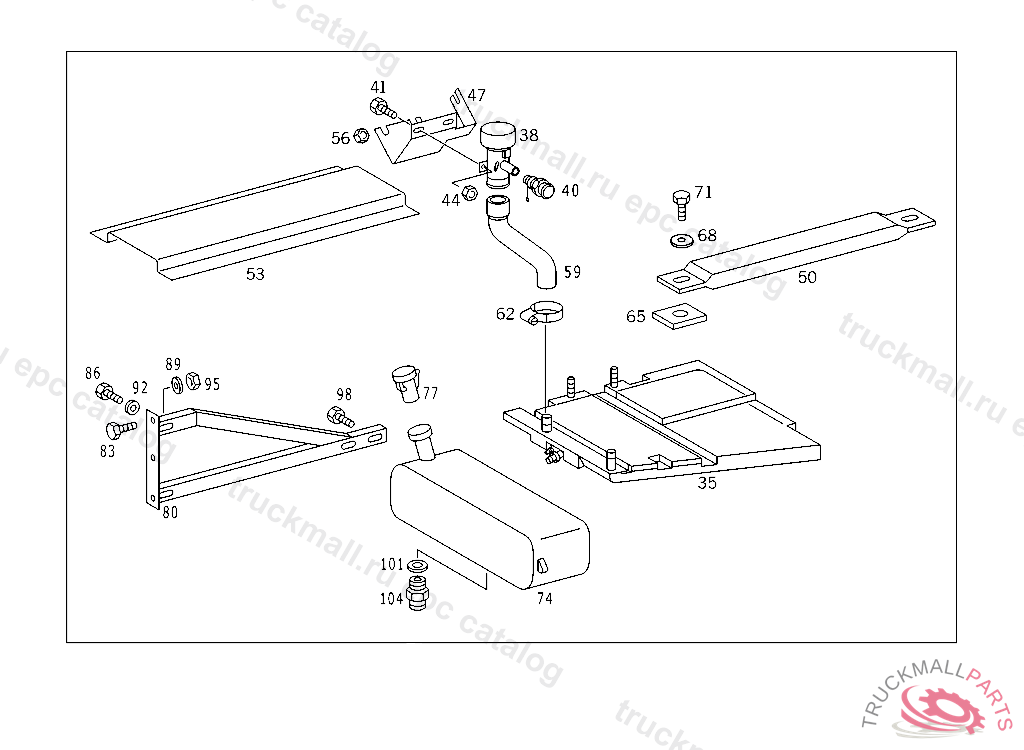

O 530 GNUE3 EURO 2 - 628.201 - 47 FUEL SYSTEM
Поз.
Артикул
Описание
74
FUEL TANK (FUEL-OIL TANK) 50 L
77
FILLER CAP , TO BE ADAPTED DURING ASSEMBLY
80
SUPPORT FUEL-OIL TANK
83
SCREW8X110 MM
86
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
89
WASHER , Replaced By: N009021008213
92
WASHER RADIATOR TO RUBBER MOUNTING
92
WASHER GROUND CABLE
95
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
98
SCREW PIPE CLAMP
101
SEAL RINGTO 000 553 03 05,000 553 18 05,
104
FITTING FUEL-OIL TANK
999
HOLLOW SCREW
